8210i03.00A500

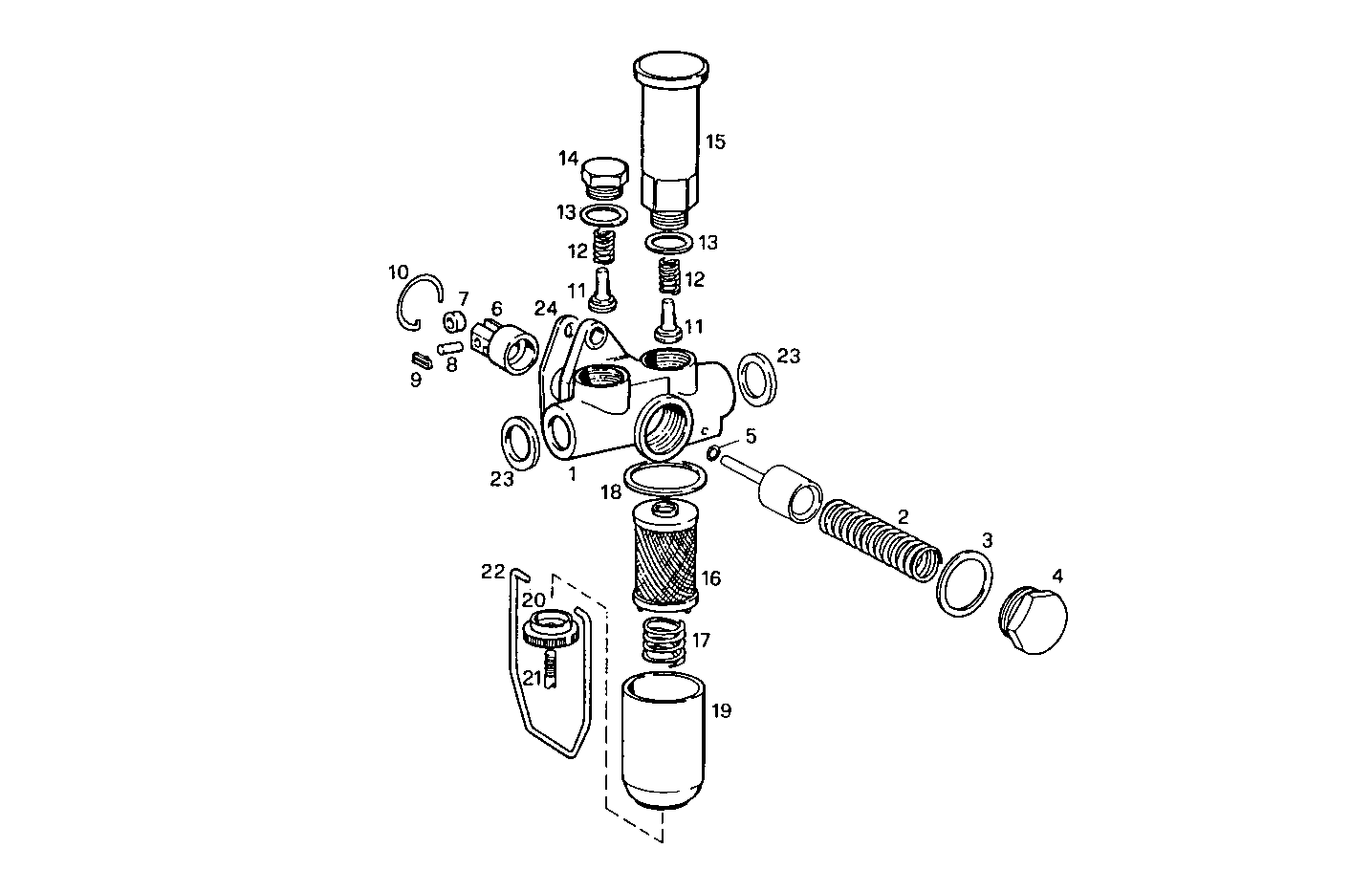

2040.007 FUEL PUMP (COMPONENTS)
| Item |
Part number |
Description |
|
1 |
772100 |
SUPPORT |
|
2 |
772158 |
SPRING |
|
3 |
772115 |
GASKET |
|
4 |
772116 |
PLUG |
|
5 |
772117 |
O-RING |
|
6 |
772119 |
ROLLER TAPPET |
|
7 |
772121 |
ROLLER |
|
8 |
772122 |
PIN |
|
9 |
772123 |
SLIDING SHOE |
|
10 |
772124 |
CIRCLIP |
|
11 |
772125 |
VALVE |
|
12 |
772127 |
SPRING |
|
13 |
772128 |
WASHER |
|
14 |
772129 |
PLUG |
|
15 |
772102 |
HAND PUMP |
|
16 |
772160 |
EDGE FILTER |
|
17 |
772161 |
SPRING |
|
18 |
772162 |
GASKET |
|
19 |
772163 |
FILTER SHELL |
|
20 |
772164 |
GROOVED NUT |
|
21 |
772165 |
SCREW M8X20 MM |
|
22 |
772166 |
RETAINER |
|
23 |
746152 |
GASKET |
|
24 |
772303 |
GASKET |
