8210i03.00A580

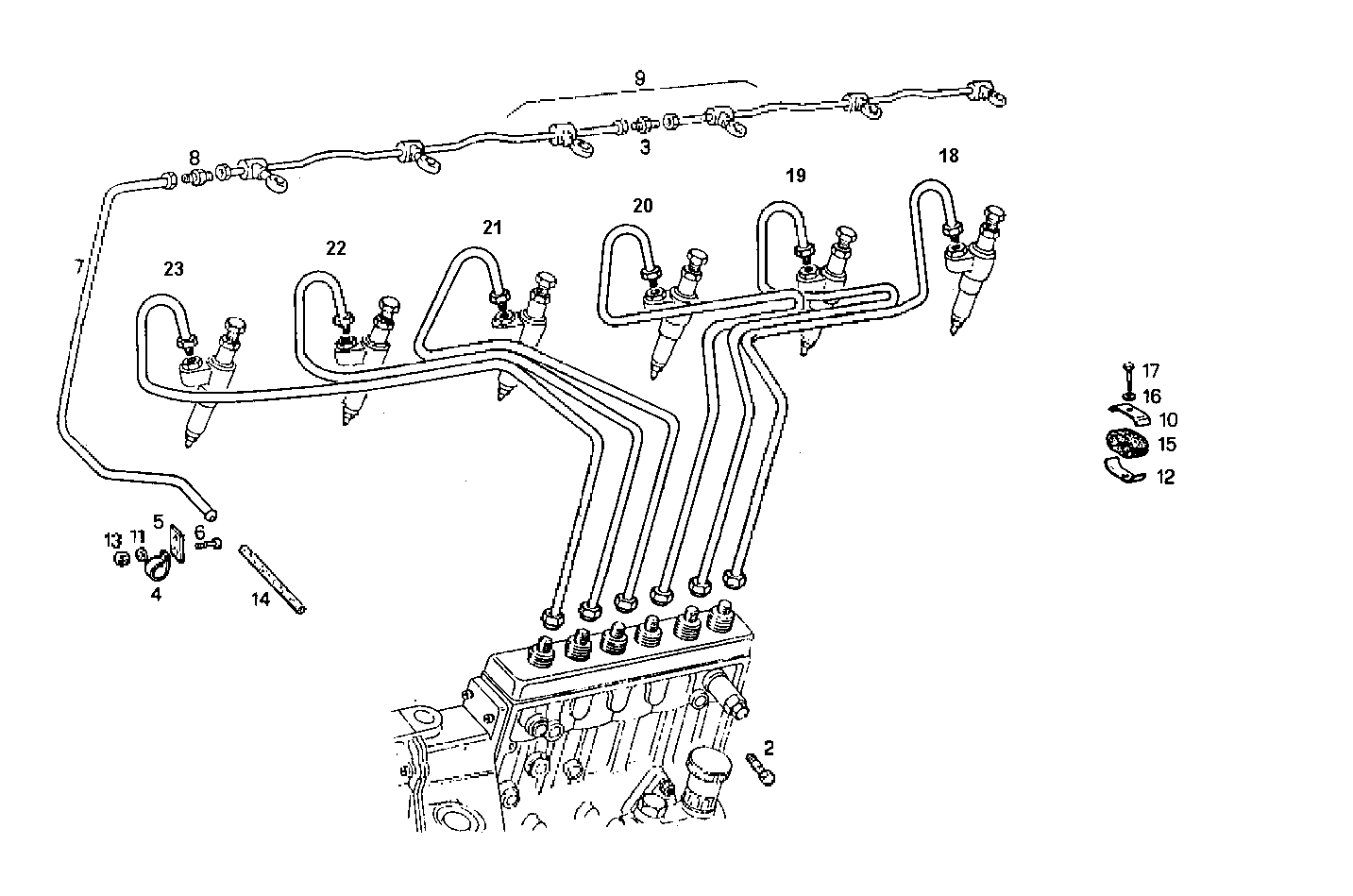

2020.008 INJECTION PIPES
Item |
Part number |
Description |
2 |
8114118 |
SCREW CONNECTOR |
3 |
16501514 |
THREADED UNION |
4 |
10450090 |
PIPE CLIP Ø8 MM |
5 |
4625287 |
RETAINER |
6 |
16605424 |
SCREW M8X16 MM (8.8) |
7 |
4889942 |
FUEL LINE |
8 |
16501611 |
PIPE SOCKET M14X1,5 |
9 |
4810865 |
FUEL LINE ASSY |
10 |
4641873 |
RETAINER BOTTOM |
11 |
17089574 |
WASHER Ø8X16 MM |
12 |
4641874 |
RETAINER TOP |
13 |
17037931 |
HEXAGON NUT M8X1,25 |
14 |
8102291 |
HOSE |
15 |
4592280 |
DOWEL |
16 |
17494631 |
SPRING WASHER Ø5 MM |
17 |
16602224 |
HEXAGON BOLT M5X20 MM |
18 |
4723420 |
INJECTION LINE |
19 |
4723421 |
INJECTION LINE |
20 |
4723422 |
INJECTION LINE |
21 |
4723423 |
INJECTION LINE |
22 |
4723424 |
INJECTION LINE |
23 |
4723425 |
INJECTION LINE |
