8210M22.10

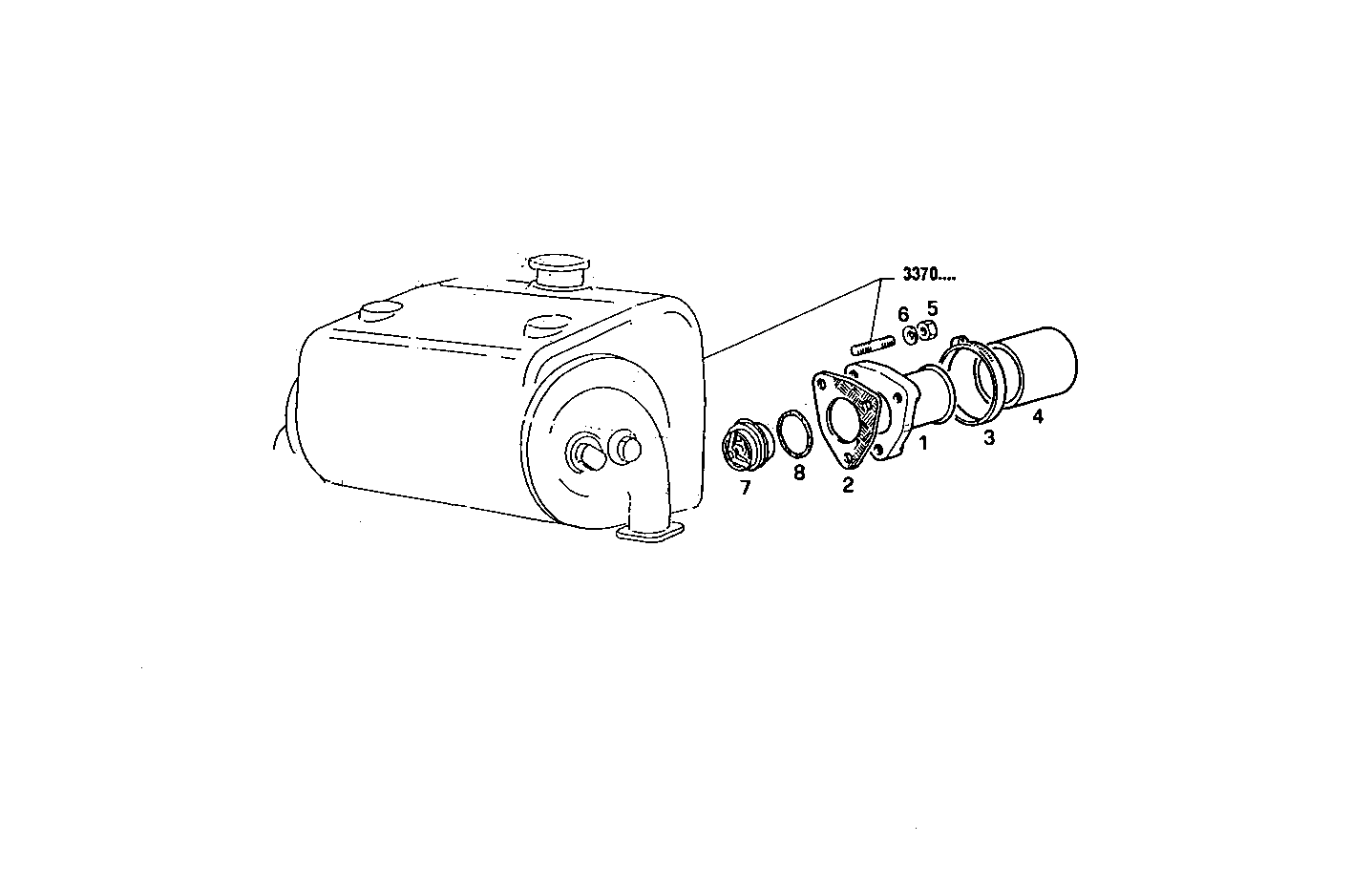

3220.059 THERMOSTAT
| Item | Part number | Description |
|---|---|---|
| 1 | 4918819 | WATER PIPE |
| 2 | 1904829 | FLAT ENGINE GASKET |
| 3 | 17765193 | CLIP Ø70/90 MM |
| 4 | 17746687 | RUBBER SLEEVE |
| 5 | 17037931 | HEXAGON NUT M8X1,25 |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 4919867 | THERMOSTAT |
| 8 | 4619091 | GASKET |
