8210M22.10

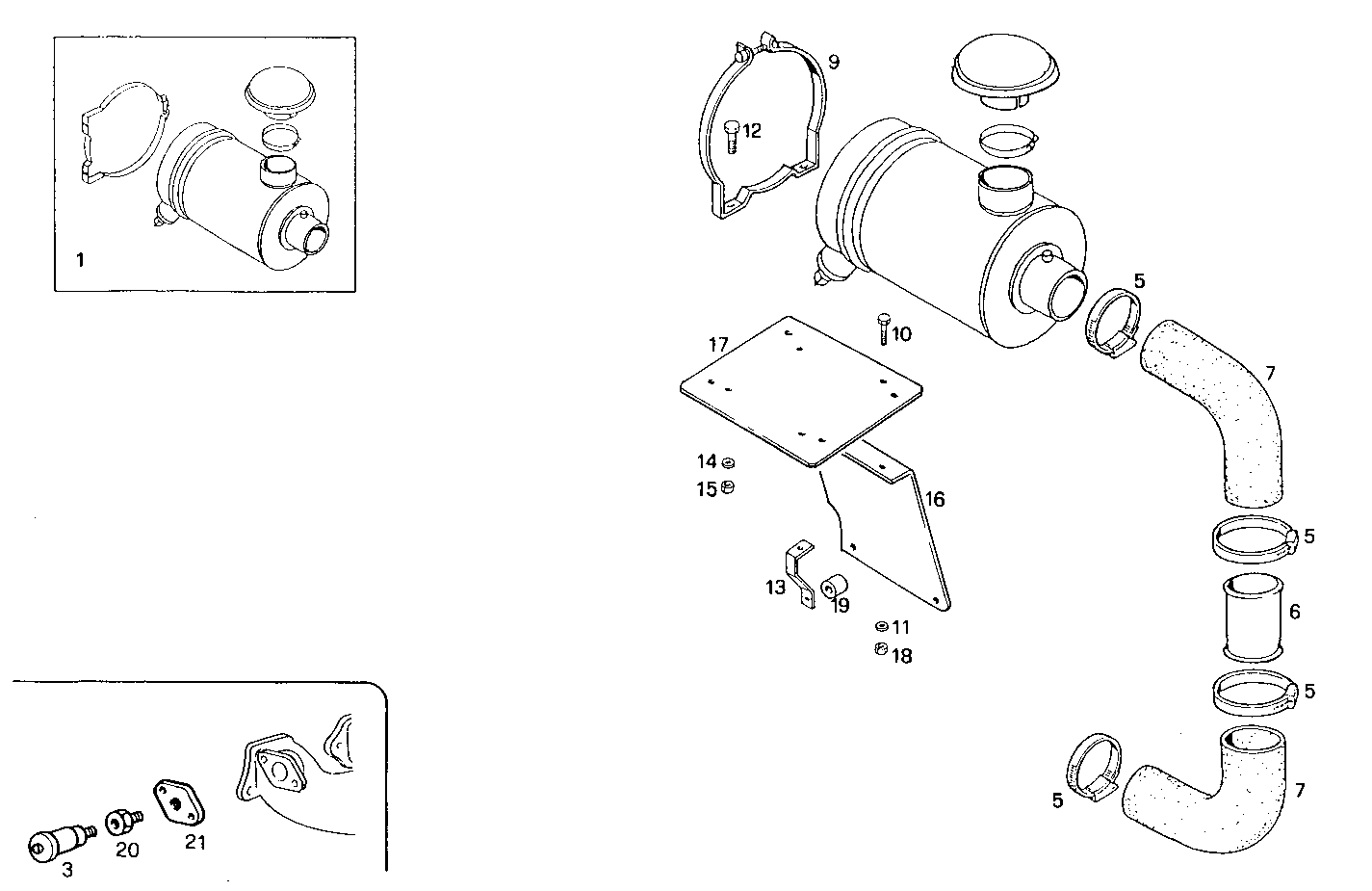

A21210041 DRY AIR CLEANER - with electric clogging gauge - genset
| Item | Part number | Description |
|---|---|---|
| 1 | 8016663 | AIR CLEANER ASSY |
| 3 | 8016910 | CHOCKED FILTER INDIC. OPT. [up to 11-98] |
| 5 | 17765694 | CLIP |
| 6 | 8006313 | AIR PIPE/DUCT |
| 7 | 8006312 | FILTER HOSE |
| 10 | 16607624 | SCREW M10X25 |
| 11 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
| 12 | 16609824 | HEXAGON BOLT M12X1,75X25 MM |
| 13 | 8107871 | RETAINER |
| 14 | 17091374 | SPRING WASHER Ø12X30X3,0 MM |
| 15 | 17038421 | HEXAGON NUT M12 (8) |
| 16 | 8006311 | RETAINER |
| 17 | 8018681 | SUPPORT |
| 18 | 17038121 | HEXAGON NUT M10 |
| 19 | 4930712 | SPACING BAR |
| 20 | 8009522 | PIPE SOCKET |
| 21 | 4627259 | COVER |
