8210M22.10

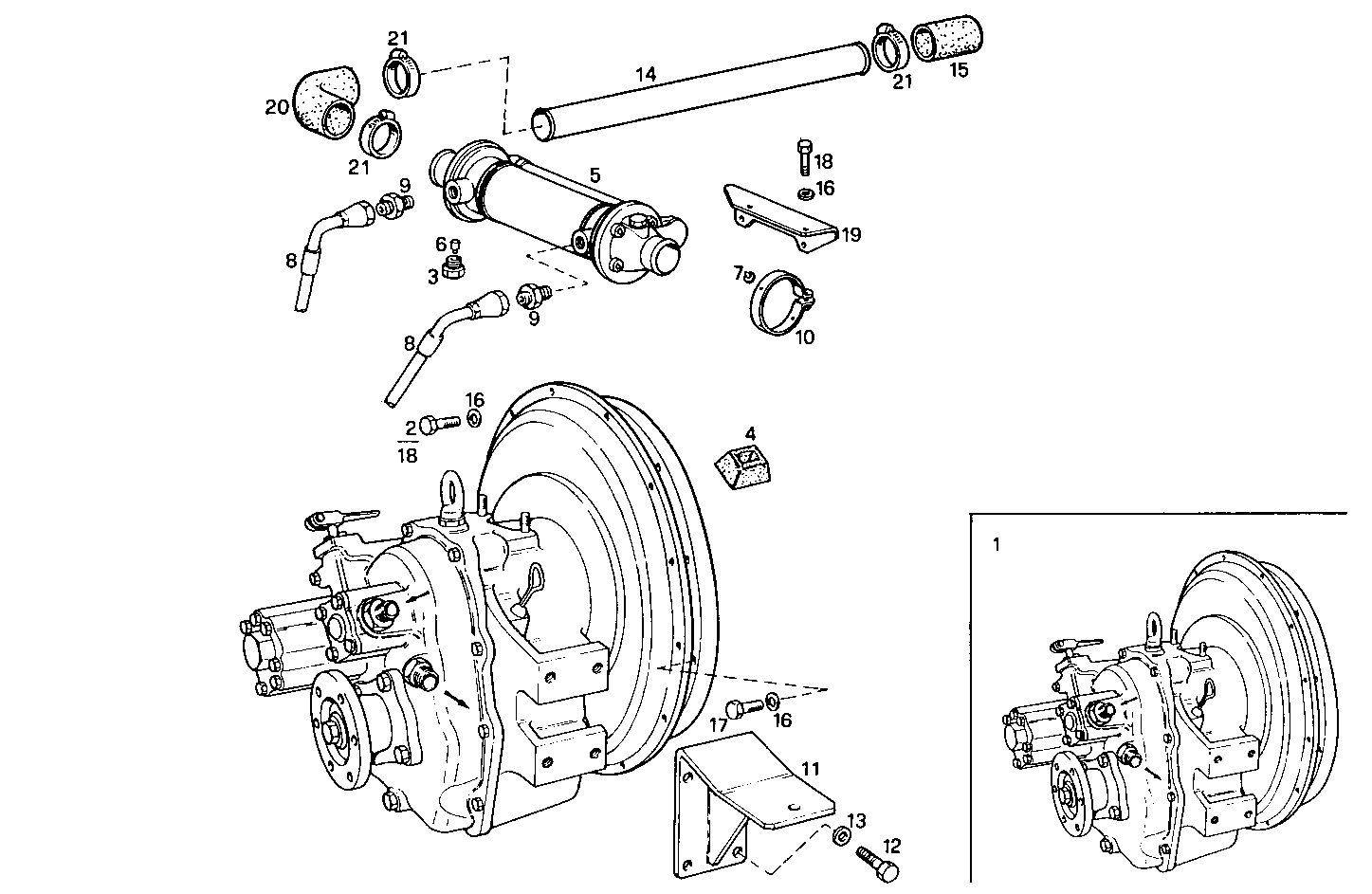

A51680004 MARINE GEAR TECHNODRIVE TM 265 - ratio 2.82:1

Iveco/FPT MARINE GEAR TECHNODRIVE TM 265

Item Part number Description
1 8012544 MARINE GEAR 2,82:1
2 15970924 HEXAGON BOLT M10X1,25X35 MM
3 8105276 PLUG M16
4 4932462 DOWEL
5 8007721 MARINE GEAR OIL HEAT EXCH
6 8105277 SACRIFICAL ANODE Ø14 MM
7 4565875 RUBBER PAD
8 8105619 HOSE
9 4932262 PIPE SOCKET
10 8111020 CLAMP
11 8012555 SUPPORT
12 16614524 HEXAGON BOLT M16X35 MM
13 17092174 SPRING WASHER Ø16X32X3,4
14 8012590 SEA WATER PIPE
15 4919165 WATER HOSE
16 17090174 SPRING WASHER Ø10X20 MM
17 15541024 HEXAGON BOLT M12X60 MM
18 11306924 HEXAGON BOLT M10X1,25X30 MM
19 8011777 SUPPORT
20 8110487 WATER HOSE
21 17764993 CLIP Ø50/70 MM
