8210M22.10

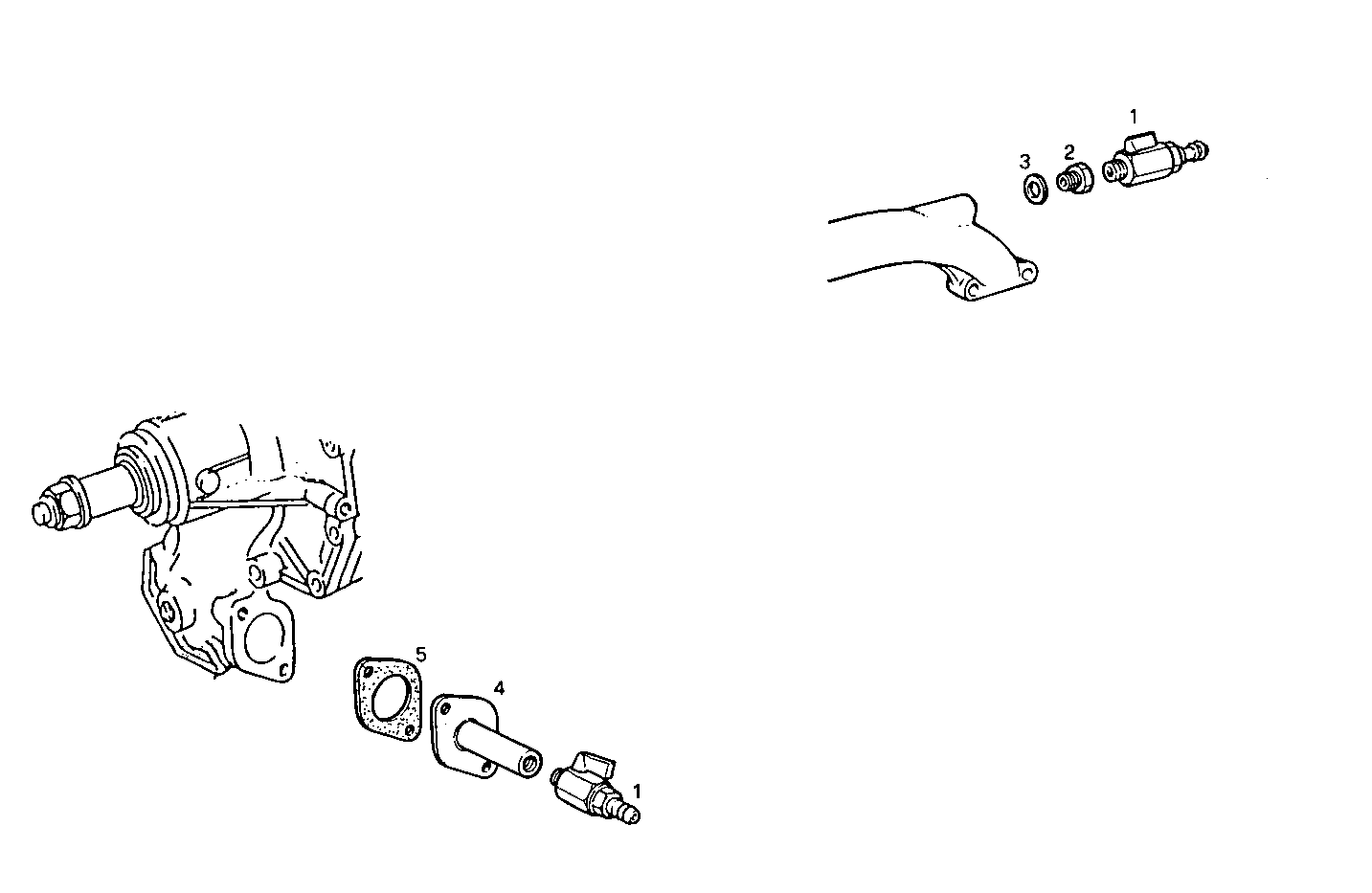

A80000021 PREARRANGEMENT FOR CALORIFIER - with cocks [D 02-1993] [from02-1993]
| Item | Part number | Description |
|---|---|---|
| 1 | 8113932 | DRAIN COCK |
| 2 | 8005151 | PIPE SOCKET M24X1,5/M16X1,5 |
| 3 | 98429281 | SEAL GASKET Ø24X31 MM SP=1,5 MM |
| 4 | 8015250 | FLANGE |
| 5 | 4864028 | FLAT ENGINE GASKET |
