8210M22.30

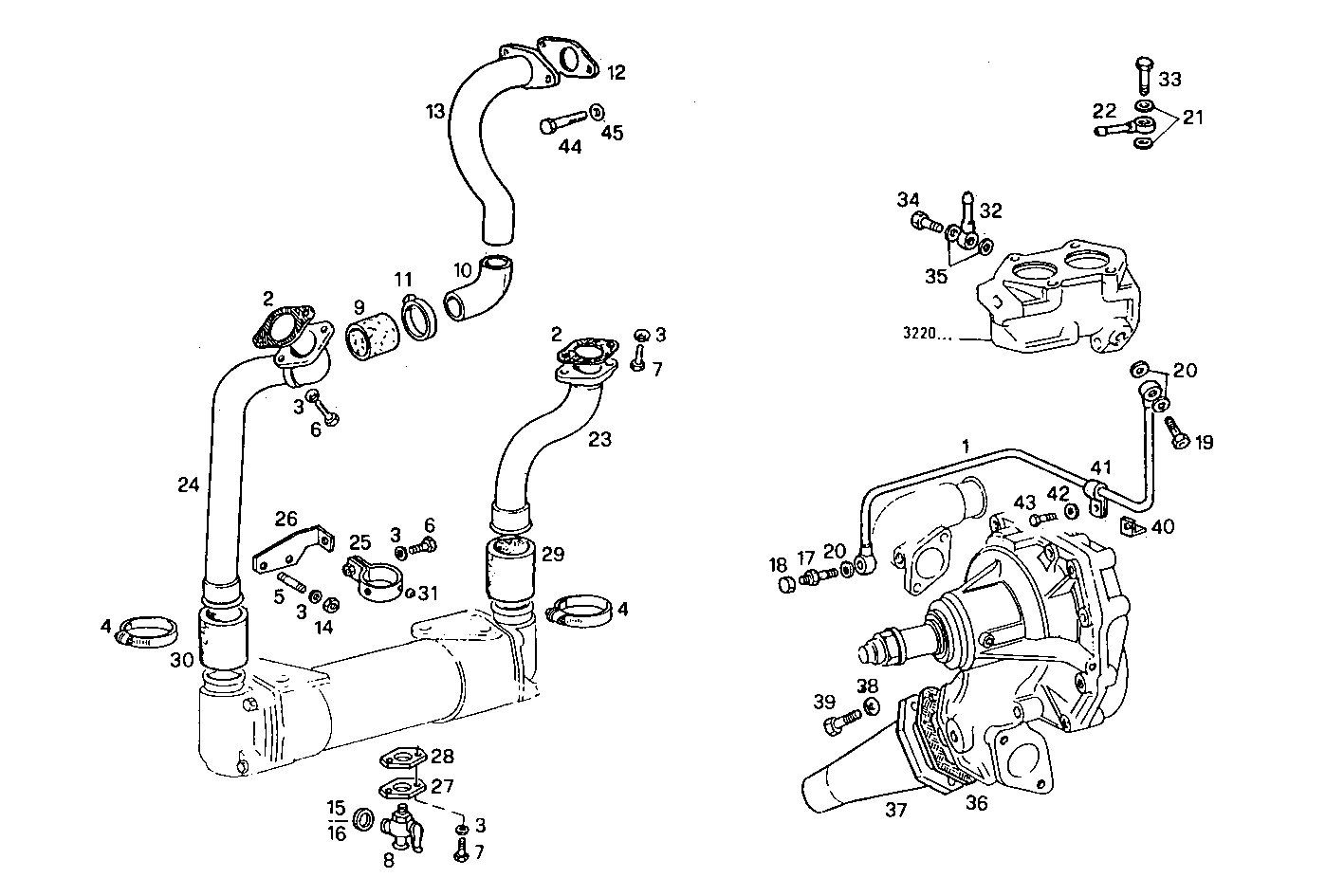

3210.056/02 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 4966846 WATER PIPE
2 4863951 FLAT ENGINE GASKET
3 17089574 WASHER Ø8X16 MM
4 17764792 HOSE CLIP Ø32-50 MM
5 16729224 STUD M8X16 MM
6 16605734 HEXAGON BOLT M8X30 MM
7 16605624 HEXAGON BOLT M8X25 MM (8.8)
8 10849090 DRAIN COCK
9 8110617 RUBBER SLEEVE
10 4919714 WATER HOSE
12 4918835 GASKET
13 8114097 WATER PIPE
14 17037931 HEXAGON NUT M8X1,25
15 10278460 SEAL GASKET Ø16X22 MM SP=0,3 MM
16 10278560 SEAL GASKET Ø16,2 MM
17 8012402 SCREW CONNECTOR
18 10183317 LOCK PLUG M16X1,5
20 4858609 WASHER Ø16X22 MM SP=1,5 MM
21 4858607 WASHER Ø12X17 MM SP=1,5 MM
22 98434018 THREADED UNION
23 4654000 WATER PIPE
24 8114104 WATER PIPE
25 4640545 CLIP
26 4830268 FASTENING BRACKET
27 4872744 COVER
28 4863948 FLAT ENGINE GASKET
29 4787290 WATER HOSE
30 98421381 WATER HOSE
31 4565875 RUBBER PAD
32 4671701 SWIVEL COUPLING
33 8009696 SCREW CONNECTOR M12X1,5X25
34 8015164 SCREW CONNECTOR
35 10284460 SEAL GASKET Ø10X16 MM
36 98451498 FLAT ENGINE GASKET
37 98450711 WATER PIPE
38 17090274 WASHER Ø10X20 MM
39 15004021 HEXAGON BOLT M10X1,25X25 MM
40 4617086 RETAINER
41 10441190 PIPE CLIP Ø8 MM
42 17088474 WASHER Ø6X12 MM
43 10979430 SCREW M6X10 MM
44 16605524 HEXAGON BOLT M8X20 MM
45 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
