8210M22.30

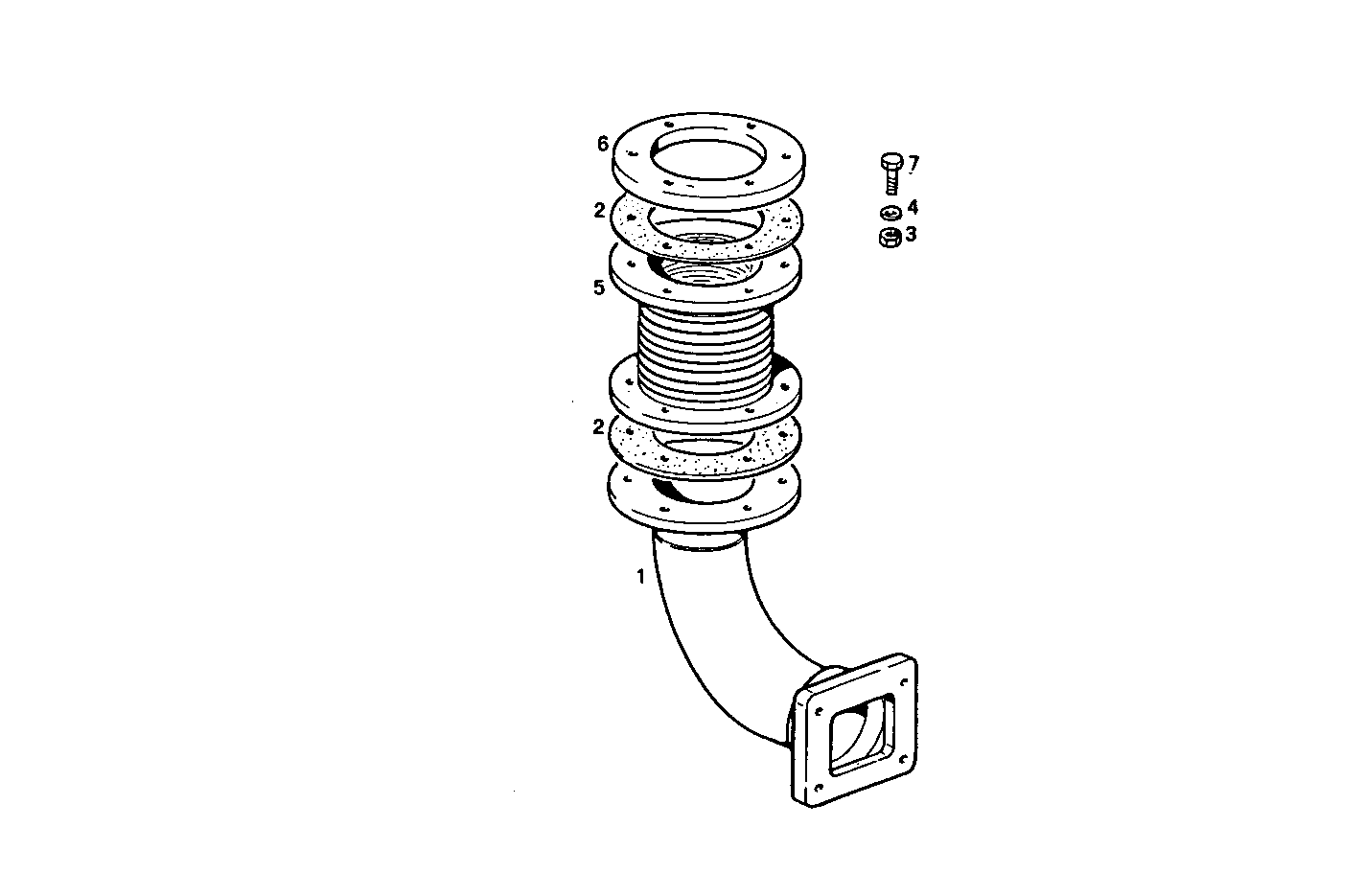

A40030002 UPWARD REAR EXHAUST ELBOW
| Item | Part number | Description |
|---|---|---|
| 1 | 8103727 | EXHAUST ELBOW |
| 2 | 8009639 | GASKET |
| 3 | 12164711 | HEXAGON NUT M10X1,25 |
| 4 | 11198371 | SPRING WASHER Ø10X20 MM |
| 5 | 4918541 | EXHAUST BELLOWS |
| 6 | 4917113 | FLANGE |
| 7 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
