8210M22.30A001

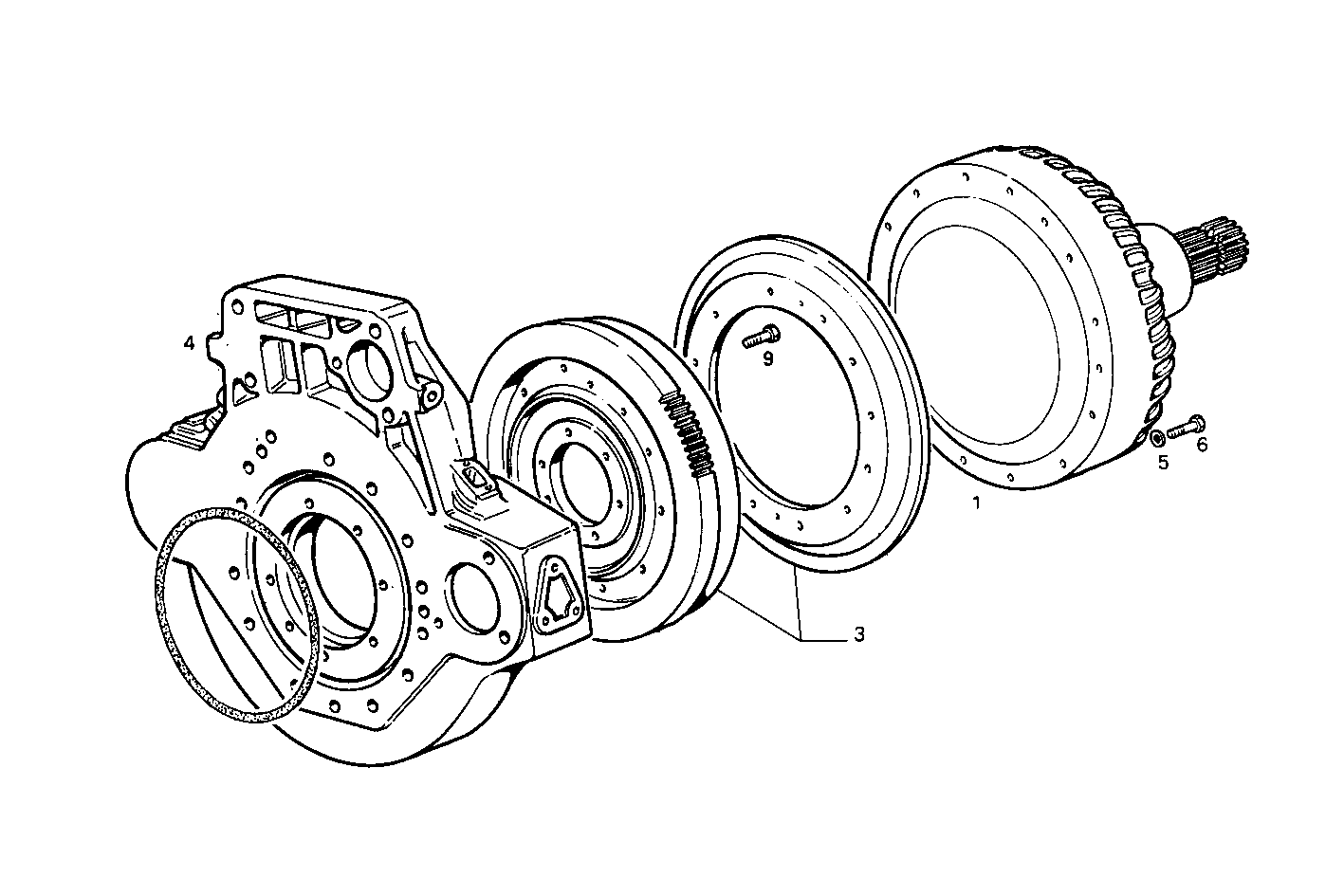

A43010002 HYDRAULIC COUPLING MIOTTO
| Item | Part number | Description |
|---|---|---|
| 1 | 8025983 | SLIP CLUTCH |
| 3 | 4929110 | FLYWHEEL |
| 4 | 4928264 | SUPPORT |
| 5 | 17800574 | SPRING WASHER Ø10,5X21 MM |
| 6 | 16693224 | SCREW M10X1,5X90 MM [from 01-96] |
| 9 | 500391539 | HEXAGON BOLT M16X1,5 |
