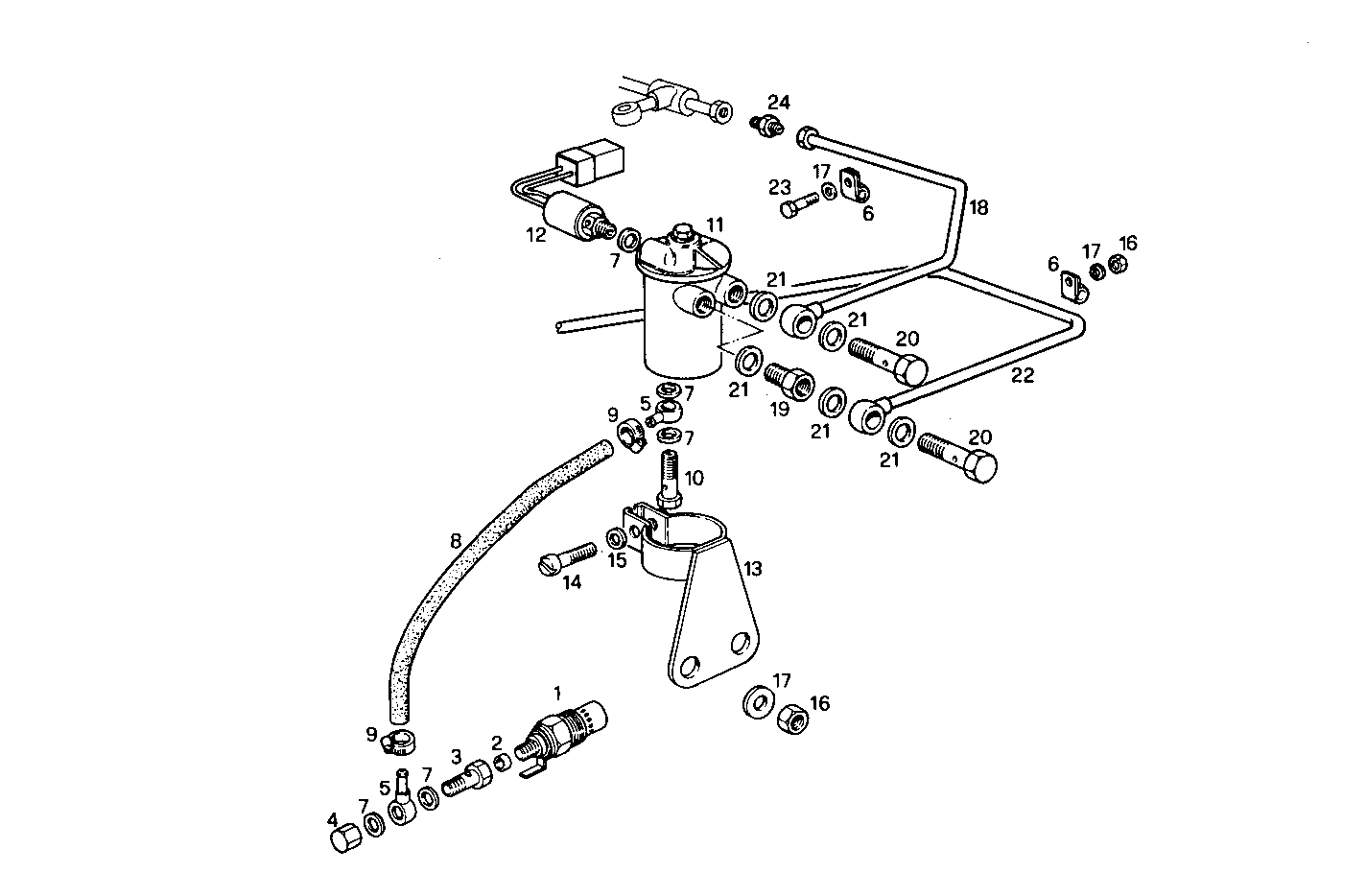

| Item |
Part number |
Description |
|
1 |
4232052 |
THERMO-STARTER |
|
2 |
4557649 |
WASHER |
|
3 |
4551101 |
SCREW CONNECTOR |
|
4 |
11902017 |
LOCK PLUG M8 |
|
5 |
4647661 |
SWIVEL COUPLING |
|
6 |
10540090 |
RETAINER |
|
7 |
4858605 |
WASHER Ø8X12 MM |
|
8 |
4617014 |
HOSE |
|
9 |
12178990 |
CLIP |
|
10 |
11903717 |
SCREW CONNECTOR M8 |
|
11 |
4815431 |
TANK FOR PREHEATER |
|
12 |
98414208 |
ELECT.V.VE.PREHEAT |
|
13 |
8108403 |
RETAINER |
|
14 |
10389811 |
SCREW M5X20 |
|
15 |
11195470 |
SPRING WASHER Ø5,3 MM |
|
16 |
17037931 |
HEXAGON NUT M8X1,25 |
|
17 |
11198071 |
SPRING WASHER Ø8X15 SP=1,4 MM |
|
18 |
4821084 |
FUEL LINE |
|
19 |
4802434 |
THREADED UNION M12X1,5 |
|
20 |
10181717 |
SCREW CONNECTOR M12X1,5X23 |
|
21 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
22 |
4820908 |
FUEL LINE |
|
23 |
16043221 |
HEXAGON BOLT M8X16 MM |
|
24 |
16501611 |
PIPE SOCKET M14X1,5 |
