8210Si02.00

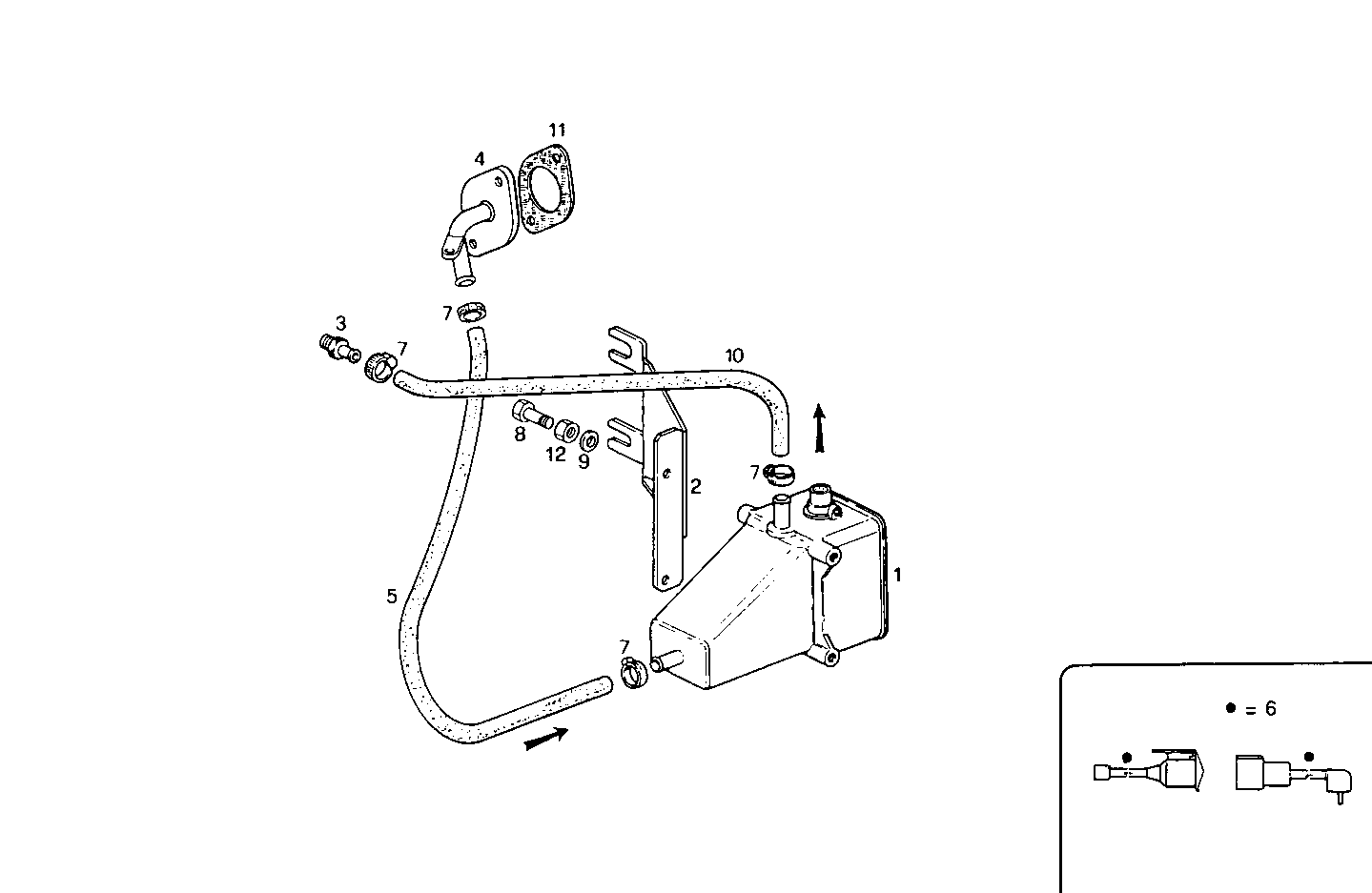

A20040010 WATER PREHEATER DEVICE - 220V

Iveco/FPT WATER PREHEATER DEVICE - 220V

Item Part number Description
1 8011642 HEATER 1500W
2 8009588 SUPPORT
3 4616630 THREADED UNION
4 8006863 FLANGE
5 8009586 WATER HOSE
6 8009376 WIRE/CABLE ASSY
7 17764492 CLIP Ø16-25 MM
8 10902021 HEXAGON BOLT M6X12 MM
9 11197779 SPRING WASHER Ø6X12 MM
10 8006868 WATER HOSE
11 4863947 FLAT ENGINE GASKET
12 15896211 HEXAGON NUT M6
