8210Si02.00

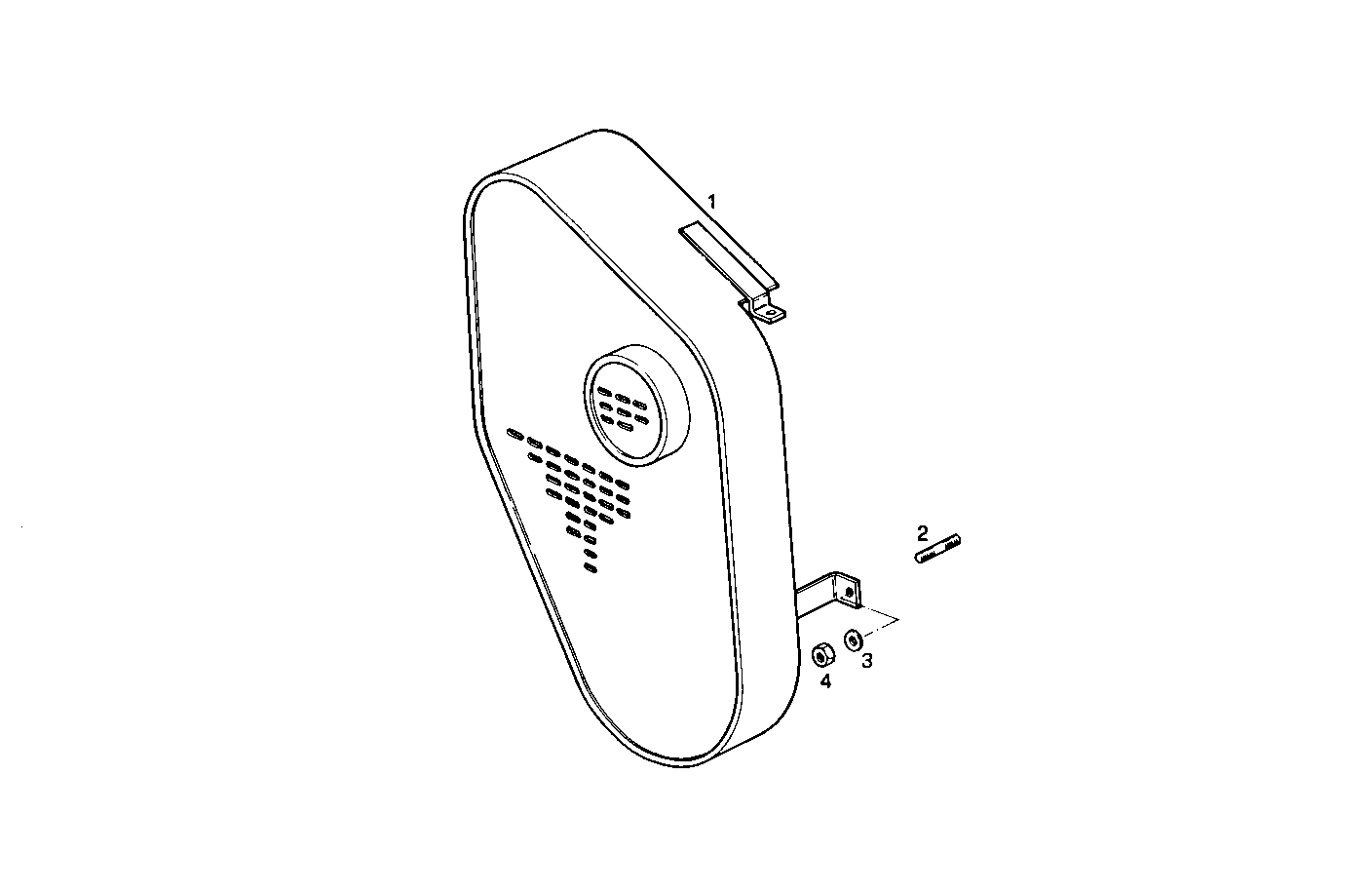

A48020024 GUARD - for pulley/belts
Item | Part number | Description |
---|---|---|
1 | 8019772 | PROTECTION |
2 | 16746524 | STUD M8X16X16 |
3 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
4 | 17037931 | HEXAGON NUT M8X1,25 |
