8210Si15.00

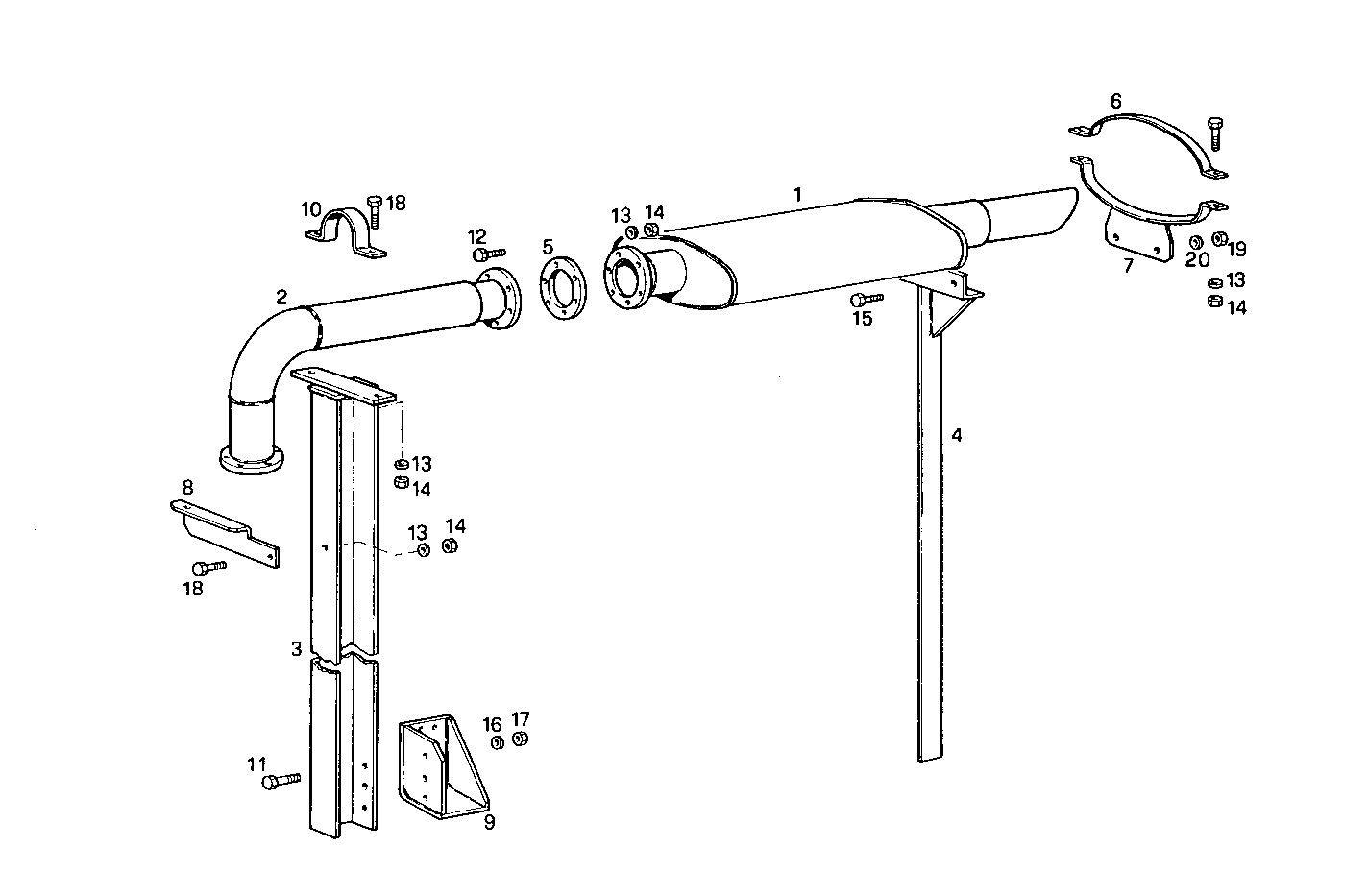

A23040005 HORIZONTAL SILENCER

Iveco/FPT HORIZONTAL SILENCER

Item Part number Description
1 8018579 SILENCER
2 8018603 EXHAUST PIPE
3 8018602 SUPPORT
4 8018604 SUPPORT
5 8009639 GASKET
6 8018594 RETAINER
7 8018595 RETAINER
8 8005054 RETAINER
9 8005052 SUPPORT
10 8005058 RETAINER
11 16612324 HEXAGON BOLT M14X35 MM
12 16607824 HEXAGON BOLT M10X35 MM (8.8)
13 17090174 SPRING WASHER Ø10X20 MM
14 17038121 HEXAGON NUT M10
15 16605624 HEXAGON BOLT M8X25 MM (8.8)
16 17091674 WASHER Ø14X27X3,0 MM
17 17038721 NUT M14X2 [from ...]
18 16607624 SCREW M10X25
19 17037931 HEXAGON NUT M8X1,25
20 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
