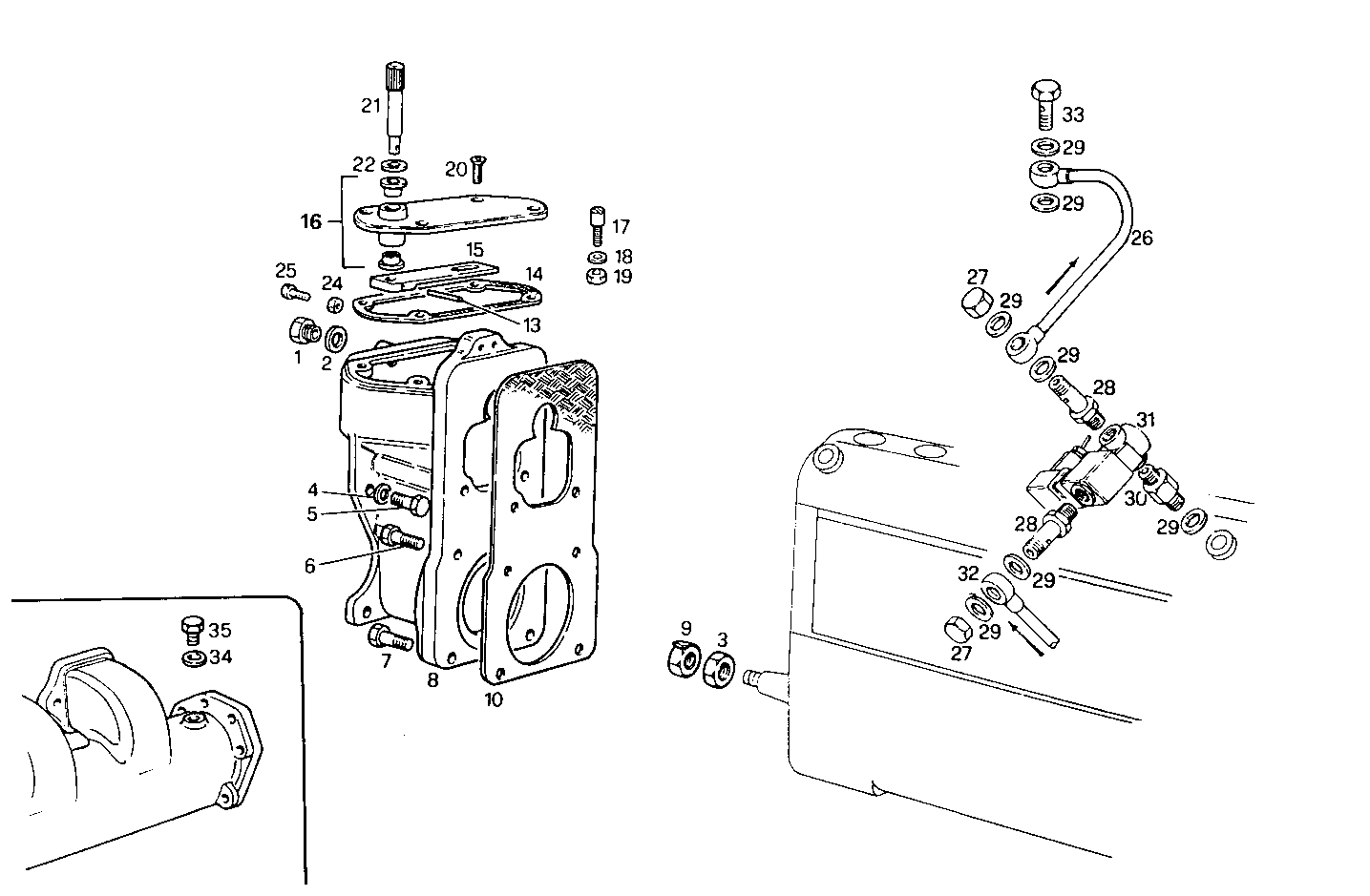

Item |
Part number |
Description |
1 |
10300711 |
LOCK PLUG M16 |
2 |
10278650 |
GASKET Ø16X22X1 MM |
3 |
10717311 |
NUT M12 |
4 |
11197779 |
SPRING WASHER Ø6X12 MM |
5 |
4934404 |
SCREW |
6 |
14303820 |
SCREW M6X60 |
7 |
16689177 |
SOCKET-HEAD SCREW M6X16 MM |
8 |
8007450 |
TIMINGGEAR HOUSIN |
9 |
8108716 |
NUT |
10 |
772578 |
GASKET |
13 |
14158570 |
DOWEL PIN Ø2,3 MM |
14 |
8108602 |
GASKET |
15 |
8108601 |
LEVER |
16 |
8007452 |
COVER ASSY |
17 |
8108604 |
PIN |
18 |
14497801 |
WASHER Ø5X9,5 MM |
19 |
12574111 |
HEXAGON NUT M5 |
20 |
8109360 |
SCREW M5X12 |
21 |
8109731 |
PIN |
22 |
8109732 |
WASHER |
24 |
17037721 |
NUT M5X0,8 |
25 |
8108715 |
SCREW |
26 |
8109317 |
FUEL LINE |
27 |
10182817 |
LOCK PLUG |
28 |
4929627 |
PIPE SOCKET |
29 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
30 |
4929626 |
PIPE SOCKET |
31 |
8108944 |
ELECTROVALVE |
32 |
8109318 |
FUEL LINE |
33 |
4936577 |
SCREW CONNECTOR |
34 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
35 |
10300571 |
PLUG M12X1,5 |
