8210Si15.00A500

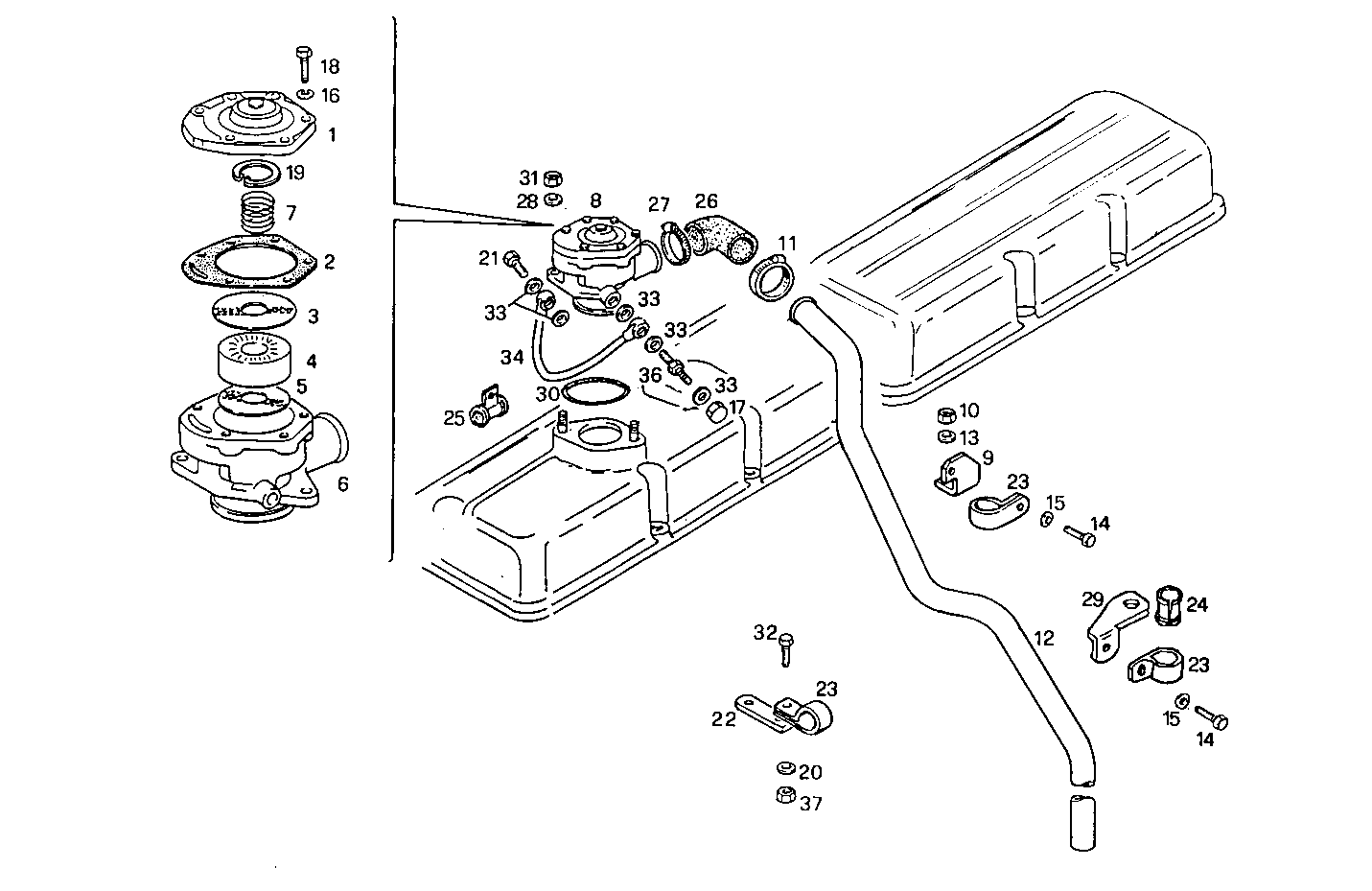

0450.098 ENGINE BREATHERS

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 4771075 COVER
2 4771078 DIAPHRAGM
3 4771080 DISC
4 4771079 FILTER
5 4771081 DISC
6 4774692 BEARING HOUSING
7 4812557 SPRING
8 4816603 BREATHER ASSY
9 4791406 RETAINER
10 17038621 NUT M12
11 17764792 HOSE CLIP Ø32-50 MM
12 4791405 PIPE
13 11198774 WASHER
14 16605424 SCREW M8X16 MM (8.8)
15 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
16 10519401 WASHER Ø6X12 MM
17 11902117 PLUG M10X1,25
18 10902811 HEXAGON BOLT M6X30 MM
19 11062176 CIRCLIP Ø90,5 MM
20 11193274 WASHER Ø6X15 MM SP=1,2 MM
21 11903814 SCREW CONNECTOR M10X1,25X19 MM
22 4814546 RETAINER
23 4760226 FASTENING BRACKET
24 4747140 RUBBER PAD
25 10440990 PIPE CLIP Ø45 MM
26 4776498 RUBBER SLEEVE
27 17764692 CLIP Ø25/40 MM
28 12646704 WASHER Ø8X21X1,5 MM
29 4787181 SUPPORT
30 17289681 O-RING Ø44 MM SP=3,53 MM
31 17037931 HEXAGON NUT M8X1,25
32 10902124 SCREW M6X14 MM
33 10260160 SEAL GASKET Ø10X14 MM SP=1 MM
34 4817892 BREATHER PIPE
36 11901711 SCREW CONNECTOR
37 17037821 HEXAGON NUT M6X1
