8210Si15.00A500

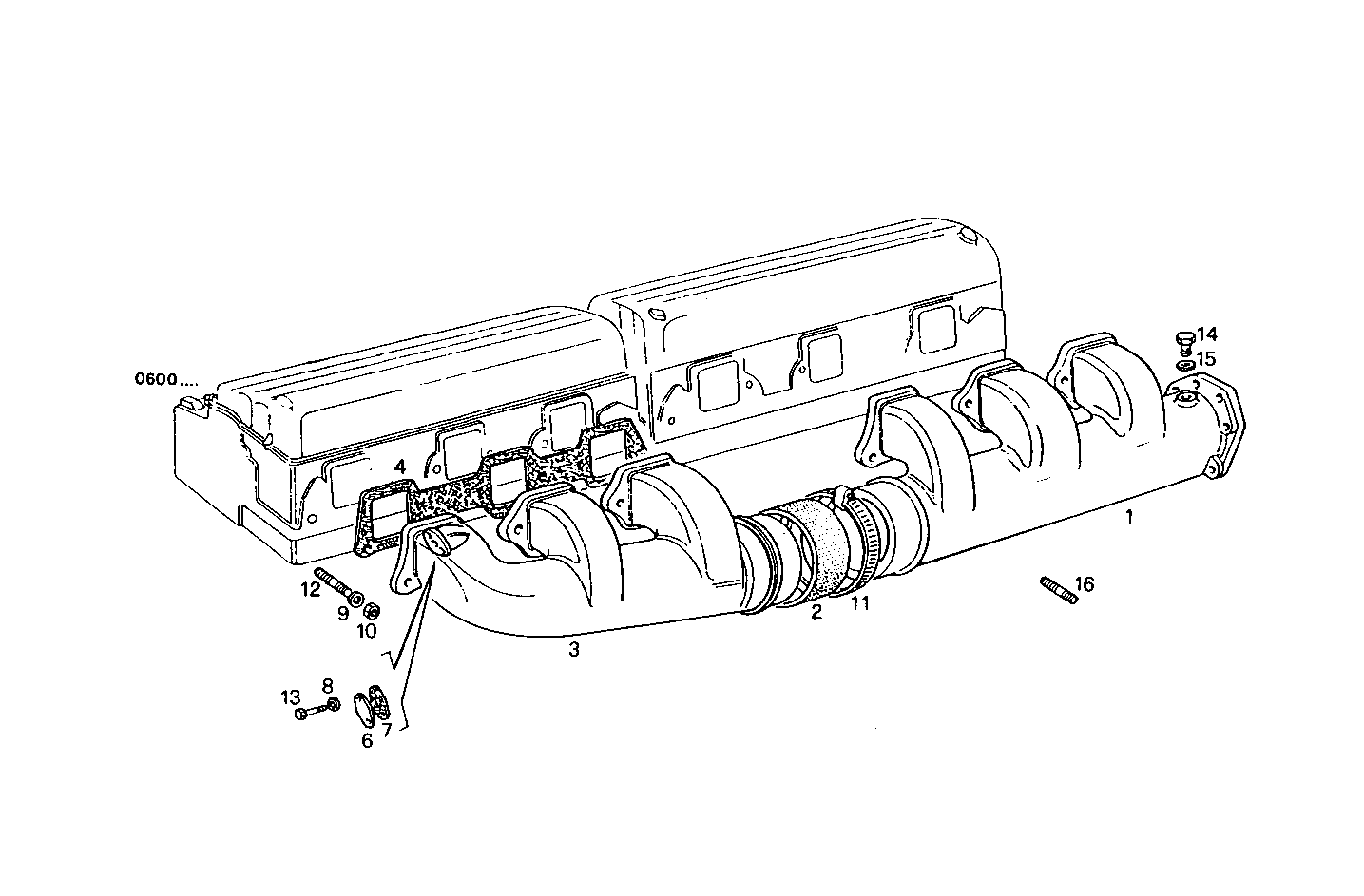

0710.026 INTAKE MANIFOLD

Iveco/FPT INTAKE MANIFOLD

Item Part number Description
1 4693680 INTAKE ELBOW REAR
2 4616297 RUBBER SLEEVE
3 4696558 INTAKE ELBOW FRONT
4 4854653 INTAKE ELBOW GASK.
6 4627259 COVER
7 4863538 FLAT ENGINE GASKET
8 11198071 SPRING WASHER Ø8X15 SP=1,4 MM
9 11198371 SPRING WASHER Ø10X20 MM
10 12164711 HEXAGON NUT M10X1,25
11 17765592 CLIP Ø110/130 MM
12 13449821 STUD M10X1,25X15 MM
13 15000824 HEXAGON BOLT M8X25 MM
14 4577310 THREADED PLUG
15 10279560 SEAL GASKET Ø22,2 MM
16 13543124 STUD M8X16X16
