8210Si15.00A500

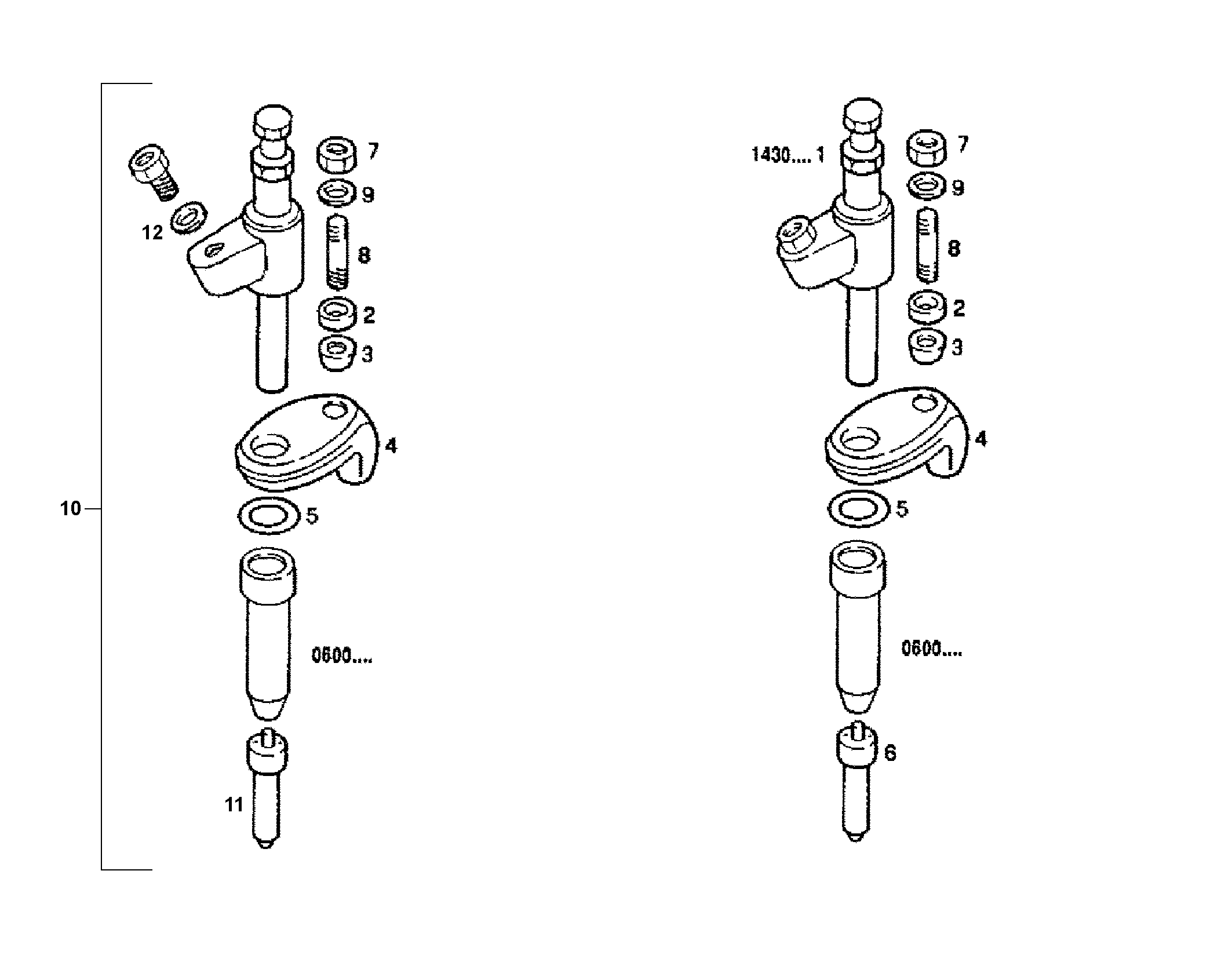

1420.019 INJECTORS

Iveco/FPT INJECTORS

Item Part number Description
1 4845627 NOZZLE HOLDER ASSY WEBER ALTECNA
2 756671 WASHER
3 757265 WASHER
4 764099 RETAINER
5 722962 O-RING
6 4779161 FUEL NOZZLE WEBER ALTECNA
7 17038221 HEXAGON NUT M10
8 13450530 STUD M10X15X70 MM
9 11198371 SPRING WASHER Ø10X20 MM
10 500363755 NOZZLE BOSCH
11 8094773 FUEL NOZZLE BOSCH
12 1290474 GASKET
