8210Si15.00A500

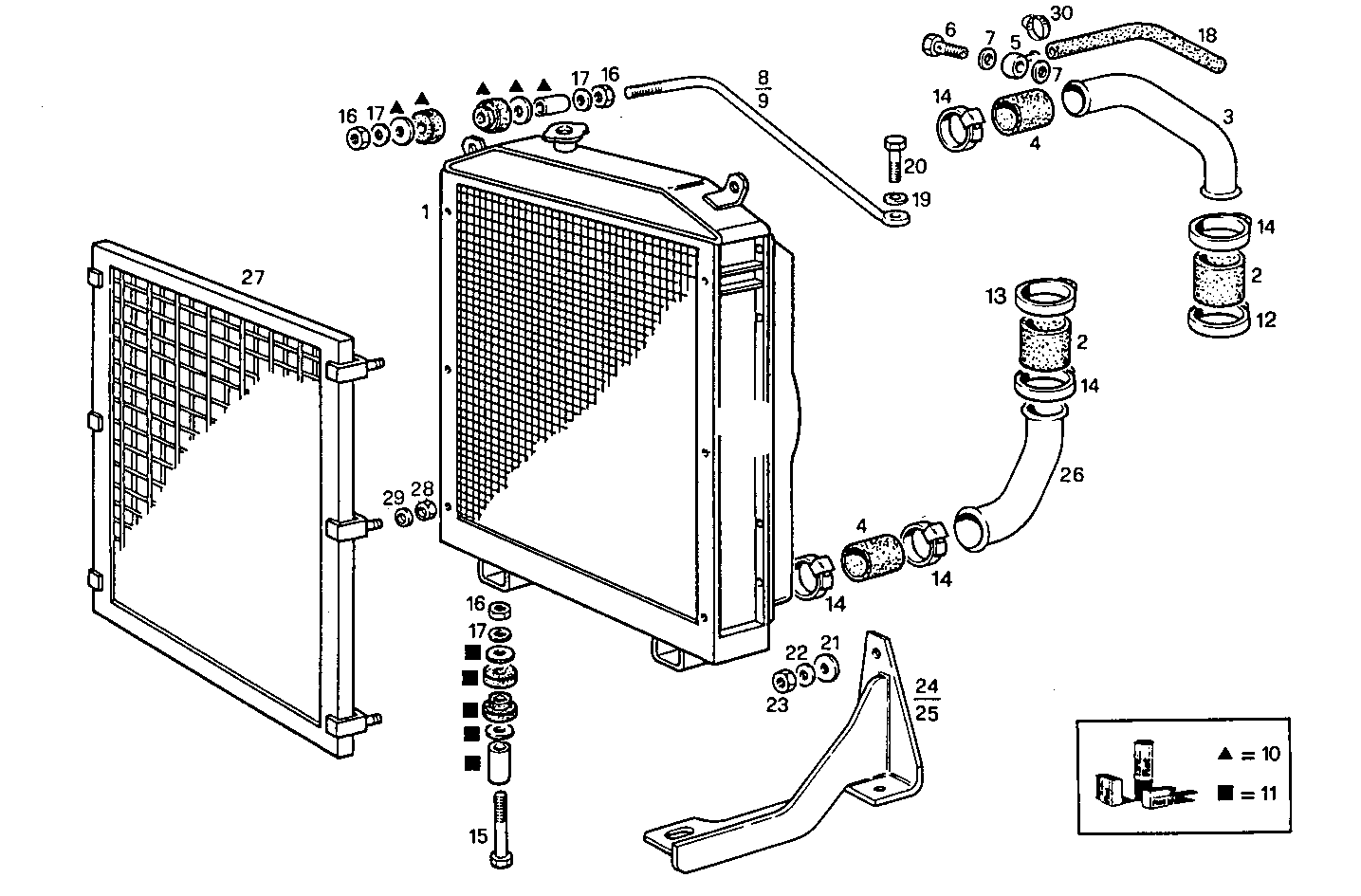

A22410005 RADIATOR FOR SETTING TILL MAX POWER

Iveco/FPT RADIATOR FOR SETTING TILL MAX POWER

Item Part number Description
1 8104690 WATER RADIATOR ASSY
2 61583792 RUBBER SLEEVE
3 8104688 WATER PIPE
4 17745087 WATER HOSE Ø50 MM
5 98405514 PIPE SOCKET
6 4864082 BANJO BOLT M12X1,5X25 MM
7 4858607 WASHER Ø12X17 MM SP=1,5 MM
8 8104692 TIE ROD LEFT
9 8104691 TIE ROD RIGHT
10 8090413 KIT-RADIATOR A.S. COMPLETE
11 8090977 KIT-RADIATOR A.S. COMPLETE
12 17765092 CLIP Ø60-80 MM
13 17764092 CLIP
14 17764992 CLIP Ø50-70 MM
15 15541421 HEXAGON BOLT M12X1,25X80 MM
16 17038621 NUT M12
17 17091374 SPRING WASHER Ø12X30X3,0 MM
18 19067387 HOSE L = 0,240 mm.
19 17090174 SPRING WASHER Ø10X20 MM
20 11343721 HEXAGON BOLT M10X65 MM
21 10738121 WASHER Ø14 MM
22 17091674 WASHER Ø14X27X3,0 MM
23 17038821 HEXAGON NUT M14
24 8107628 SUPPORT RIGHT
25 8107629 SUPPORT LEFT
26 8104501 WATER PIPE
27 8104612 PROTECTION
28 17037931 HEXAGON NUT M8X1,25
29 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
30 12179490 CLIP Ø9-16 MM
