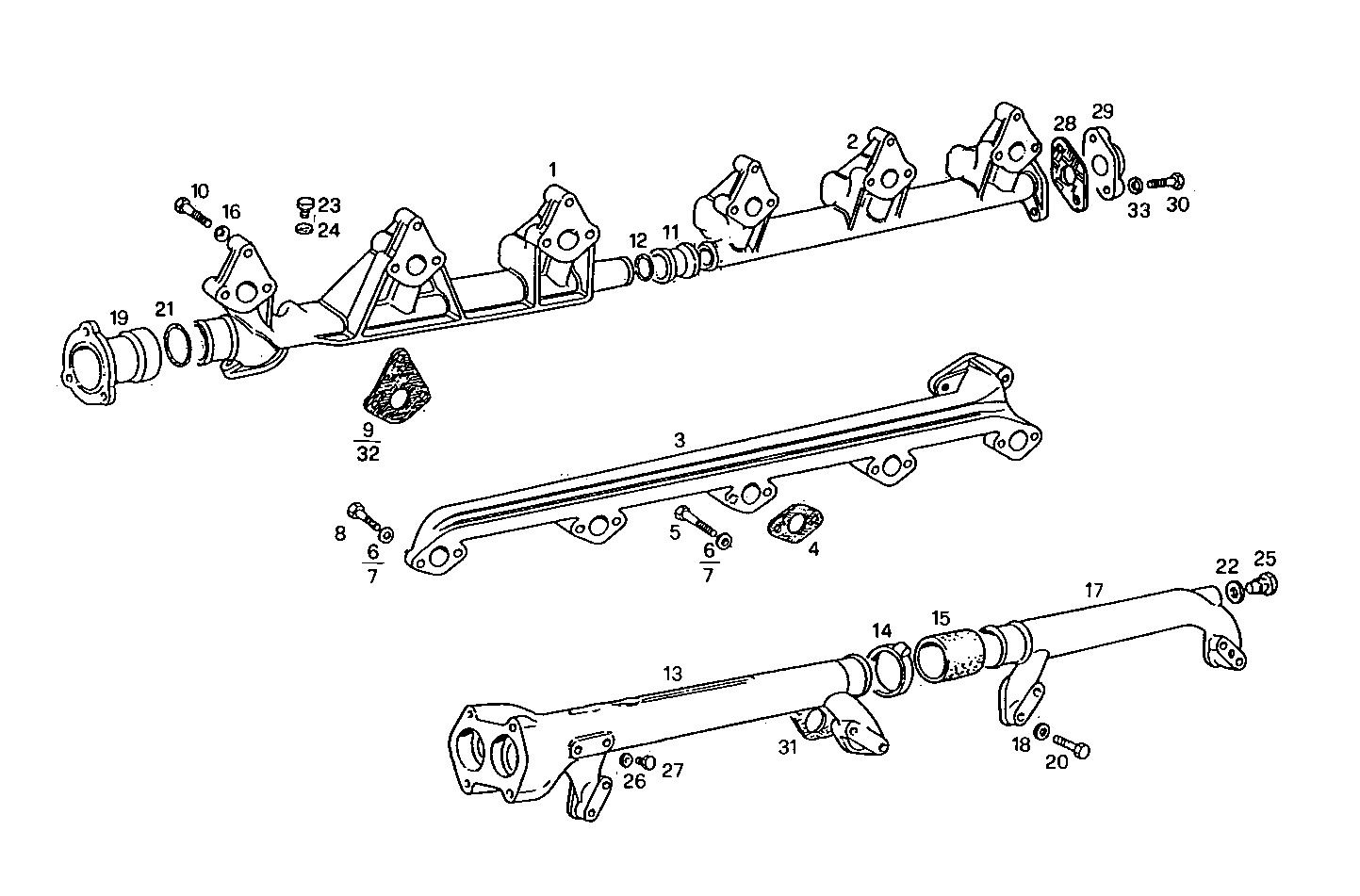

3210.057/01 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 4778955 WATER MANIFOLD
2 4762646 WATER MANIFOLD
3 4641230 WATER MANIFOLD
4 500308780 FLAT ENGINE GASKET
5 16605824 HEXAGON BOLT M8X35 MM
6 4852210 WASHER
7 4852211 WASHER
8 16606024 SCREW M8X45 MM
9 4852099 FLAT ENGINE GASKET
10 16605924 SCREW M8X40 MM
11 4762647 CONNECTOR SLEEVE
12 98458442 O-RING Ø24,99 MM SP=3,53 MM [from 657424]
13 98427299 WATER MANIFOLD
14 17764992 CLIP Ø50-70 MM
15 98421377 RUBBER SLEEVE Ø51 MM
16 17094914 WASHER 8x16
17 4616590 WATER MANIFOLD REAR
18 17095114 WASHER Ø10X21 MM
19 4799657 WATER PIPE
20 15888734 HEXAGON BOLT M10X1,25X55 MM
21 98461201 O-RING
22 10260360 SEAL GASKET Ø24,3 MM
23 16992311 LOCK PLUG M14X1,5
24 4858609 WASHER Ø16X22 MM SP=1,5 MM
25 4871068 PLUG ASSY
26 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
27 10304911 THREADED PLUG M20X1,5
28 4863947 FLAT ENGINE GASKET
29 1365519 FLANGE
30 16605624 HEXAGON BOLT M8X25 MM (8.8)
31 99435380 FLAT ENGINE GASKET Ø50 MM
32 99456733 FLAT ENGINE GASKET
33 17089574 WASHER Ø8X16 MM
