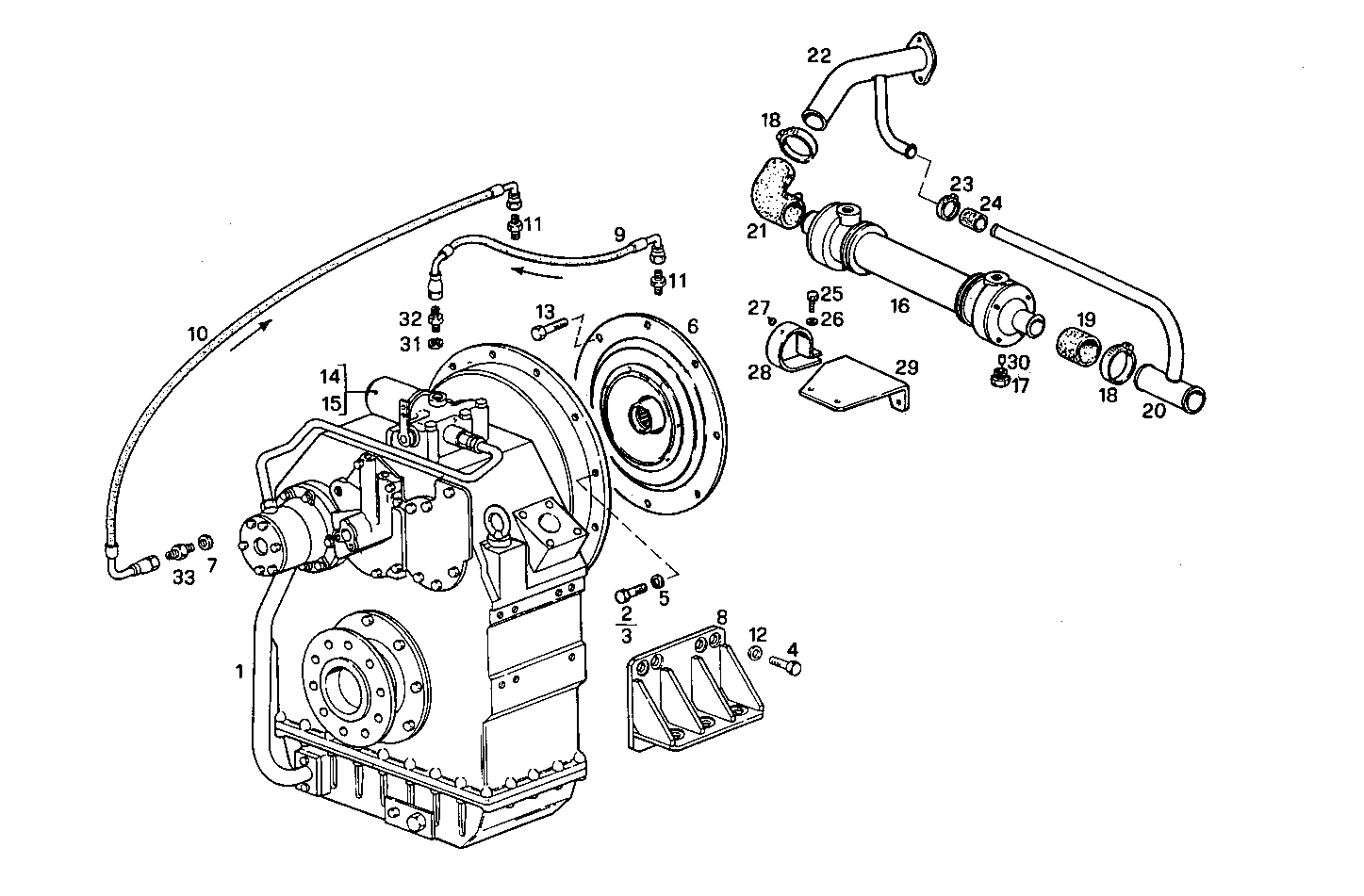

| Item |
Part number |
Description |
|
1 |
8024639 |
MARINE GEAR 4.960:1 |
|
2 |
15888721 |
HEXAGON BOLT M10X1,25X55 MM |
|
3 |
11288021 |
HEXAGON BOLT M10X1,25X60 MM |
|
4 |
4932875 |
SCREW M16X2X45 |
|
5 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
6 |
8024594 |
FLEXIBLE COUPLING |
|
7 |
11271460 |
GASKET Ø21X26X1,5 MM |
|
8 |
8005952 |
SUPPORT |
|
9 |
8105620 |
HOSE |
|
10 |
8105226 |
HOSE |
|
11 |
4932262 |
PIPE SOCKET |
|
12 |
11194279 |
SPRING WASHER Ø17,4 MM |
|
13 |
14274421 |
LOCKING SCREW M8X60 MM |
|
14 |
8007794 |
OIL FILTER CARTRIDGE ALTERNATIVE USE |
|
15 |
8007795 |
OIL FILTER CARTRIDGE ALTERNATIVE USE |
|
16 |
8109142 |
MARINE GEAR OIL HEAT EXCH ASSY |
|
17 |
8105276 |
PLUG M16 |
|
18 |
17764993 |
CLIP Ø50/70 MM |
|
19 |
4765112 |
RUBBER SLEEVE |
|
20 |
8111659 |
WATER PIPE |
|
21 |
8110487 |
WATER HOSE |
|
22 |
8005844 |
WATER PIPE |
|
23 |
17764793 |
CLIP Ø32/50 MM |
|
24 |
8110724 |
RUBBER SLEEVE |
|
25 |
11306921 |
SCREW M10X1,25X30 |
|
26 |
11198371 |
SPRING WASHER Ø10X20 MM |
|
27 |
4568427 |
RUBBER PAD |
|
28 |
8111020 |
CLAMP |
|
29 |
8005811 |
RETAINER |
|
30 |
8105277 |
SACRIFICAL ANODE Ø14 MM |
|
31 |
10263460 |
WASHER Ø22X28X1,5 MM |
|
32 |
8026416 |
PIPE SOCKET |
|
33 |
8026676 |
PIPE SOCKET |
