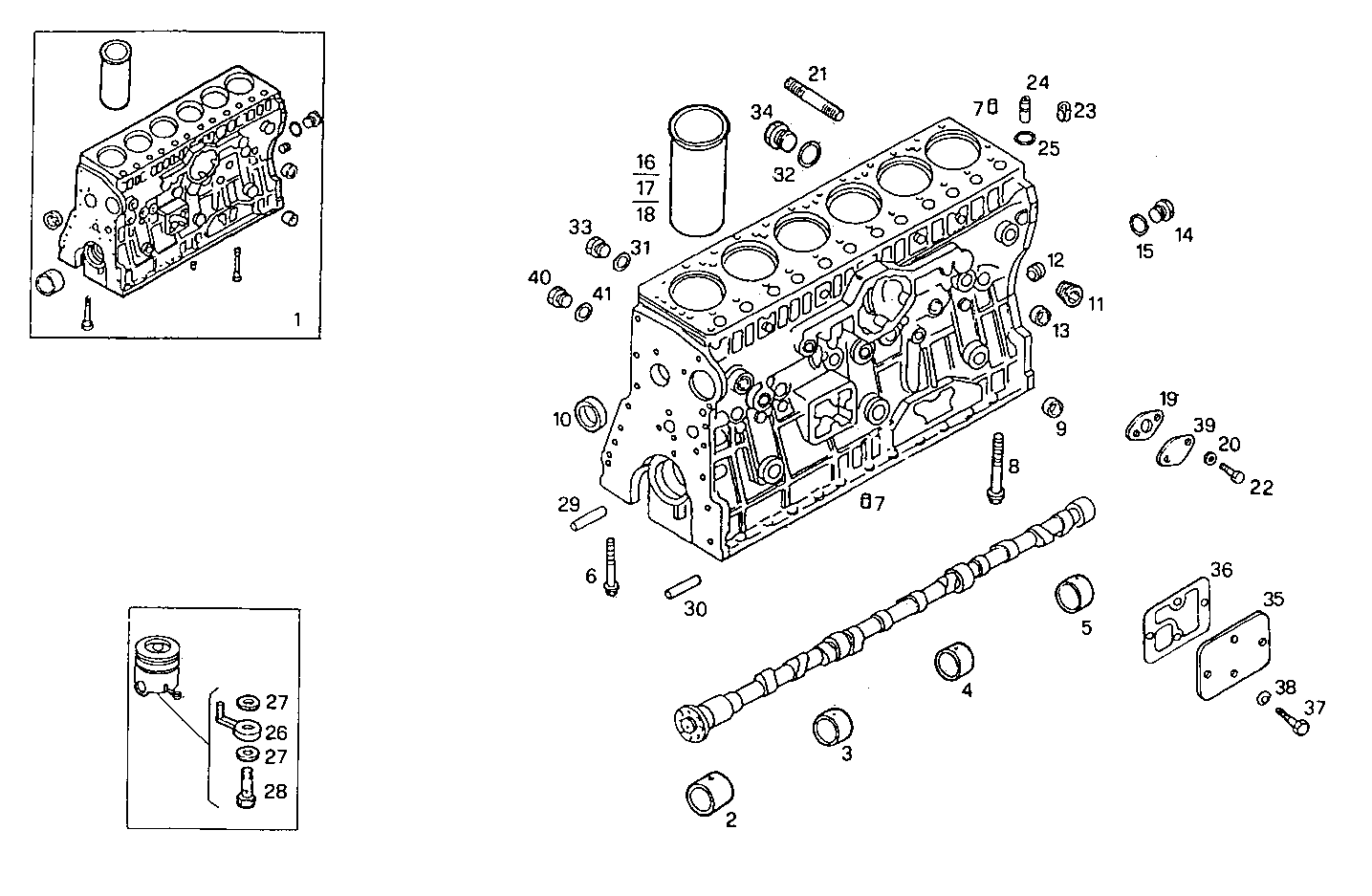

| Item |
Part number |
Description |
|
1 |
99441808 |
CRANKCASE ASSY |
|
2 |
4668570 |
CAMSHAFT BEARING |
|
3 |
4668063 |
CAMSHAFT BEARING FRONT MIDDLE |
|
4 |
4668064 |
CAMSHAFT BEARING MIDDLE REAR |
|
5 |
4668571 |
CAMSHAFT BEARING |
|
6 |
4827152 |
CRAHKSFT.BEAR.STUD M20 |
|
7 |
851425 |
DOWEL PIN |
|
8 |
4769168 |
CRAHKSFT.BEAR.STUD M20 |
|
9 |
14326150 |
LOCK PLUG |
|
10 |
14283370 |
LOCK PLUG Ø63 MM |
|
11 |
16997411 |
THREADED PLUG M16X1,5 |
|
12 |
14325501 |
LOCK PLUG M28X1,5 |
|
13 |
16991170 |
LOCK PLUG Ø36 MM |
|
14 |
16993511 |
LOCK PLUG M28X1,5 |
|
15 |
98458415 |
SEAL GASKET Ø28X36 MM SP=2 MM |
|
16 |
4622074 |
CYLINDER LINER +0,0 MM |
|
17 |
4679653 |
CYLINDER LINER +0,05 MM |
|
18 |
4622379 |
CYLINDER LINER +0,25 MM |
|
19 |
4863966 |
FLAT ENGINE GASKET |
|
20 |
17090274 |
WASHER Ø10X20 MM |
|
21 |
16729324 |
STUD M8X12X20 MM |
|
22 |
15970524 |
HEXAGON BOLT M10X1,25X20 |
|
23 |
4663640 |
DOWEL PIN |
|
24 |
4502626 |
DOWEL PIN |
|
25 |
17277781 |
O-RING Ø6,07 MM SP=1,78 MM |
|
26 |
4833421 |
OIL NOZZLE |
|
27 |
4700613 |
GASKET |
|
28 |
4775503 |
SCREW CONNECTOR |
|
29 |
10837810 |
DOWEL PIN Ø12 MM |
|
30 |
4533969 |
DOWEL PIN |
|
31 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
32 |
10265460 |
SEAL GASKET Ø42X49 MM SP=1,5 MM |
|
33 |
10300611 |
LOCK PLUG M14X1,5 |
|
34 |
4665029 |
LOCK PLUG M42X1,5 |
|
35 |
4638507 |
COVER |
|
36 |
4863963 |
FLAT ENGINE GASKET |
|
37 |
16626034 |
SCREW |
|
38 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
39 |
4785274 |
FLANGE |
|
40 |
10300940 |
PLUG M8 |
|
41 |
4858605 |
WASHER Ø8X12 MM |
