8210SM27.10

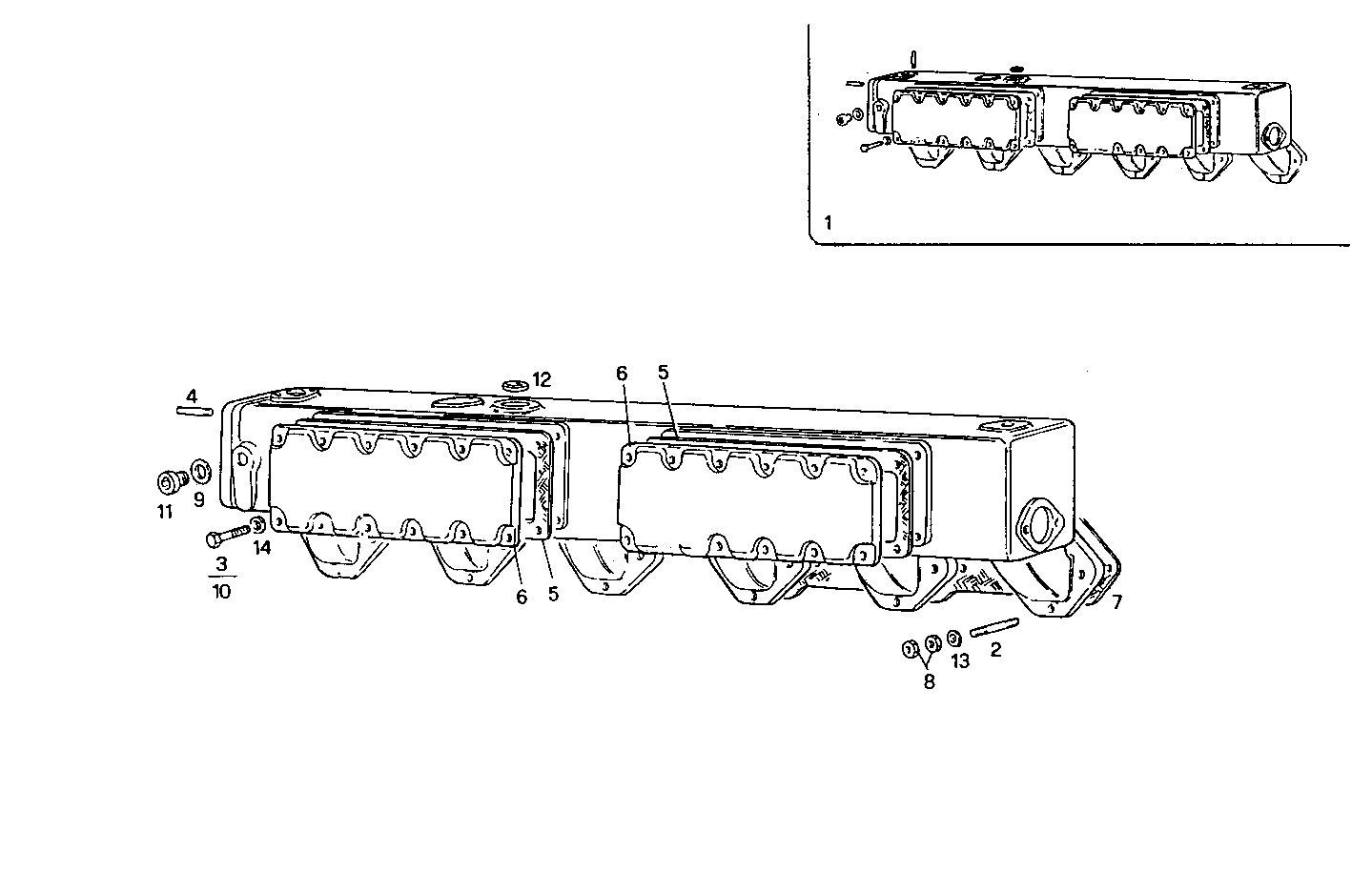

0760.105 EXHAUST MANIFOLD
Item | Part number | Description |
---|---|---|
1 | 8024759 | COOLED EXHAUST MANIF. ASSY |
2 | 4842861 | STUD |
3 | 16605824 | HEXAGON BOLT M8X35 MM |
4 | 13449830 | STUD M10X1,25X35 MM |
5 | 8021800 | GASKET |
6 | 8021358 | COVER |
7 | 4839530 | EXH. MANIFOLD GKT |
8 | 4927248 | NUT M10X1,25 |
9 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
10 | 16605424 | SCREW M8X16 MM (8.8) |
11 | 16992540 | PLUG M18X1,5 |
12 | 16991170 | LOCK PLUG Ø36 MM |
13 | 16665614 | WASHER Ø10,5 MM |
14 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
