8210SM27.10

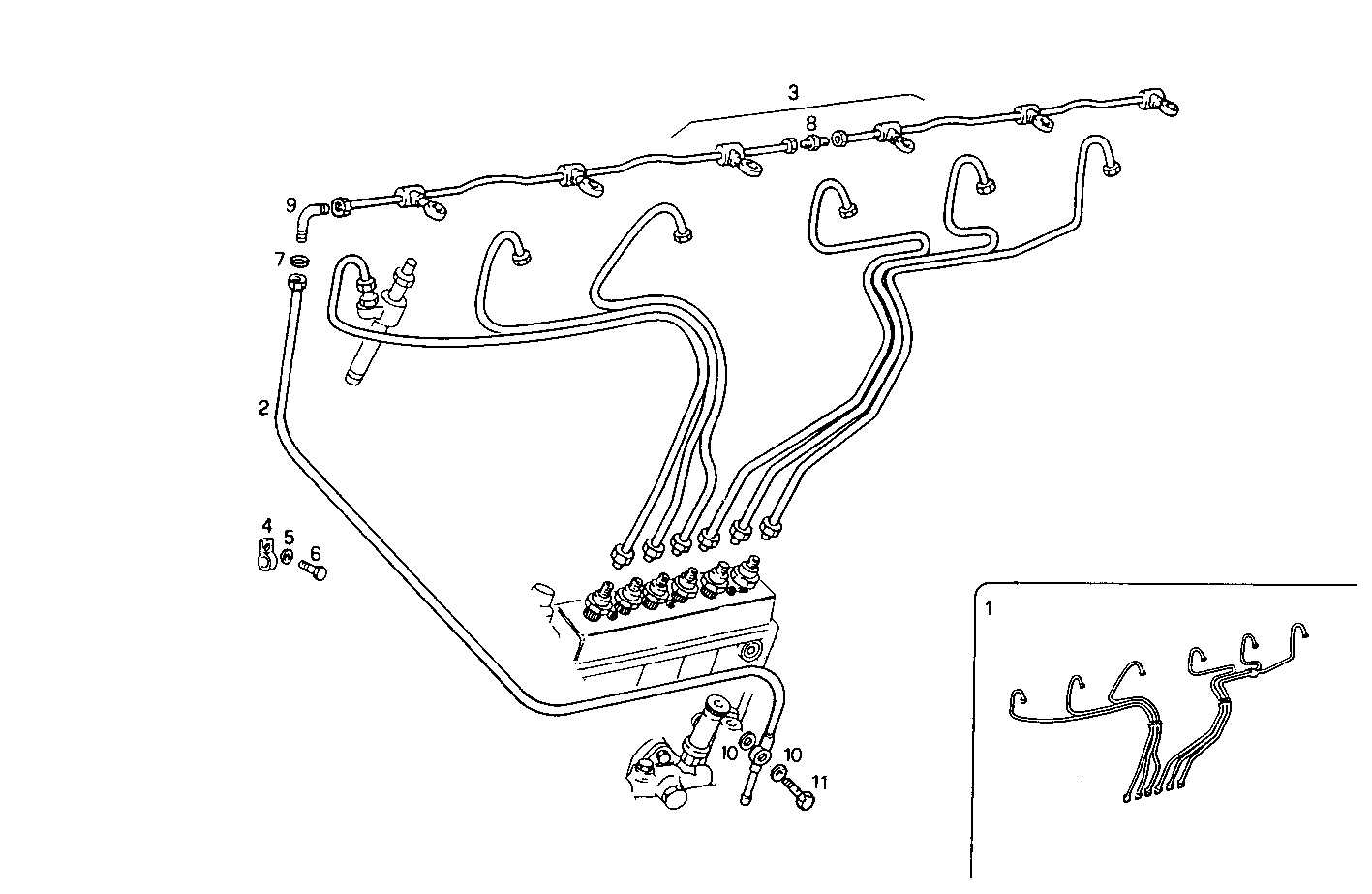

2020.091 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 8012314 | INJECTION LINE SET |
| 2 | 8024827 | FUEL LINE |
| 3 | 4863056 | FUEL LINE ASSY |
| 4 | 8006650 | CLIP |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 15970421 | HEXAGON BOLT M10X18 MM |
| 7 | 8024645 | O-RING Ø4 MM |
| 8 | 16501511 | SCREW CONNECTOR M12X1,5 |
| 9 | 16503011 | PIPE SOCKET |
| 10 | 98474308 | SEAL GASKET Ø14X22 MM |
| 11 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
