8210SM27.10

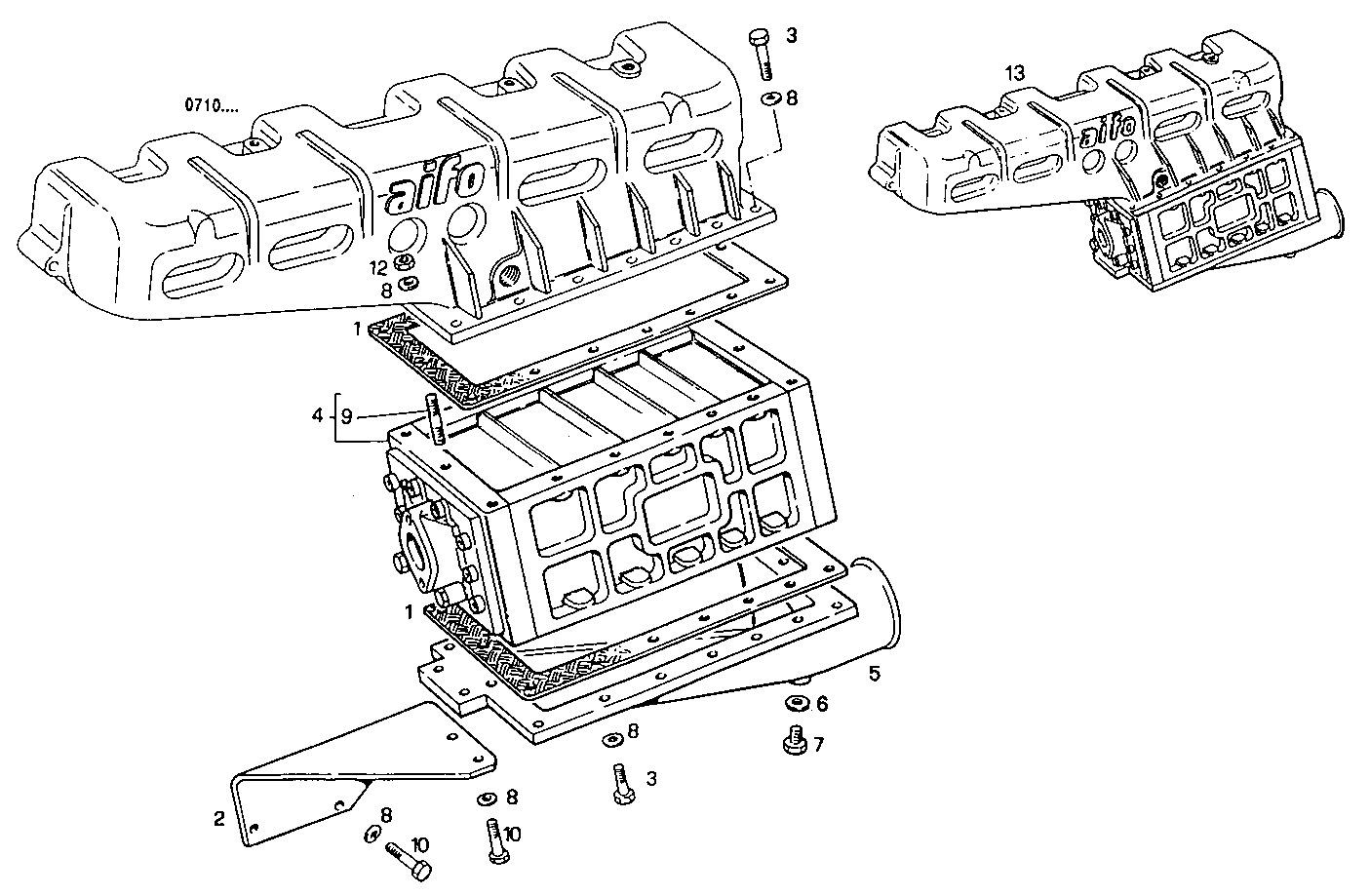

2460.037 AIR - WATER HEAT EXCHANGER

Iveco/FPT AIR - WATER HEAT EXCHANGER

Item Part number Description
1 8008906 GASKET
2 8024557 RETAINER
3 16605734 HEXAGON BOLT M8X30 MM
4 8010990 SPACING BAR
5 8109190 AIR HOOD
6 4858605 WASHER Ø8X12 MM
7 10300940 PLUG M8
8 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
9 16729424 STUD M8X1,25X25
10 16605624 HEXAGON BOLT M8X25 MM (8.8)
12 17037931 HEXAGON NUT M8X1,25
13 8110272 AIR/WATER HEAT EXCHANGER ASSY
