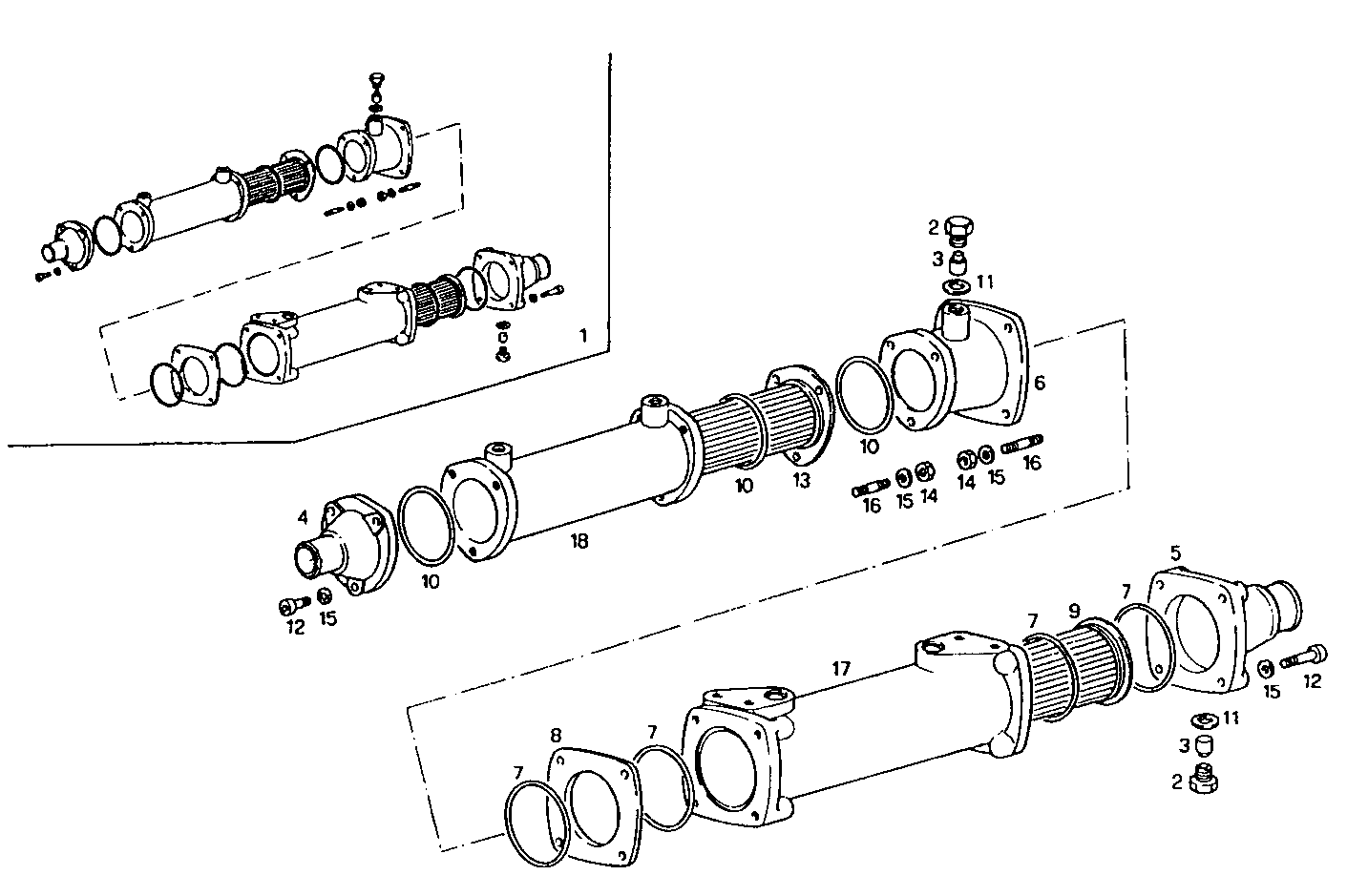

Item |
Part number |
Description |
1 |
8024580 |
OIL/WATER HEAT EXCHANGER ASSY |
2 |
4917793 |
PLUG M18 |
3 |
8105277 |
SACRIFICAL ANODE Ø14 MM |
4 |
8024581 |
HEAT EXCHANG.COVER |
5 |
8024579 |
HEAT EXCHANG.COVER |
6 |
8024284 |
FLANGE |
7 |
8019074 |
O-RING |
8 |
4837668 |
SPACING BAR |
9 |
4837665 |
TUBE STACK |
10 |
17290881 |
O-RING Ø82,14X3,53 MM |
11 |
4858610 |
WASHER Ø18X24 MM SP=1,5 MM |
12 |
16690824 |
CYLIND-HEAD SCREW M8X35 MM |
13 |
8017384 |
TUBE STACK |
14 |
17037931 |
HEXAGON NUT M8X1,25 |
15 |
17800474 |
WASHER Ø8X15X1,0 MM |
16 |
16746824 |
STUD M8X30 MM (8.8) |
17 |
4837664 |
HEAT EXANGER BODY |
18 |
8017382 |
HEAT EXANGER BODY |
