8210SM27.10

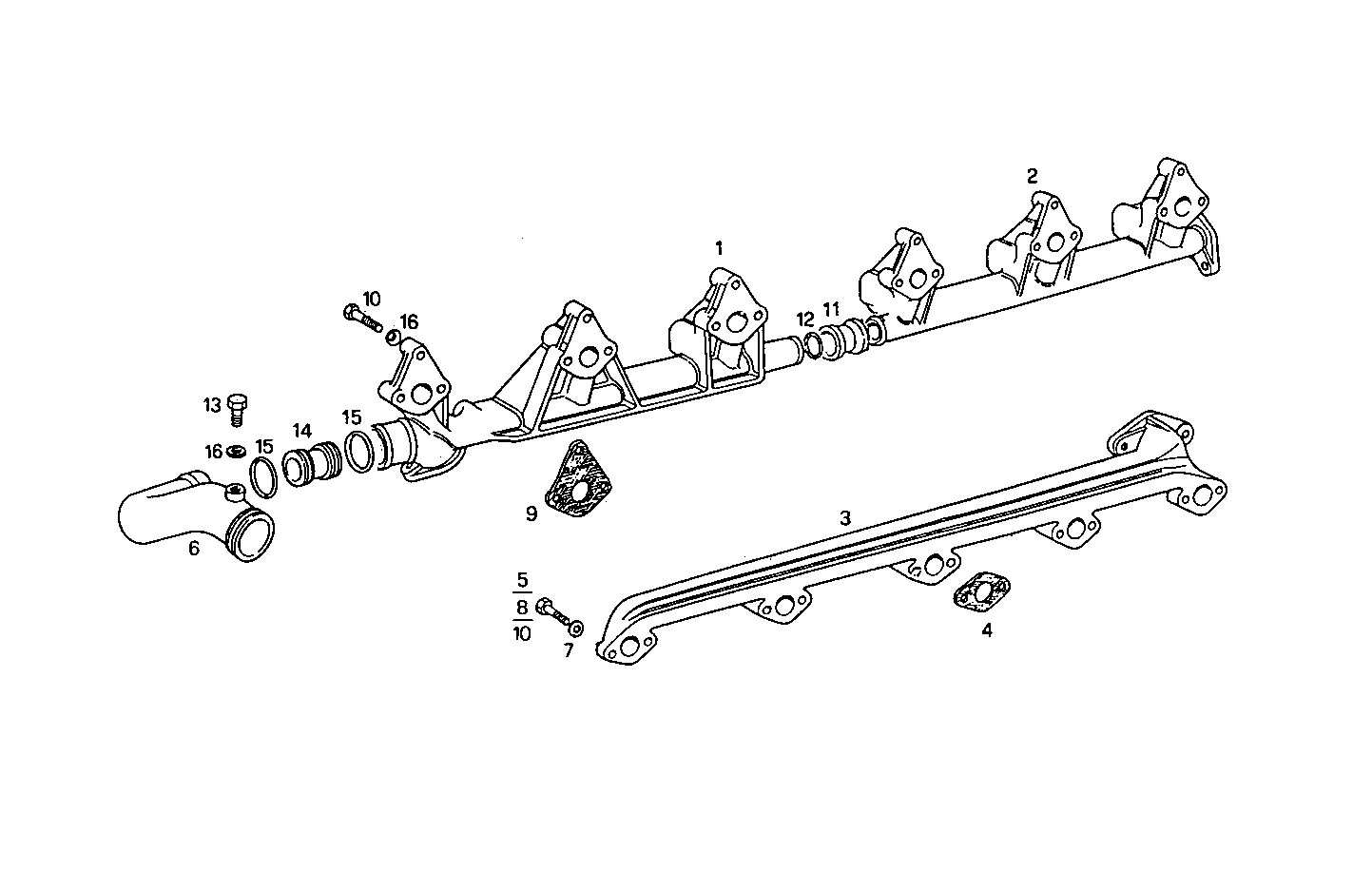

3210.139/01 WATER LINES
Item | Part number | Description |
---|---|---|
1 | 4778955 | WATER MANIFOLD |
2 | 4762646 | WATER MANIFOLD |
3 | 98471454 | WATER MANIFOLD |
4 | 500308780 | FLAT ENGINE GASKET |
5 | 16605824 | HEXAGON BOLT M8X35 MM |
6 | 98478087 | WATER PIPE |
7 | 4852211 | WASHER |
8 | 16606024 | SCREW M8X45 MM |
9 | 4852099 | FLAT ENGINE GASKET |
10 | 16605924 | SCREW M8X40 MM |
11 | 4762647 | CONNECTOR SLEEVE |
12 | 98458442 | O-RING Ø24,99 MM SP=3,53 MM [from 657424] |
13 | 16606524 | HEXAGON BOLT M8X70 MM |
14 | 4859434 | CONNECTOR SLEEVE [from 301481] |
15 | 500349805 | O-RING Ø56,52X5,33 MM |
16 | 17094914 | WASHER 8x16 |
