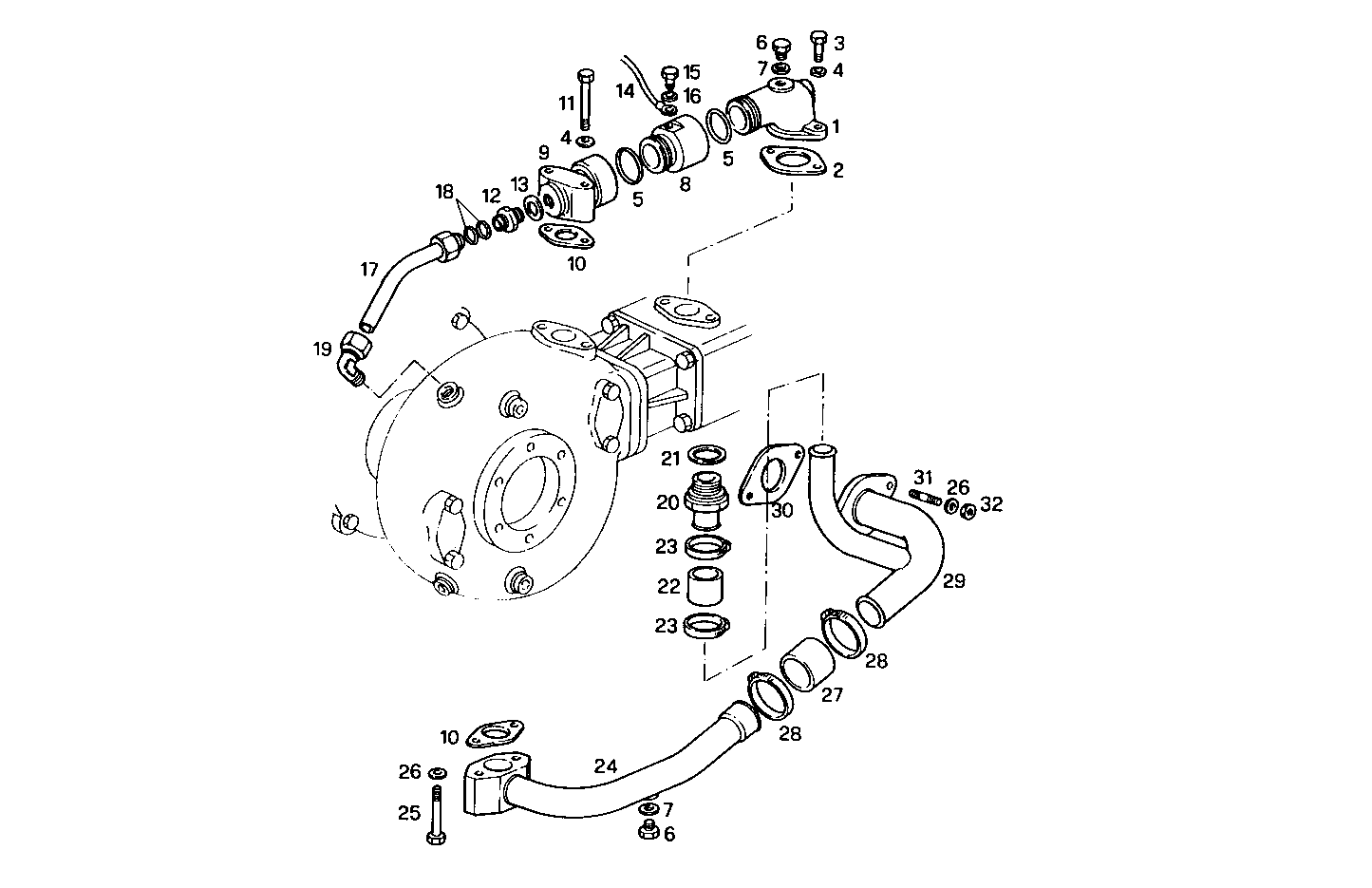

Item |
Part number |
Description |
1 |
8024495 |
INTAKE ELBOW |
2 |
8009640 |
GASKET |
3 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
4 |
17094914 |
WASHER 8x16 |
5 |
17289081 |
O-RING Ø31,34X3,53 MM |
6 |
16992211 |
THREADED PLUG M12X1,5 |
7 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
8 |
8024590 |
CONNECTOR SLEEVE |
9 |
8024496 |
WATER PIPE |
10 |
98482697 |
GASKET |
11 |
16606124 |
HEXAGON BOLT M8X50 MM |
12 |
16509311 |
SWIVEL COUPLING |
13 |
4858610 |
WASHER Ø18X24 MM SP=1,5 MM |
14 |
8113786 |
ENGINE HARNESS GND |
15 |
15857521 |
SCREW |
16 |
17094714 |
WASHER Ø6,4X12 MM |
17 |
8024589 |
WATER PIPE |
18 |
8024649 |
O-RING Ø12 MM |
19 |
8111454 |
PIPE SOCKET M22X1,5 |
20 |
8024797 |
PIPE SOCKET M30X1,5 |
21 |
10303460 |
SEAL GASKET Ø30x36x1,5 MM |
22 |
8105610 |
RUBBER SLEEVE |
23 |
17764693 |
CLIP Ø25/40 MM |
24 |
8024724 |
WATER PIPE |
25 |
16606224 |
HEXAGON BOLT M8X55 MM |
26 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
27 |
8109344 |
WATER HOSE |
28 |
17764793 |
CLIP Ø32/50 MM |
29 |
8024725 |
WATER PIPE |
30 |
98438824 |
FLAT ENGINE GASKET |
31 |
16746724 |
STUD M8X25 MM |
32 |
17037931 |
HEXAGON NUT M8X1,25 |
