8210SM27.10

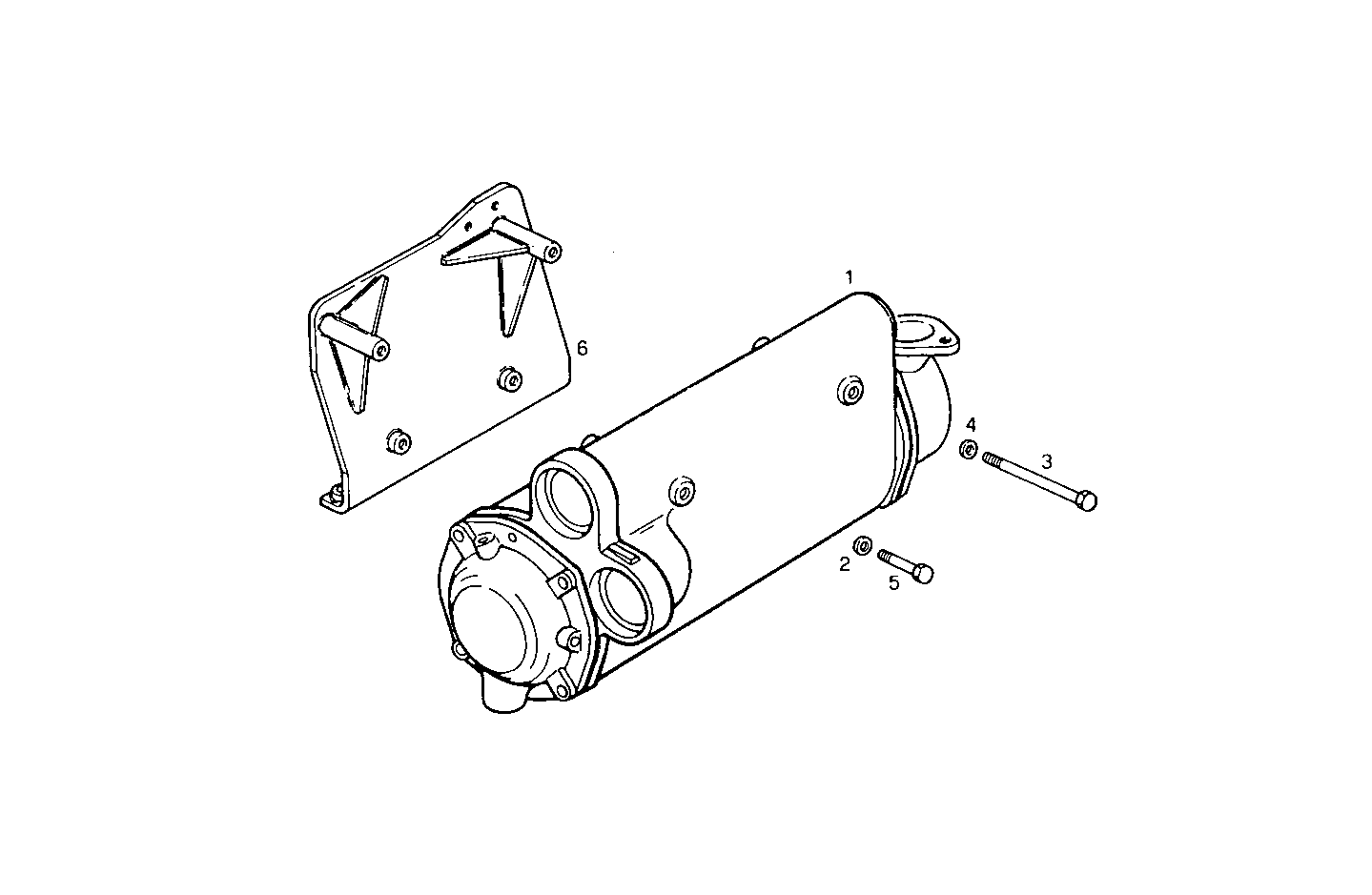

3370.034/01 FRESH WATER - SEA WATER HEAT EXCHANGER [D 10-1997] [from10-1997]
Item | Part number | Description |
---|---|---|
1 | 8025435 | WATER/SEA WATER HEAT EXCH ASSY |
2 | 17095504 | WASHER Ø14X28 MM |
3 | 16611724 | SCREW M12X180 |
4 | 17095304 | WASHER Ø12X24 MM |
5 | 16612524 | SCREW M14X45 MM |
6 | 8024177 | SUPPORT |
