8210SM27.10

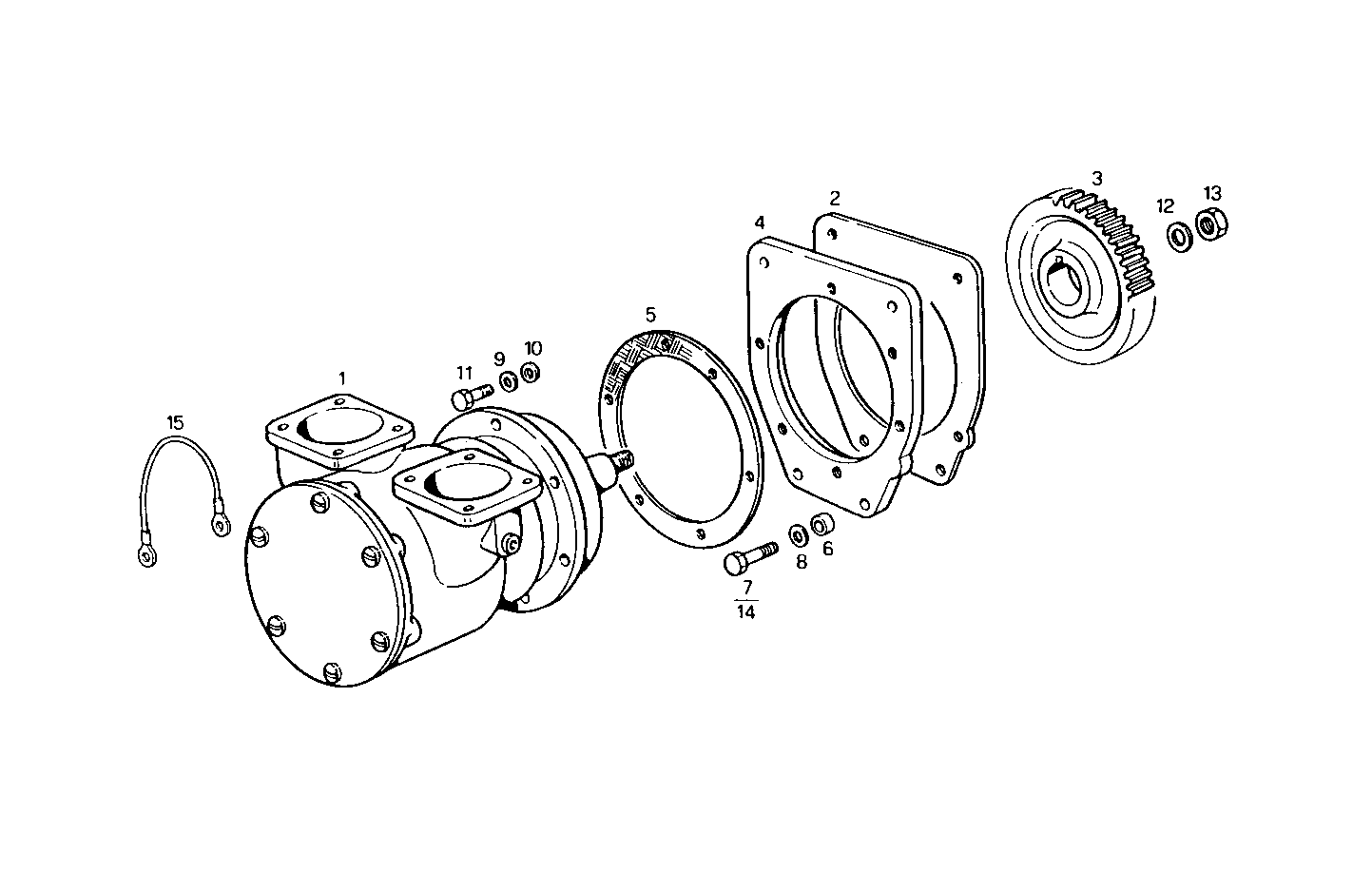

3380.022/01 SEA WATER PUMP - JABSCO
| Item | Part number | Description |
|---|---|---|
| 1 | 8112445 | SEA WATER PUMP ASSY JABSCO |
| 2 | 4864032 | FLAT ENGINE GASKET |
| 3 | 8012276 | GEAR |
| 4 | 8024592 | SPACING BAR |
| 5 | 8008952 | GASKET |
| 6 | 8101556 | SPACING BAR SP=13,00 MM |
| 7 | 15888721 | HEXAGON BOLT M10X1,25X55 MM |
| 8 | 17090174 | SPRING WASHER Ø10X20 MM |
| 9 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 10 | 17094914 | WASHER 8x16 |
| 11 | 16605734 | HEXAGON BOLT M8X30 MM |
| 12 | 4709364 | LOCKING PLATE |
| 13 | 8025667 | NUT M18X1,5 |
| 14 | 11307021 | HEXAGON BOLT M10X40 MM |
| 15 | 8109924 | ENGINE HARNESS GND |
