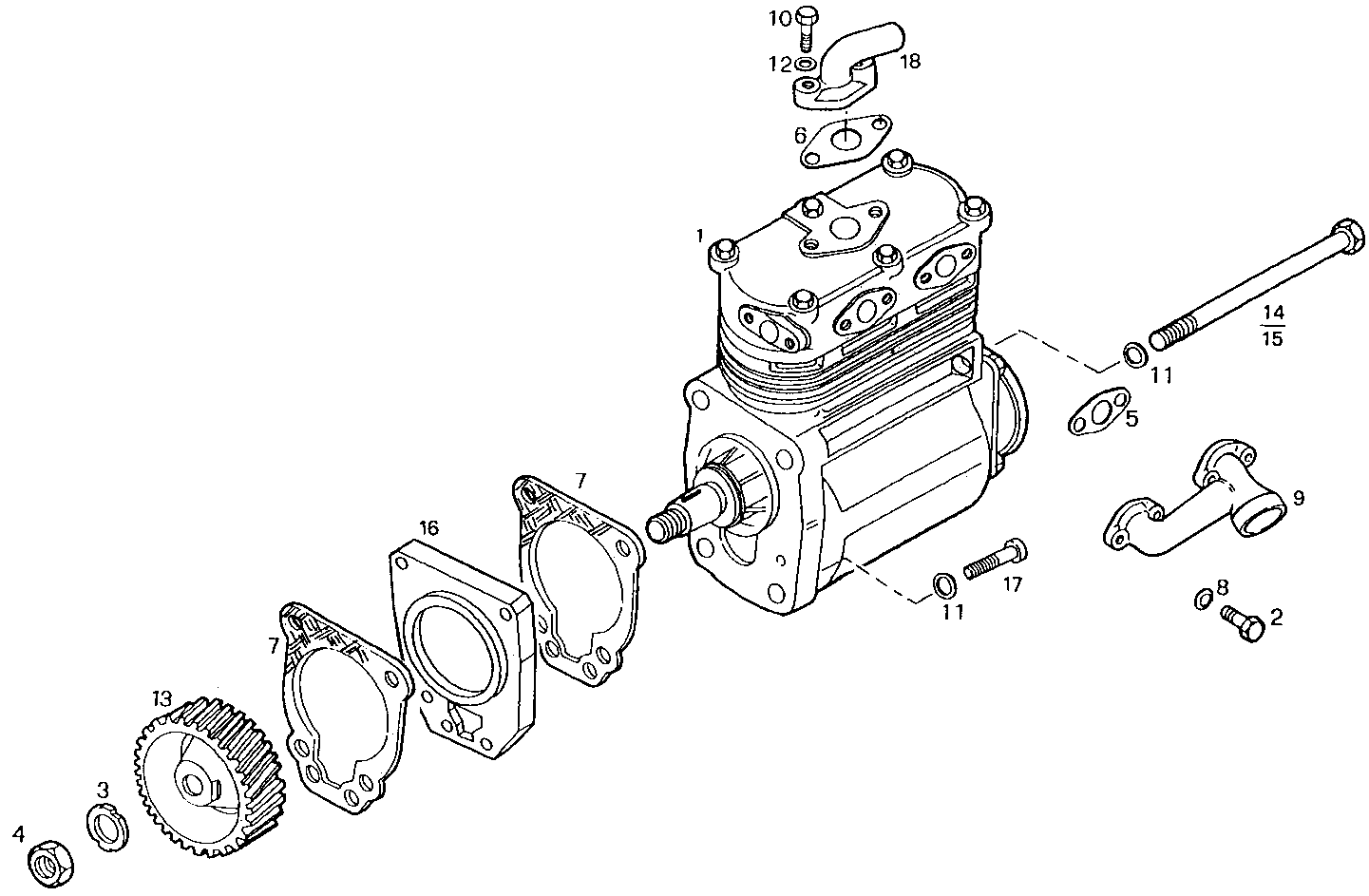

| Item |
Part number |
Description |
|
1 |
99476238 |
AIR COMPRESSOR ASSY KNORR |
|
2 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
3 |
17095814 |
WASHER |
|
4 |
16980731 |
HEXAGON NUT |
|
5 |
4863497 |
FLAT ENGINE GASKET |
|
6 |
4863538 |
FLAT ENGINE GASKET |
|
7 |
4864032 |
FLAT ENGINE GASKET |
|
8 |
17094914 |
WASHER 8x16 |
|
9 |
4717885 |
CONNECTING PIPE |
|
10 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
11 |
17090274 |
WASHER Ø10X20 MM |
|
12 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
13 |
99449306 |
GEAR |
|
14 |
99446075 |
HEXAGON BOLT M10X1,25X233 MM [from 455939] |
|
15 |
99446076 |
HEXAGON BOLT M10X1,25X212 MM [from 455939] |
|
16 |
98424166 |
SPACING BAR |
|
17 |
14308224 |
CYLIND-HEAD SCREW M10X1,25X65 MM |
|
18 |
500350473 |
AIR PIPE/DUCT |
