8210SRC20.00

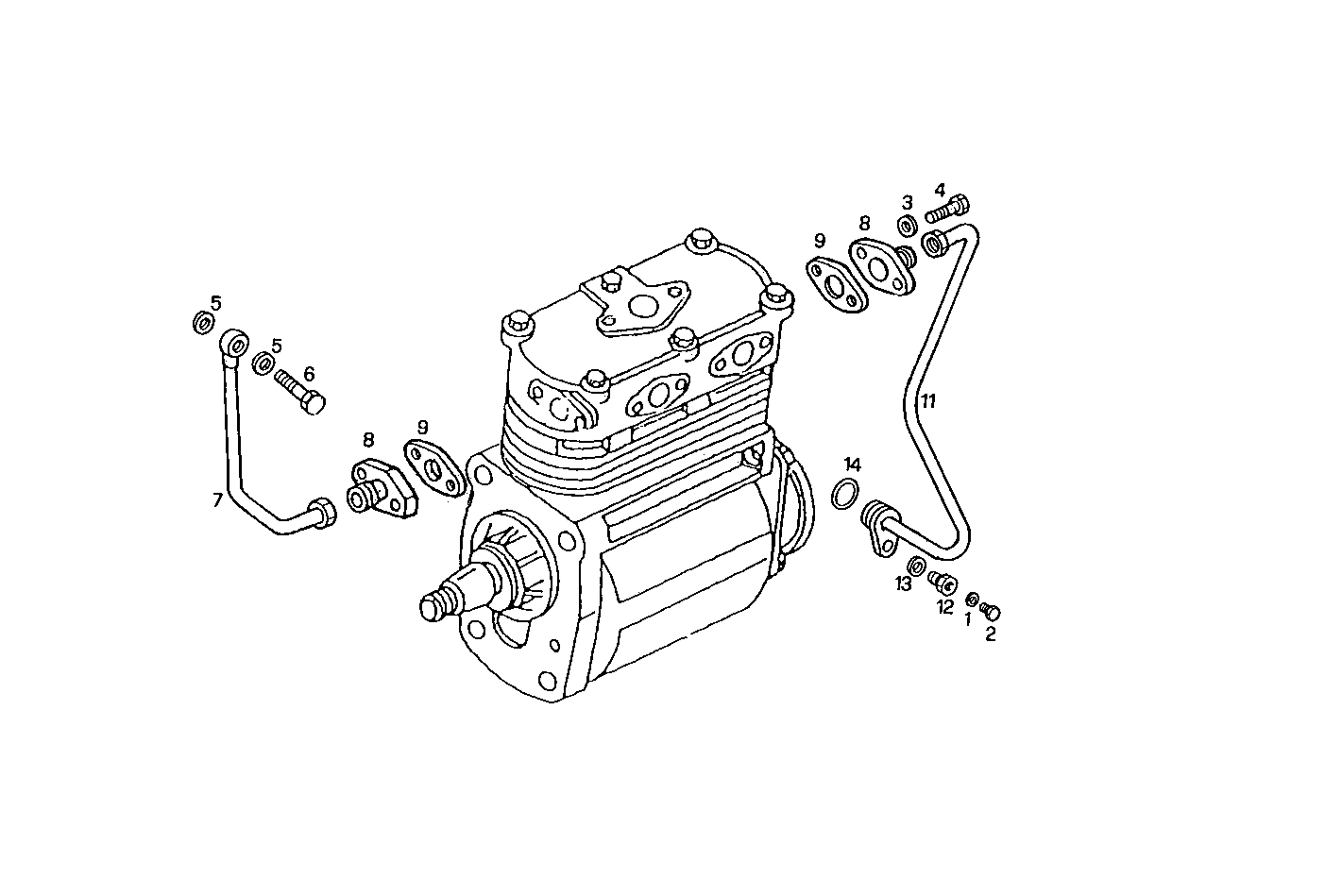

A18090001/02 AIR COMPRESSOR - 500cc
| Item | Part number | Description |
|---|---|---|
| 1 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 2 | 16992211 | THREADED PLUG M12X1,5 |
| 3 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 4 | 16690524 | SCREW M8X20 MM (8.8) |
| 5 | 98474309 | WASHER Ø16X24 MM SP=1,9 MM |
| 6 | 4864084 | BANJO BOLT M16X1,5 |
| 7 | 99446080 | WATER PIPE |
| 8 | 98429496 | FLANGE |
| 9 | 4863497 | FLAT ENGINE GASKET |
| 11 | 99484821 | WATER PIPE Ø15 MM |
| 12 | 99443961 | PIPE SOCKET M8X18 |
| 13 | 12645024 | WASHER Ø8X21 MM |
| 14 | 98461196 | RUBBER GASKET |
