8210SRC21.00

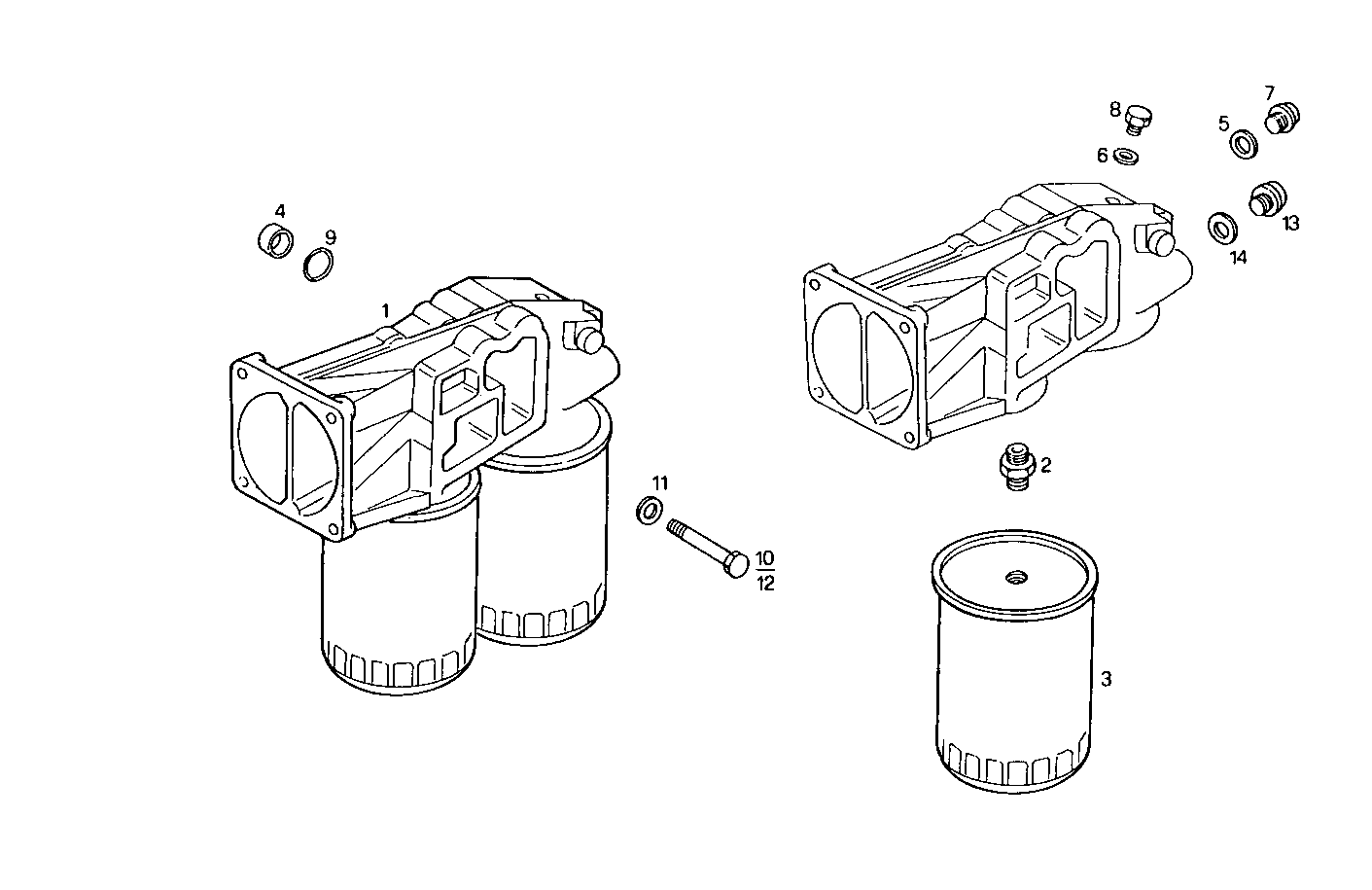

3020.064 OIL FILTERS
| Item | Part number | Description |
|---|---|---|
| 1 | 98469478 | OIL FILTER ASSY |
| 2 | 4741301 | THREADED UNION ASSY |
| 3 | 1903629 | OIL FILTER CARTRIDGE |
| 4 | 4538571 | CENTERING BUSH |
| 5 | 10263460 | WASHER Ø22X28X1,5 MM |
| 6 | 10265060 | SEAL GASKET Ø32X38 MM SP=1,5 MM |
| 7 | 10275011 | PLUG M22X1,5 |
| 8 | 10276111 | LOCK PLUG M32X1,5 |
| 9 | 17282581 | O-RING Ø28,24 MM SP=2,62 MM |
| 10 | 15972224 | HEXAGON BOLT M10X1,25X120 MM |
| 11 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
| 12 | 15972624 | HEXAGON BOLT |
| 13 | 10273140 | LOCK PLUG M18X1,5 |
| 14 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
