8210SRC21.00

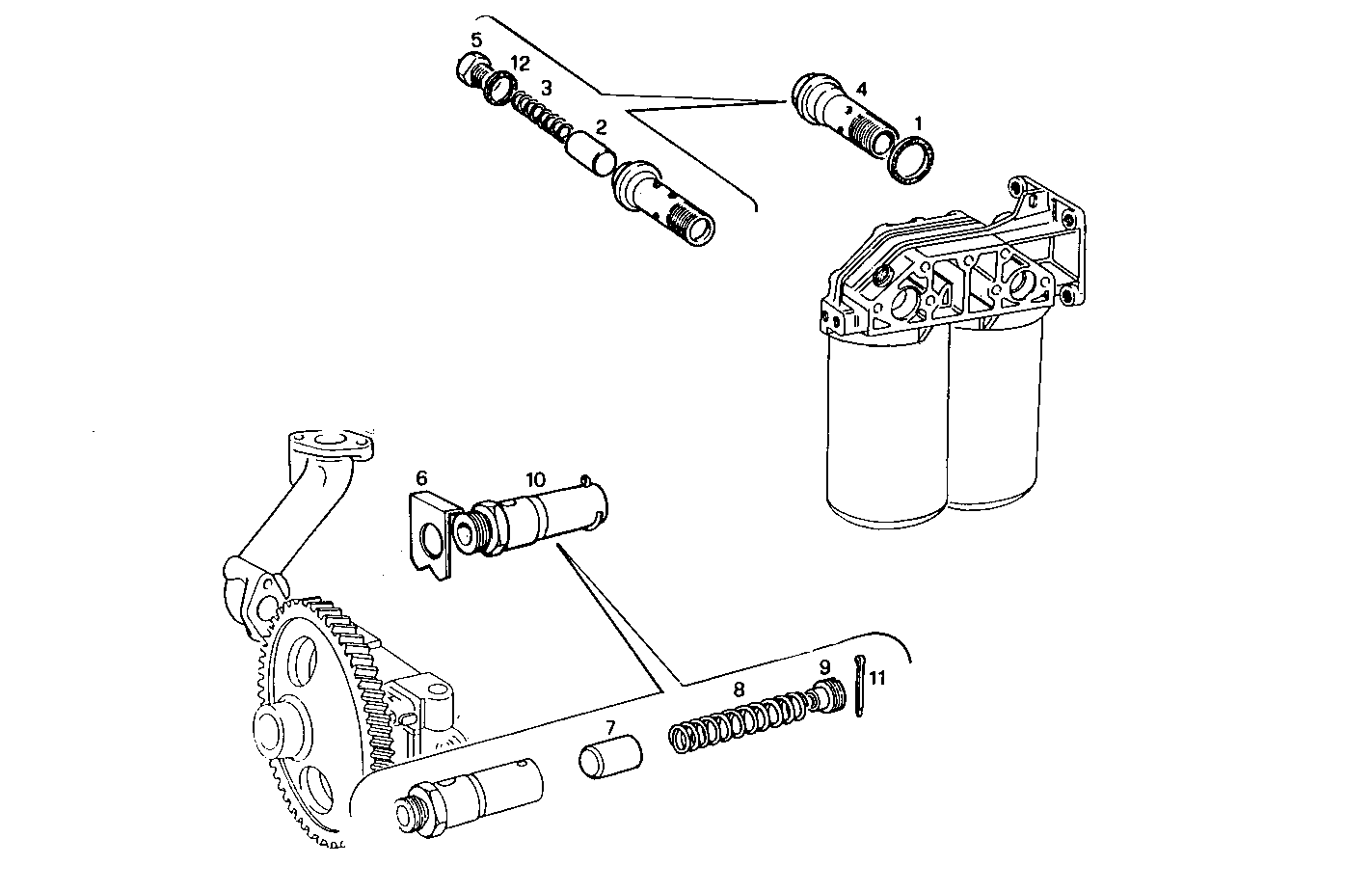

3030.012 OIL PRESSURE VALVE

Iveco/FPT OIL PRESSURE VALVE

Item Part number Description
1 4636458 SEAL GASKET
2 4636399 VALVE
3 4636397 SPRING
4 4649718 OIL PUMP VALVE ASSY
5 4649719 SCREW CAP/PLUG
6 4643591 LOCKING PLATE
7 4672842 VALVE
8 4677094 SPRING
9 4740423 THREADED PLUG
10 4740422 OIL PUMP VALVE ASSY
11 16857201 SPLIT PIN
12 10263640 GASKET
