8210SRC21.20

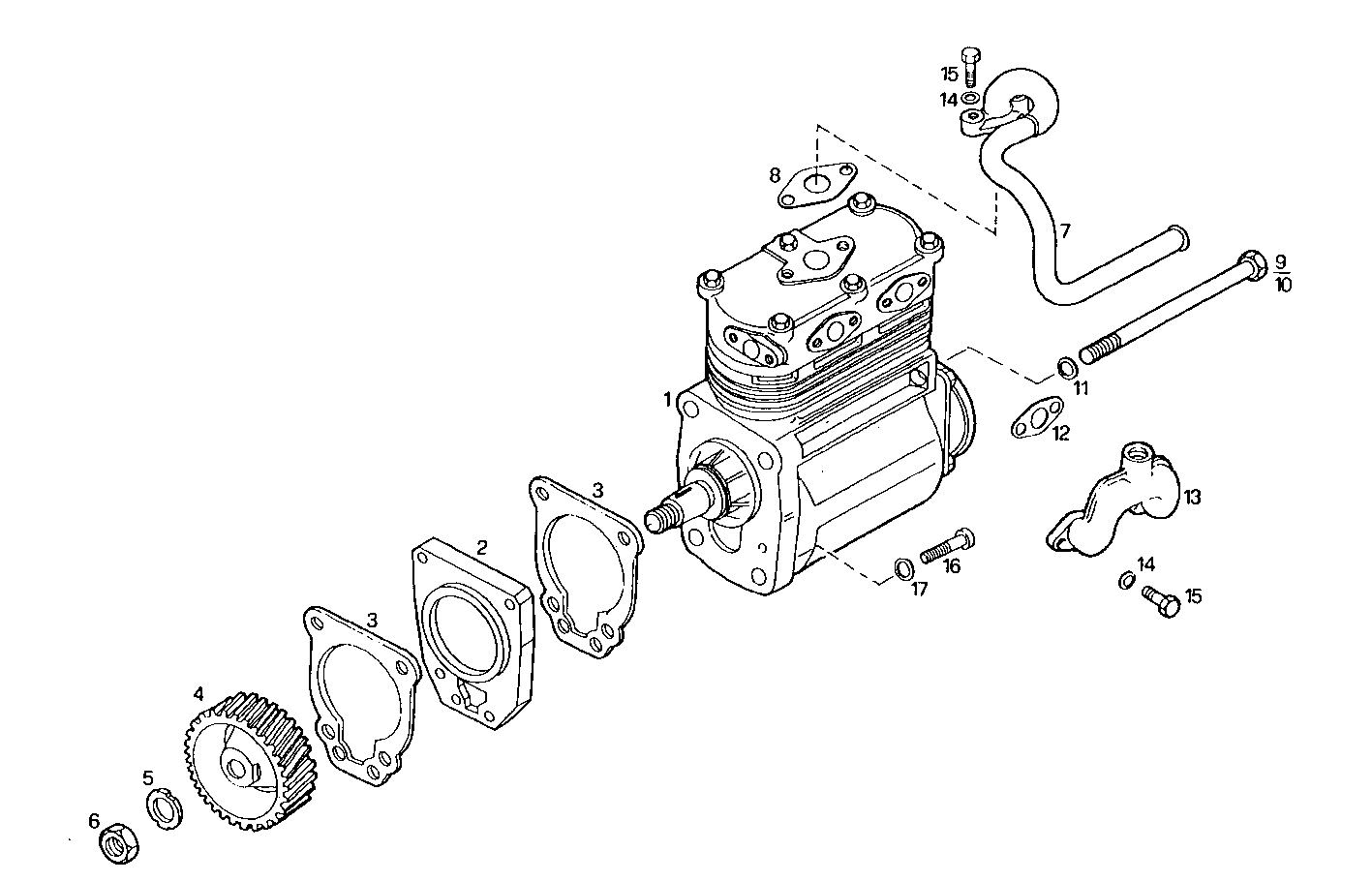

3800.020 AIR COMPRESSOR
| Item | Part number | Description |
|---|---|---|
| 1 | 500310903 | AIR COMPRESSOR ASSY KNORR |
| 2 | 98424166 | SPACING BAR |
| 3 | 4864032 | FLAT ENGINE GASKET |
| 4 | 99449306 | GEAR |
| 5 | 17095814 | WASHER |
| 6 | 16980731 | HEXAGON NUT |
| 7 | 500350474 | PIPE L=680 MM |
| 8 | 500350475 | FLAT ENGINE GASKET Ø50 MM |
| 9 | 14307924 | CYLIND-HEAD SCREW M10X1,25X50 MM |
| 10 | 500348174 | SOCKET-HEAD SCREW M10X1,25X60 MM |
| 11 | 17090274 | WASHER Ø10X20 MM |
| 12 | 4863497 | FLAT ENGINE GASKET |
| 13 | 4649176 | EXHAUST ELBOW |
| 14 | 17094914 | WASHER 8x16 |
| 15 | 16605734 | HEXAGON BOLT M8X30 MM |
| 16 | 14308821 | SCREW M10X110 |
