8210SRC21.20

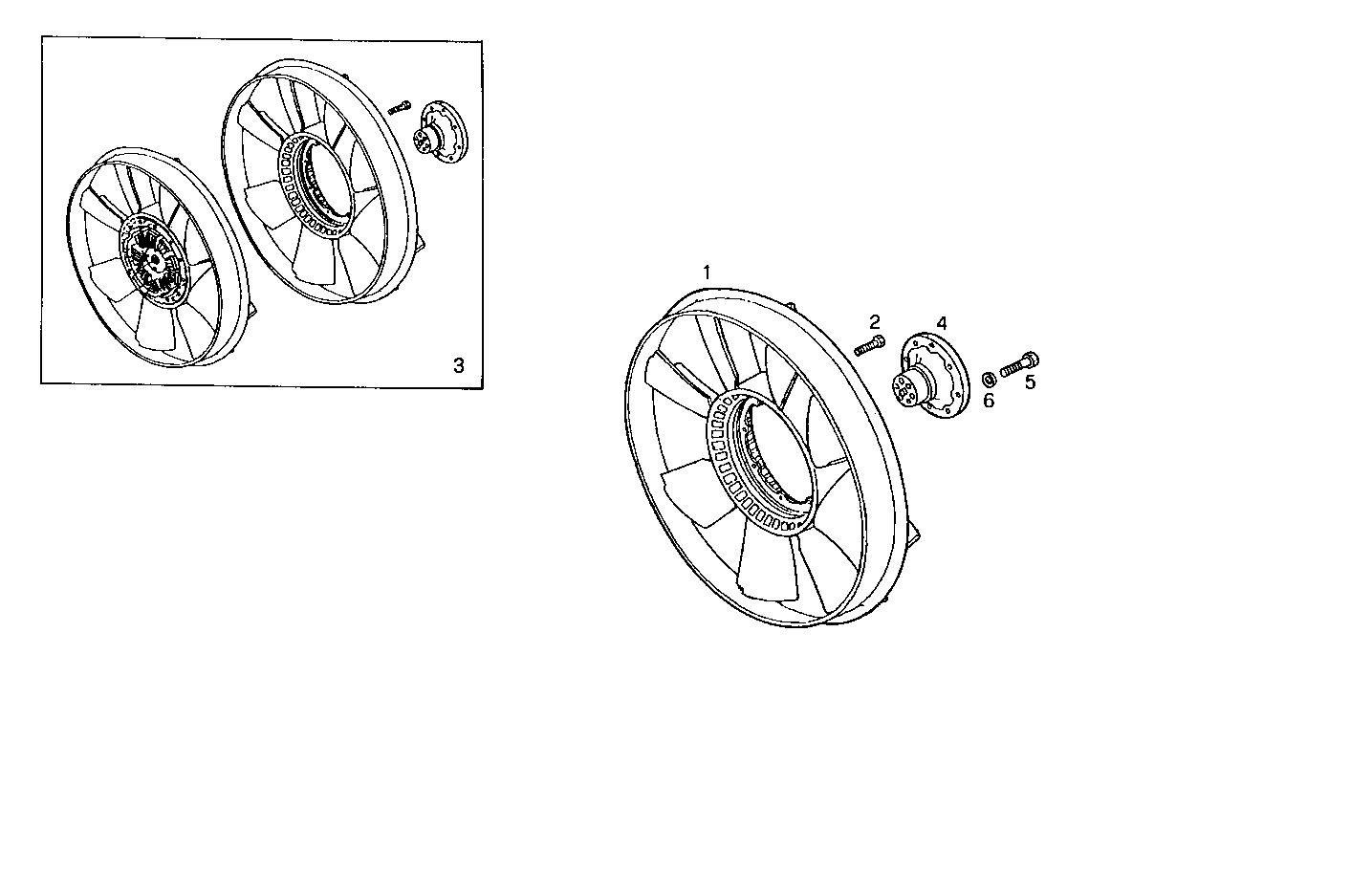

A08100007 VISCOSTATIC PULLER FAN - on water pump
Item | Part number | Description |
---|---|---|
1 | 99450016 | VANE ASSY. EIGHT BLADES |
2 | 16605424 | SCREW M8X16 MM (8.8) |
3 | 99479094 | BLOWER Ø704 MM |
4 | 99487209 | BLOWER INSERT |
5 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
