8210SRC21.21

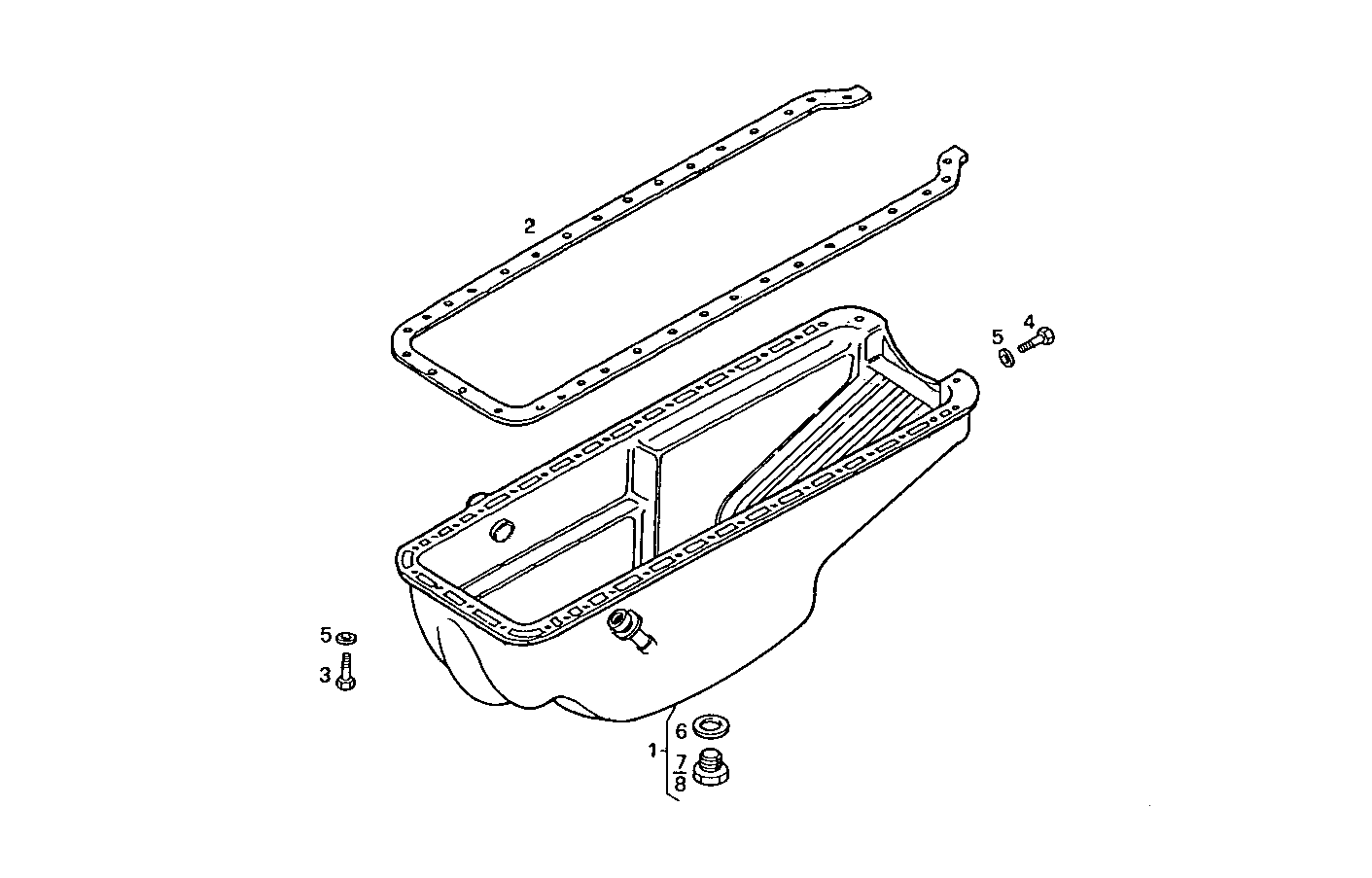

0420.127 OIL SUMP
Item | Part number | Description |
---|---|---|
1 | 4803020 | OIL SUMP ASSY |
2 | 4791426 | OIL SUMP GASKET |
3 | 10929824 | HEXAGON BOLT M10X1,25X25 MM |
4 | 10923624 | SCREW |
5 | 17090174 | SPRING WASHER Ø10X20 MM |
6 | 17282181 | O-RING Ø21,8 MM SP=2,6 MM |
7 | 4847102 | THREADED PLUG |
8 | 98491299 | THREADED PLUG M22X1,5 |
