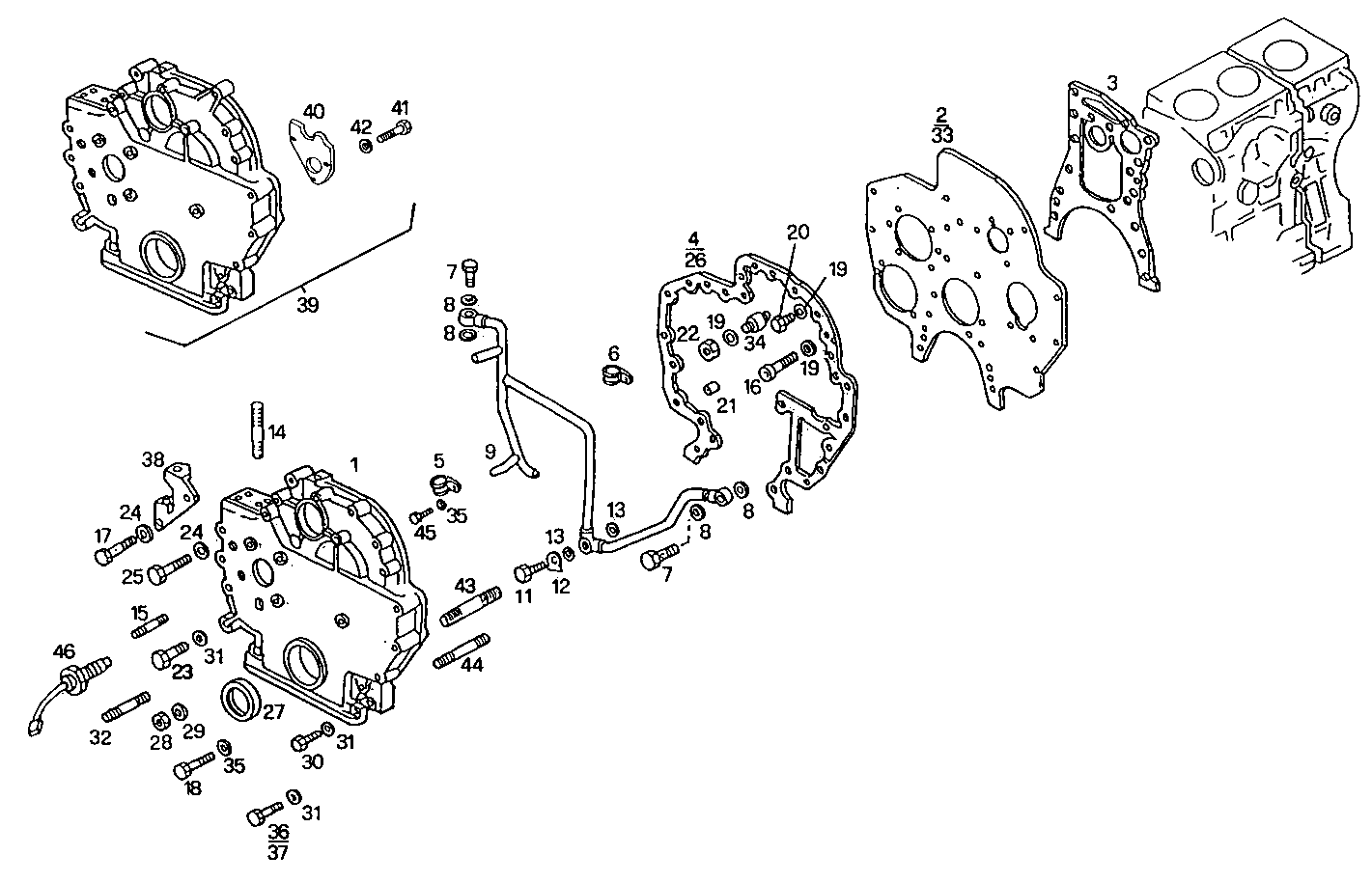

| Item |
Part number |
Description |
|
1 |
500302069 |
FRONT C.CASE COVER ASSY REAR [up to 438825] |
|
2 |
99450902 |
PLATE |
|
3 |
4679630 |
FLAT ENGINE GASKET |
|
4 |
99450903 |
FLAT ENGINE GASKET |
|
5 |
852410 |
FASTENING BRACKET |
|
6 |
4656139 |
FASTENING BRACKET |
|
7 |
4707984 |
SCREW CONNECTOR |
|
8 |
10262760 |
SEAL GASKET Ø8,2 MM |
|
9 |
500302886 |
HYDRAULIC LINE [from 419250] |
|
11 |
4679620 |
SCREW CONNECTOR |
|
12 |
852409 |
LOCKING PLATE Ø10,5 MM |
|
13 |
10284460 |
SEAL GASKET Ø10X16 MM |
|
14 |
13449424 |
STUD M10X15X22 |
|
15 |
13552521 |
STUD M12X1,25X35 MM |
|
16 |
14307430 |
SOCKET-HEAD SCREW M10X1,25X25 MM |
|
17 |
16606524 |
HEXAGON BOLT M8X70 MM |
|
18 |
11343724 |
HEXAGON BOLT M10X70 MM |
|
19 |
17090274 |
WASHER Ø10X20 MM |
|
20 |
15970733 |
HEXAGON BOLT M10X1,25X25 MM |
|
21 |
10837810 |
DOWEL PIN Ø12 MM |
|
22 |
17038221 |
HEXAGON NUT M10 |
|
23 |
16606424 |
HEXAGON BOLT M8X65 MM |
|
24 |
17094914 |
WASHER 8x16 |
|
25 |
16045124 |
HEXAGON BOLT M8X95 |
|
26 |
98476488 |
FLAT ENGINE GASKET [up to 438825] |
|
27 |
98494984 |
SHAFT SEAL CORCOS |
|
28 |
17038521 |
HEXAGON NUT M12X1,5 |
|
29 |
12646901 |
WASHER Ø12X28 MM |
|
30 |
15971721 |
SCREW M10X1,25X95 |
|
31 |
17095104 |
WASHER Ø10X21X2 MM |
|
32 |
13453721 |
STUD M10X25X30 |
|
33 |
99430209 |
PLATE [up to 438825] |
|
34 |
13449330 |
STUD M10X15X20 MM |
|
35 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
36 |
15971424 |
HEXAGON BOLT M10X80 MM |
|
37 |
15972424 |
HEXAGON BOLT M10X1,25X130 MM |
|
38 |
98462000 |
SUPPORT |
|
39 |
99453829 |
FRONT C.CASE COVER ASSY [from 438826] |
|
40 |
99435080 |
SUPPORT [from 438826] |
|
41 |
16603524 |
SCREW M6X12 MM (8.8) |
|
42 |
17088474 |
WASHER Ø6X12 MM |
|
43 |
98471171 |
STUD |
|
44 |
13552724 |
STUD M12X1,25X24X45 MM |
|
45 |
16042924 |
SCREW M8X1,25X10 MM |
|
46 |
4861291 |
TRANSMITTER |
