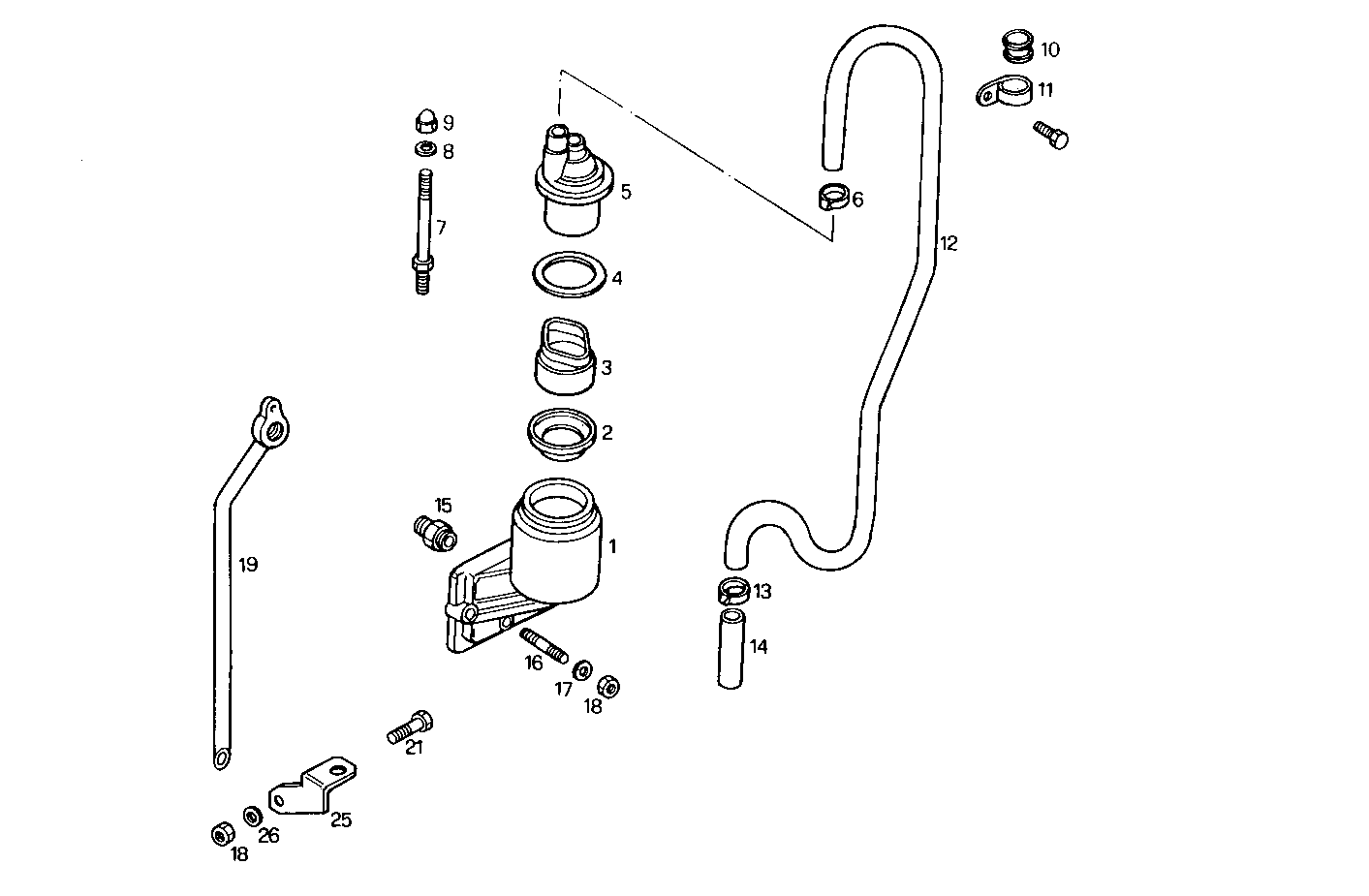

Item |
Part number |
Description |
1 |
4653230 |
SUPPORT |
2 |
4653228 |
RUBBER GASKET |
3 |
4653223 |
BEARING HOUSING |
4 |
4863959 |
FLAT ENGINE GASKET |
5 |
98451443 |
COVER |
6 |
17281981 |
O-RING Ø18,7 MM SP=2,6 MM |
7 |
4816498 |
STUD |
8 |
10260060 |
SEAL GASKET Ø8X12X1 MM |
9 |
16101611 |
NUT |
10 |
4747140 |
RUBBER PAD |
11 |
4760226 |
FASTENING BRACKET |
12 |
98475025 |
BREATHER PIPE |
13 |
17764592 |
CLIP Ø20/32 MM |
14 |
98475468 |
RUBBER SLEEVE Ø20 MM L=130 MM |
15 |
4653233 |
THREADED UNION |
16 |
16729924 |
STUD M8X50 MM |
17 |
17094914 |
WASHER 8x16 |
18 |
17037931 |
HEXAGON NUT M8X1,25 |
19 |
98451351 |
OIL LINE |
21 |
16605424 |
SCREW M8X16 MM (8.8) |
25 |
4760227 |
FASTENING BRACKET |
26 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
