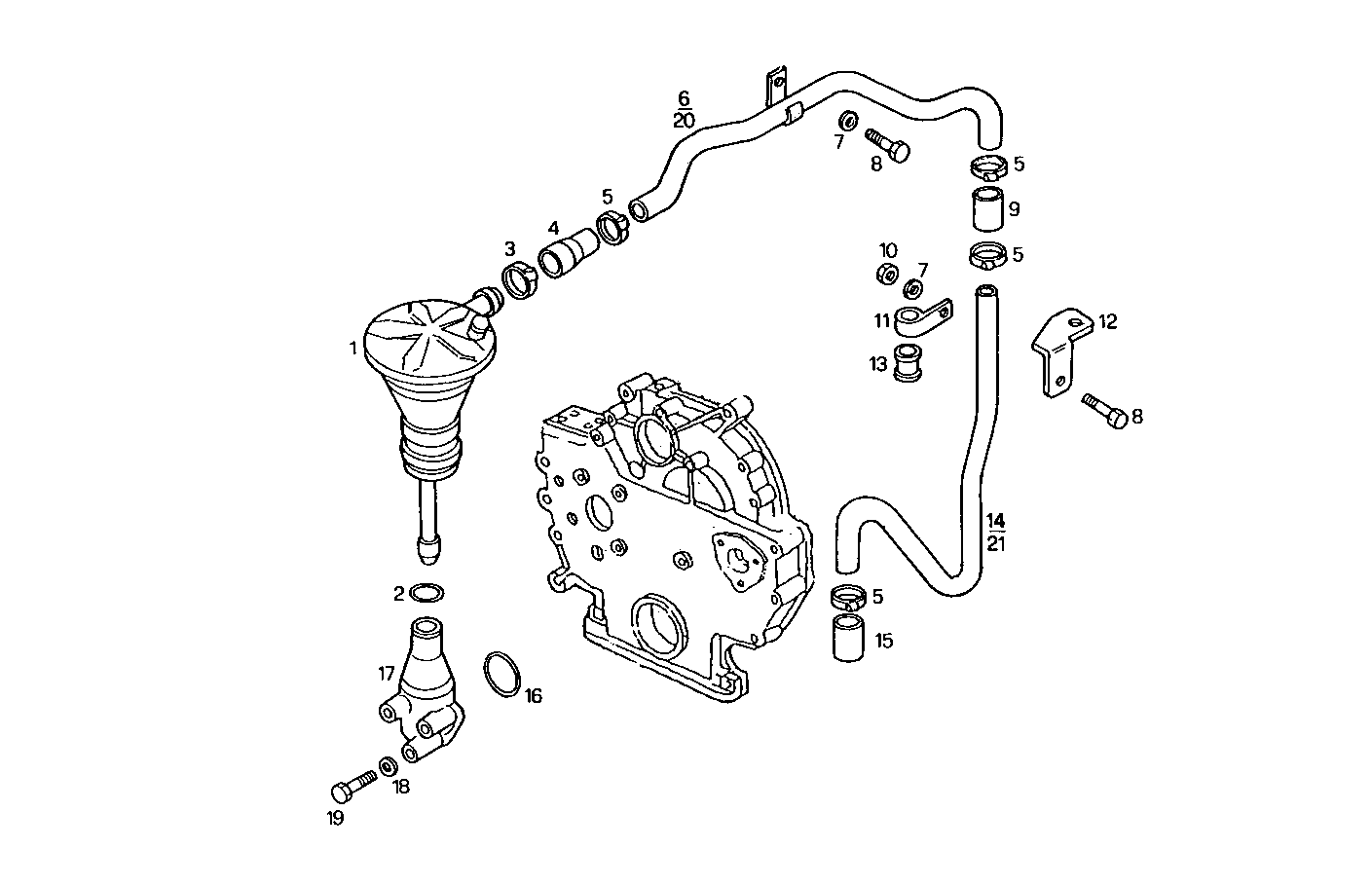

| Item |
Part number |
Description |
|
1 |
61320629 |
BREATHER |
|
2 |
98438032 |
O-RING |
|
3 |
17764692 |
CLIP Ø25/40 MM |
|
4 |
99452230 |
RUBBER SLEEVE Ø50 MM |
|
5 |
17764592 |
CLIP Ø20/32 MM |
|
6 |
99475037 |
BREATHER PIPE Ø15 MM |
|
7 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
8 |
16605424 |
SCREW M8X16 MM (8.8) |
|
9 |
98420478 |
RUBBER SLEEVE |
|
10 |
17037931 |
HEXAGON NUT M8X1,25 |
|
11 |
4760226 |
FASTENING BRACKET |
|
12 |
4760227 |
FASTENING BRACKET |
|
13 |
4747140 |
RUBBER PAD |
|
14 |
99475036 |
BREATHER PIPE Ø15 MM |
|
15 |
98421113 |
RUBBER SLEEVE Ø20 MM L=300 MM |
|
16 |
98465109 |
O-RING |
|
17 |
98481098 |
SUPPORT |
|
18 |
17095014 |
WASHER Ø10X18 MM |
|
19 |
15888824 |
HEXAGON BOLT M10X1,25X70 MM |
|
20 |
99451943 |
BREATHER PIPE [up to 457374] |
|
21 |
99452420 |
BREATHER PIPE [up to 457374] |
