8210SRC21.21

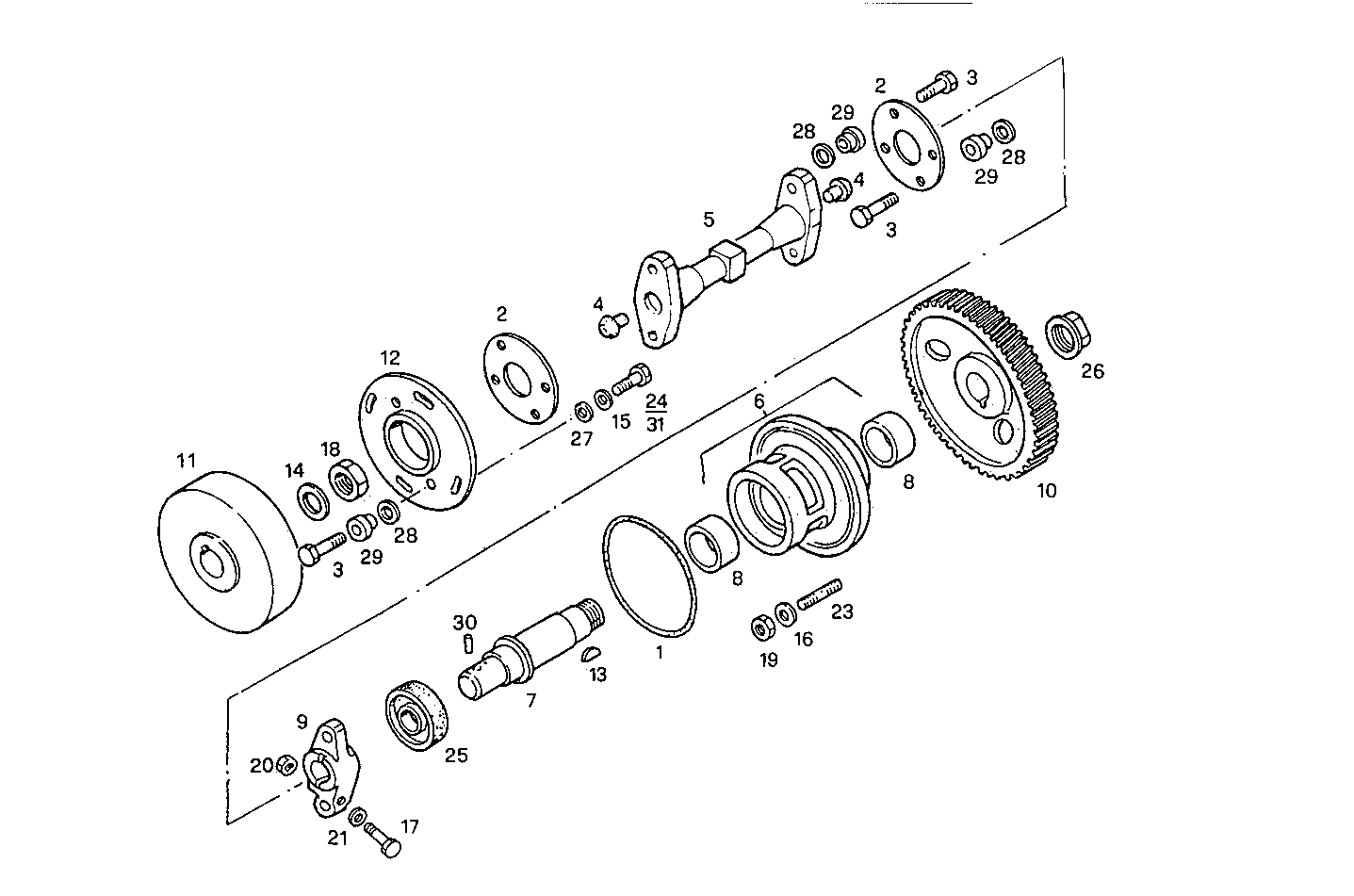

1410.073 INJECTION PUMP DRIVE

Iveco/FPT INJECTION PUMP DRIVE

Item Part number Description
1 17292481 O-RING Ø132,9 MM SP=3,5 MM
2 4882440 RING
3 99462519 HEXAGON BOLT M10X1,25X212 MM
4 98469608 RUBBER PAD
5 98469609 INJECT.PUMP SPIND
6 99446392 SUPPORT BUNDY
7 500300622 INJECT.PUMP SPIND
8 4529701 BEARING BUSH
9 99448170 INJECT.PUMP SLEEVE
10 98418371 INJ.PUMP DRIV.GEA
11 99439042 INJECT.PUMP DAMPE
12 98473909 INJECT.PUMP SLEEVE
13 10206320 KEY 5X7,5 MM
14 10731121 WASHER Ø20,7 MM
15 12626024 SPRING WASHER Ø10X21 MM SP=2 MM
16 17090274 WASHER Ø10X20 MM
17 99450170 HEXAGON BOLT M12X1,25X70 MM
18 16980931 HEXAGON NUT M20X1,5
19 17038221 HEXAGON NUT M10
20 17042931 NUT M12
21 98462135 WASHER
23 13449424 STUD M10X15X22
24 11306924 HEXAGON BOLT M10X1,25X30 MM
25 98494989 SHAFT SEAL Ø45X75 MM SP=10 MM
26 500300648 HEXAGON NUT BORG & BECK
27 17090174 SPRING WASHER Ø10X20 MM
28 4882441 WASHER
29 99447927 BUSH
30 99478033 DOWEL PIN Ø5 MM
31 99482227 HEXAGON BOLT M10X1,25X30 MM
