8210SRC21.21

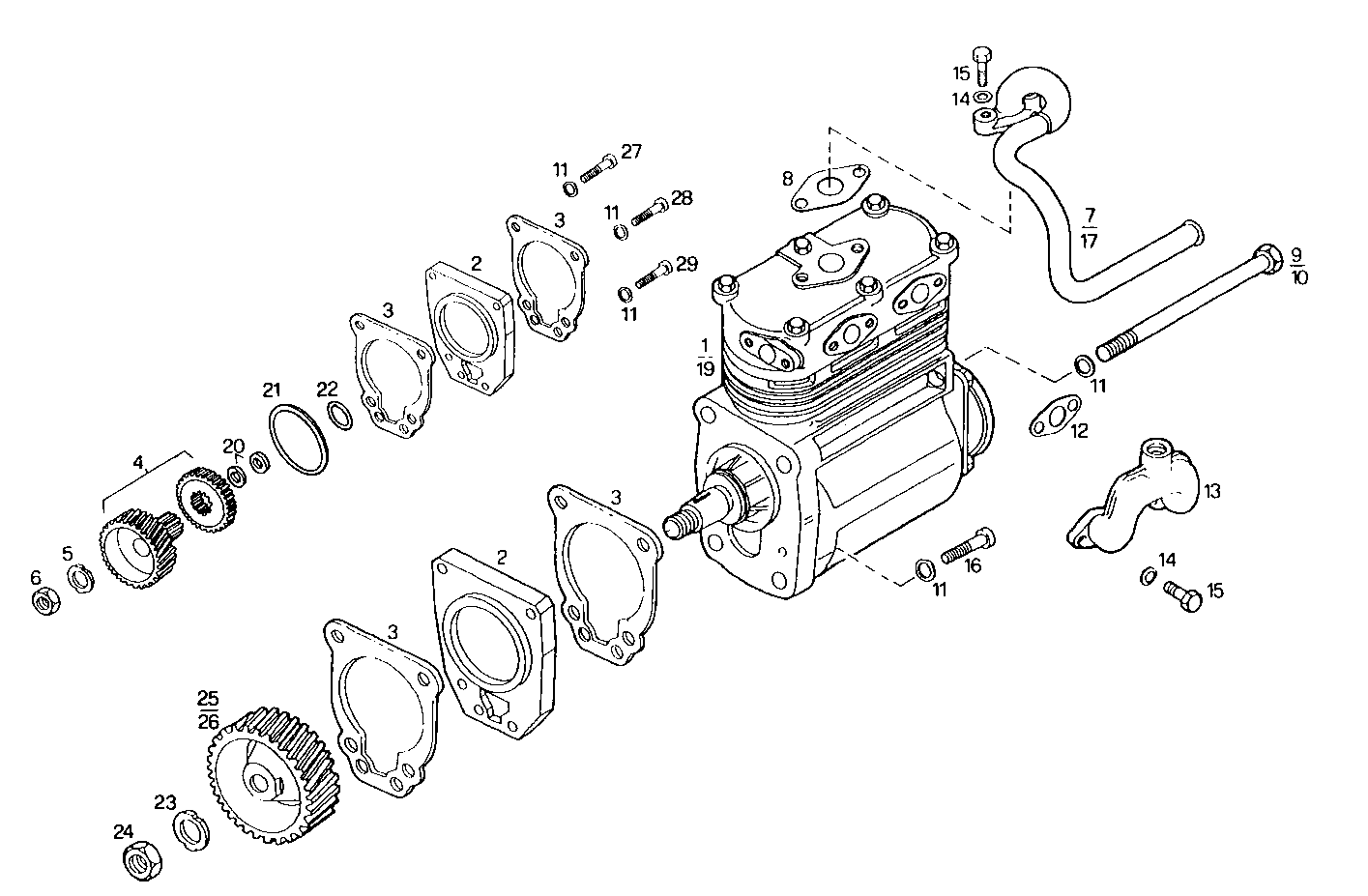

3800.025 AIR COMPRESSOR

Iveco/FPT AIR COMPRESSOR

Item Part number Description
1 4850697 AIR COMPRESSOR ASSY BENDIX [up to 456387]
2 98424166 SPACING BAR
3 4864032 FLAT ENGINE GASKET
4 99449098 COMP. DRIVE GEAR [from 457051]
5 17095814 WASHER
6 16980731 HEXAGON NUT
7 98446078 AIR PIPE/DUCT [from 435939]
8 4863538 FLAT ENGINE GASKET
9 4649239 SCREW
10 98434329 HEXAGON BOLT
11 17090274 WASHER Ø10X20 MM
12 4863497 FLAT ENGINE GASKET
13 4649176 EXHAUST ELBOW
14 17094914 WASHER 8x16
15 16605734 HEXAGON BOLT M8X30 MM
16 14308024 CYLIND-HEAD SCREW
17 98438429 AIR PIPE/DUCT [up to 435938]
19 99476239 AIR COMPRESSOR ASSY BENDIX [from 456388]
20 98416787 SPRING WASHER Ø50X80 MM [from 457051]
21 99449249 SPACER RING Ø64 MM [from 457051]
22 17854576 SPRING LOCKWASHER Ø50 MM
23 4709364 LOCKING PLATE
24 4709365 HEXAGON NUT
25 98418373 COMP. DRIVE GEAR [up to 435938]
26 98424645 COMP. DRIVE GEAR [up to 457050]
27 99446075 HEXAGON BOLT M10X1,25X233 MM [from 455939]
28 99446076 HEXAGON BOLT M10X1,25X212 MM [from 455939]
29 14308224 CYLIND-HEAD SCREW M10X1,25X65 MM
