8210SRC21.30

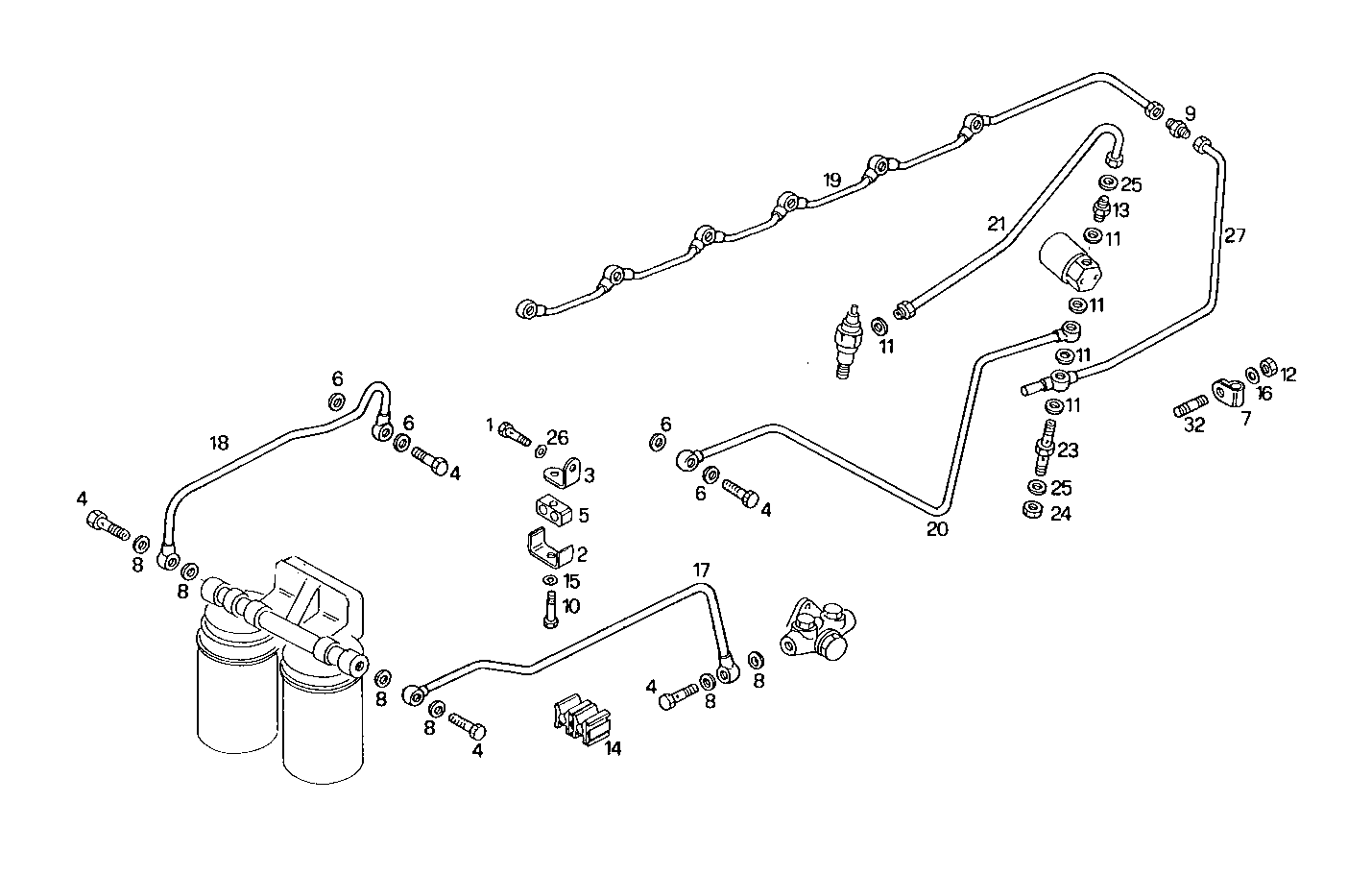

2030.141 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 16605524 HEXAGON BOLT M8X20 MM
2 99447234 CLIP
3 99446949 RETAINER M24X1,5
4 4864083 SCREW CONNECTOR M14X1,5X30 MM
5 4871771 RUBBER LUG
6 4858608 SEAL GASKET dia.14x19,5x1,5
7 17314590 RETAINER Ø6 MM
8 98474308 SEAL GASKET Ø14X22 MM
9 16501519 THREADED UNION Ø6 MM
10 16603824 SCREW M6X25
11 98474305 WASHER Ø10X17 MM SP=2,3
12 17037821 HEXAGON NUT M6X1
13 500302990 THREADED UNION M10X1 - M12X1,5
14 99442644 SPRING CLAMP ASSY
15 17088474 WASHER Ø6X12 MM
16 17088774 WASHER Ø6 MM
17 99446320 FUEL LINE
18 99446321 FUEL LINE
19 98435435 FUEL LINE
20 98435765 FUEL LINE
21 98436153 FUEL LINE
23 98469450 BYPASS VALVE
24 98469675 THREADED PLUG M12X1
25 98474306 WASHER Ø12X20 MM SP=1,9 MM
26 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
27 98484622 FUEL LINE
32 16727624 STUD M6X16 MM
