8210SRC21.30

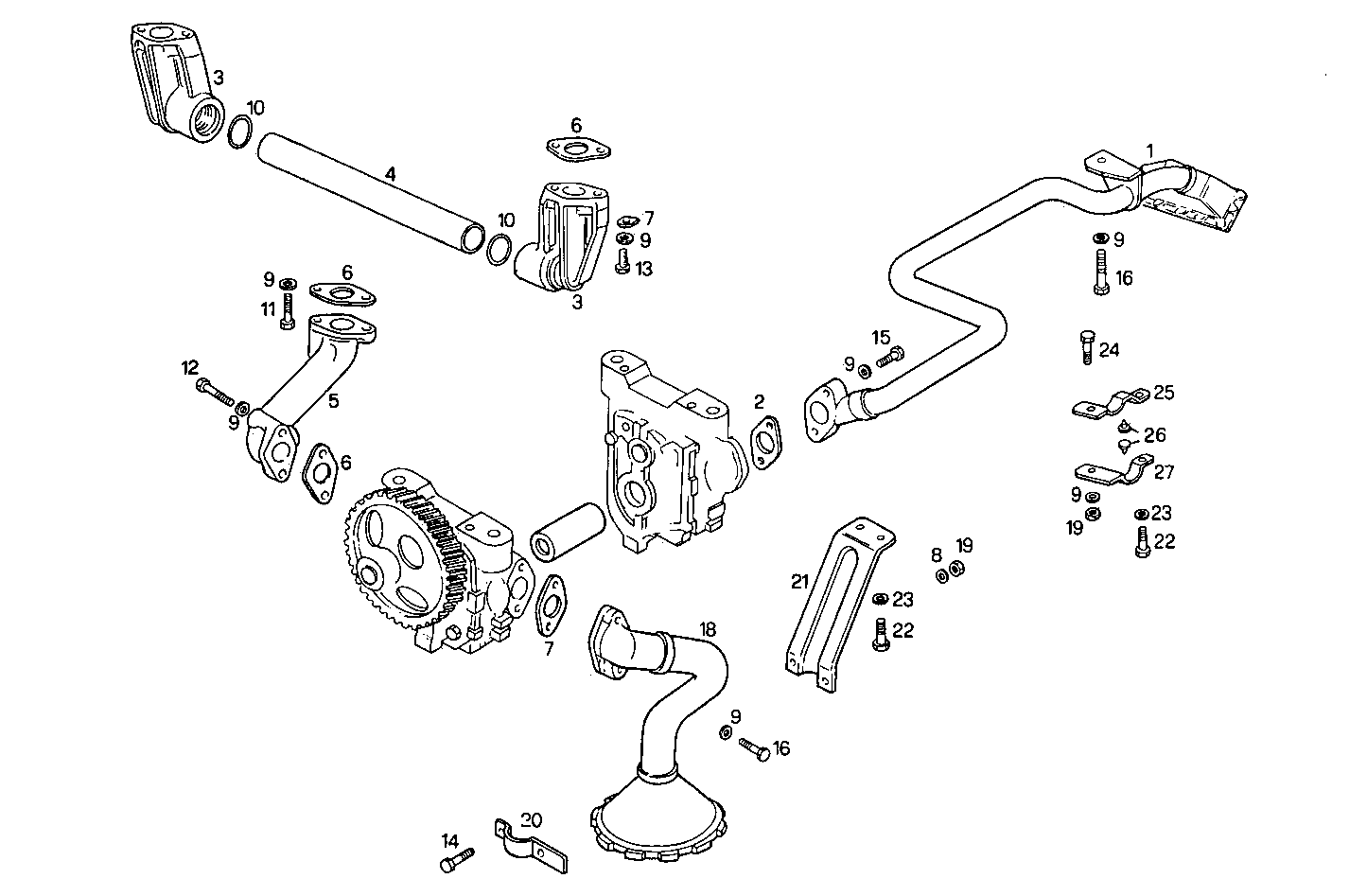

3010.146 LUBE OIL LINES

Iveco/FPT LUBE OIL LINES

Item Part number Description
1 4706072 OIL LINE
2 4864035 FLAT ENGINE GASKET
3 4674329 INTAKE ELBOW
4 4680042 OIL SUCTION PIPE
5 4643388 OIL LINE
6 4864034 FLAT ENGINE GASKET
7 4680043 LOCKING PLATE
8 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
9 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
10 17288681 O-RING Ø24,9 MM SP=3,5 MM
11 16605824 HEXAGON BOLT M8X35 MM
12 16606424 HEXAGON BOLT M8X65 MM
13 16605924 SCREW M8X40 MM
14 16605524 HEXAGON BOLT M8X20 MM
15 16605734 HEXAGON BOLT M8X30 MM
16 16606024 SCREW M8X45 MM
18 1367839 SUCTION STRAINER
19 17087921 NUT
20 4618810 RETAINER
21 1367840 RETAINER
22 15970524 HEXAGON BOLT M10X1,25X20
23 17090274 WASHER Ø10X20 MM
24 16605424 SCREW M8X16 MM (8.8)
25 4706070 RETAINER
26 1366290 RUBBER LUG
27 4706071 RETAINER
