8210SRC21.30

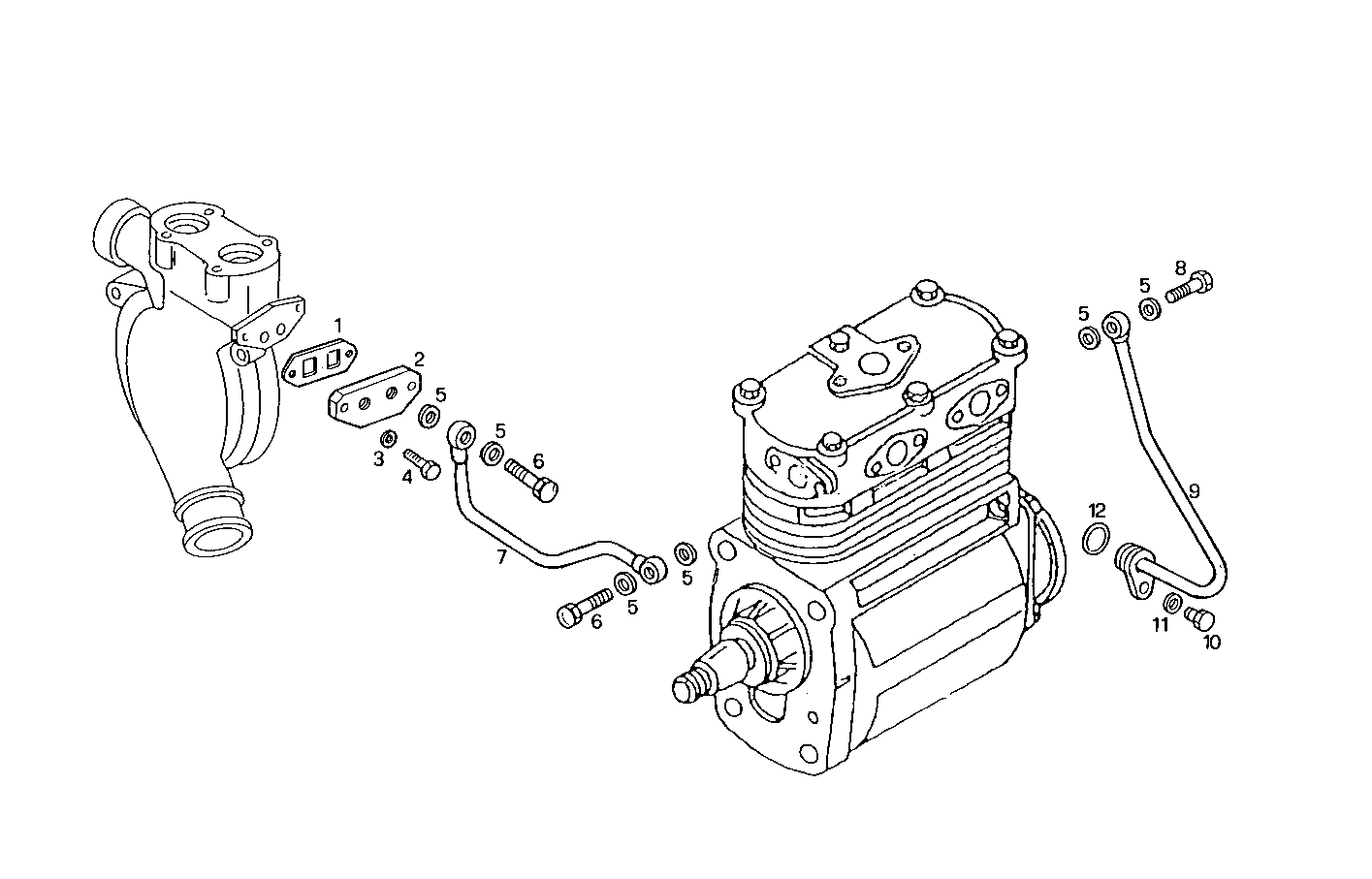

3210.162/02 WATER LINES
Item | Part number | Description |
---|---|---|
1 | 61318823 | FLAT ENGINE GASKET |
2 | 98495062 | SPACING BAR |
3 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
4 | 16690524 | SCREW M8X20 MM (8.8) |
5 | 98474309 | WASHER Ø16X24 MM SP=1,9 MM |
6 | 4864084 | BANJO BOLT M16X1,5 |
7 | 99452316 | WATER PIPE |
8 | 98495066 | THREADED UNION M16X1,5 - M22X1,5 |
9 | 99436231 | WATER PIPE ASSY |
10 | 16043324 | HEXAGON BOLT M8X18 MM |
11 | 12645024 | WASHER Ø8X21 MM |
12 | 98461196 | RUBBER GASKET |
