8210SRC21.30A001

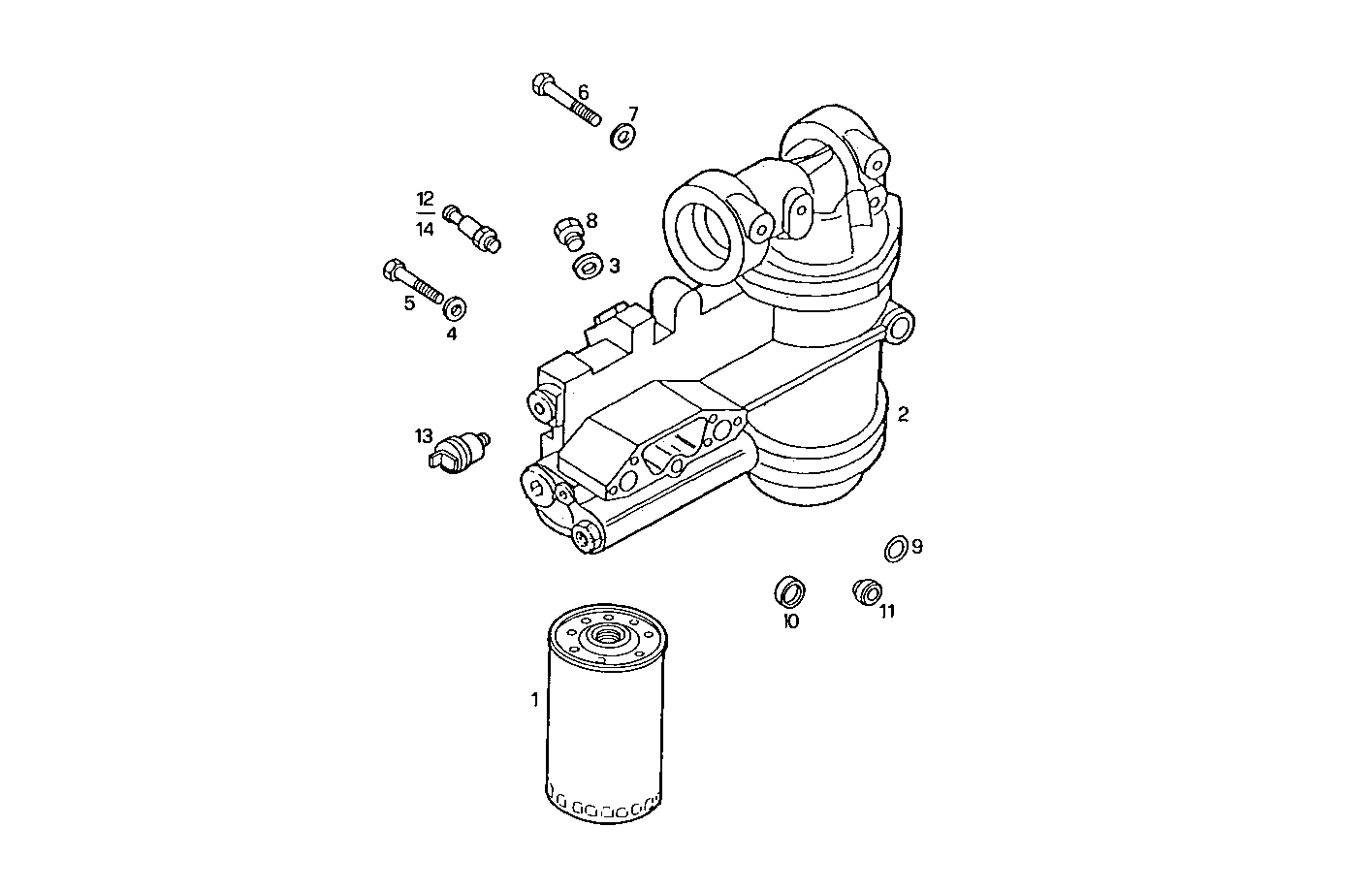

3100.056/01 OIL - WATER HEAT EXCHANGER

Iveco/FPT OIL - WATER HEAT EXCHANGER

Item Part number Description
1 1903629 OIL FILTER CARTRIDGE
2 99431269 HEAT EXCHANGER ASSY
3 4858609 WASHER Ø16X22 MM SP=1,5 MM
4 12626024 SPRING WASHER Ø10X21 MM SP=2 MM
5 15972521 HEXAGON BOLT M10X135 MM
6 16045821 HEXAGON BOLT M8X130 MM
7 17094914 WASHER 8x16
8 16992411 THREADED PLUG M16X1,5
9 17282481 O-RING Ø26,64 MM SP=2,62 MM
10 98469591 CENTERING BUSH
11 4838502 SEAL GASKET
12 98445111 PRESSURE SWITCH BORLETTI
13 99484667 TRANSMITTER
14 98442879 PRESSURE SWITCH SIPEA
