8210SRC21.30A001

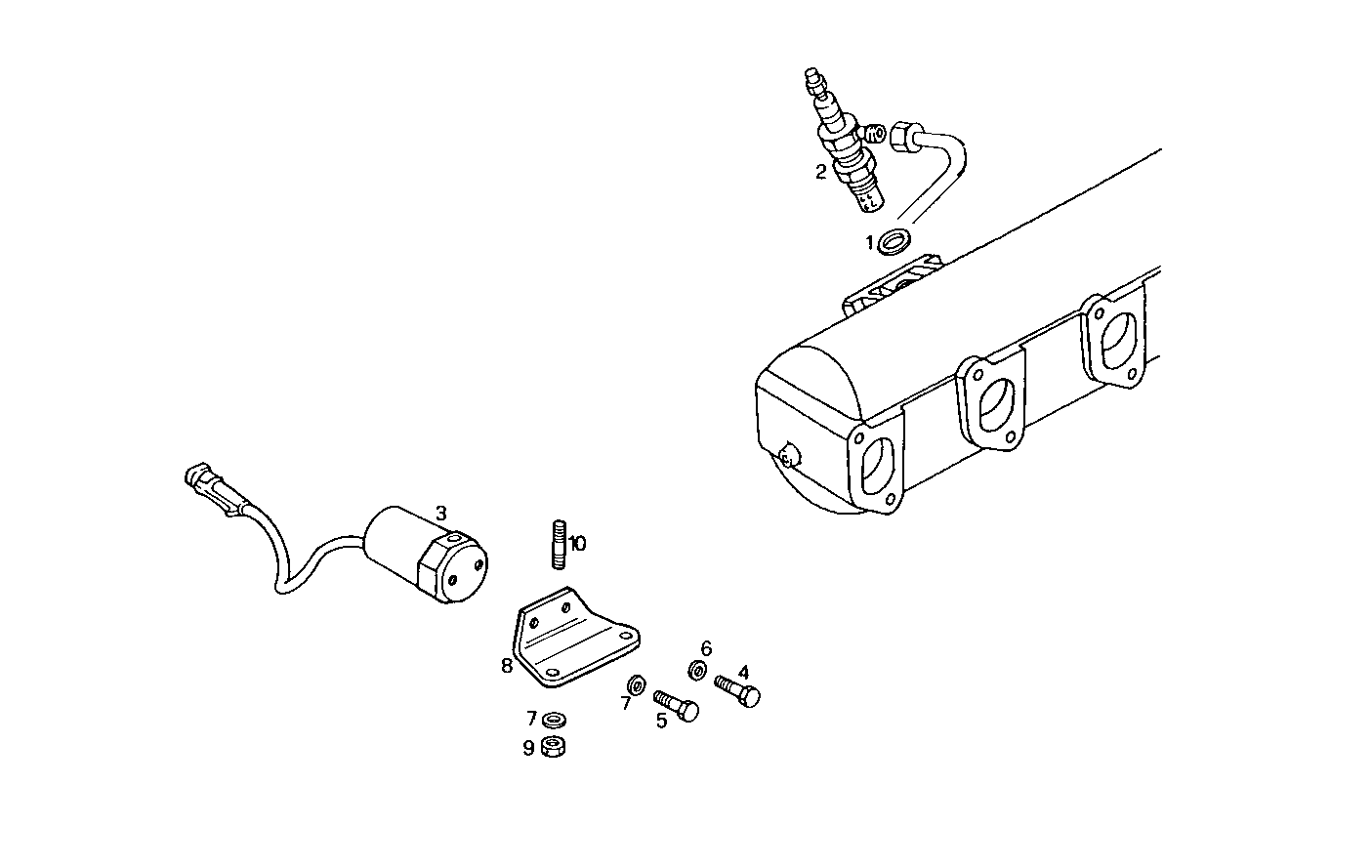

3650.027 THERMO-STARTER
| Item | Part number | Description |
|---|---|---|
| 1 | 98429280 | SEAL GASKET Ø20X26 MM SP=1,5 MM |
| 2 | 99450395 | THERMO-STARTER |
| 3 | 98494898 | ELECT.V.VE.PREHEAT |
| 4 | 16601924 | HEXAGON BOLT M5X10 MM |
| 5 | 16603424 | SCREW M6X10 |
| 6 | 12637801 | WASHER Ø5X10 MM |
| 7 | 17088474 | WASHER Ø6X12 MM |
| 8 | 98435202 | RETAINER |
| 9 | 17037821 | HEXAGON NUT M6X1 |
| 10 | 13540821 | STUD M6X12X14 MM |
