8210SRC21.30A001

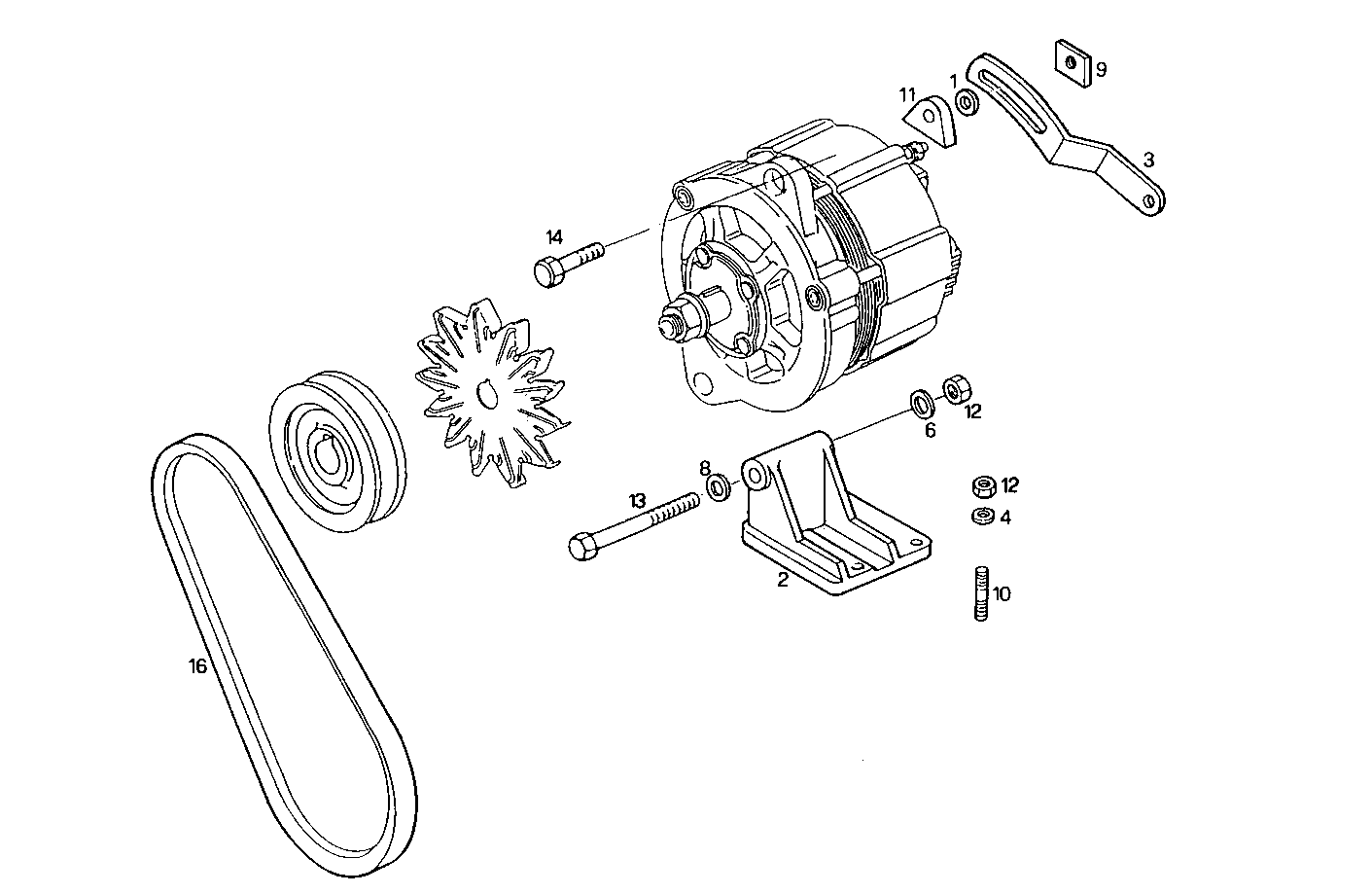

4010.084 MOUNT

Iveco/FPT MOUNT

Item Part number Description
1 17095004 WASHER Ø10X18X2 MM
2 98433409 SUPPORT
3 98433408 BELT TENSIONER
4 11198574 WASHER Ø10X20 MM SP=1,9
6 17090174 SPRING WASHER Ø10X20 MM
8 12626221 WASHER Ø10X25 MM [up to ...]
9 98424121 LOCKING PLATE
10 13449424 STUD M10X15X22
11 98424122 SPACING BAR
12 17038221 HEXAGON NUT M10
13 98418936 HEXAGON BOLT
14 14308024 CYLIND-HEAD SCREW
16 98459454 ALTERNATOR BELT
