8210SRC21.30A001

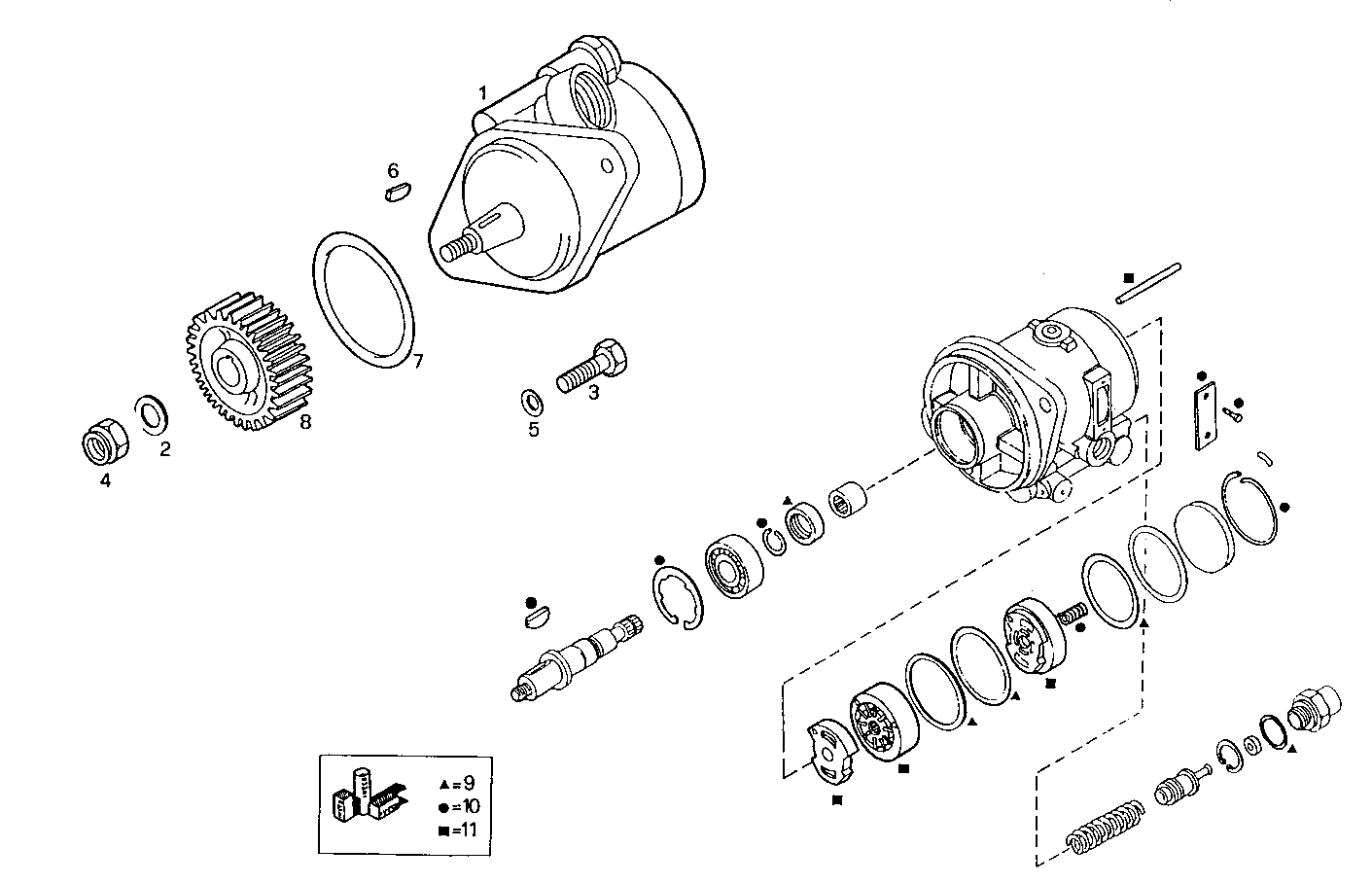

4220.010 POWER STEERING PUMP
Item | Part number | Description |
---|---|---|
1 | 4831152 | OIL PUMP-STEERING ASSY ZF |
2 | 4543031 | WASHER |
3 | 11306921 | SCREW M10X1,25X30 |
4 | 13598811 | CASTLE NUT M10 |
5 | 17090274 | WASHER Ø10X20 MM |
6 | 17221220 | KEY 5X9 MM |
7 | 61317171 | O-RING |
8 | 98418374 | DRIVE GEAR |
9 | 8124665 | KIT-HYDRAULIC PUMP |
10 | 93161354 | KIT-HYDROST.PUMP |
11 | 93161357 | KIT-HYDROST.PUMP |
