8210SRC21.30A001

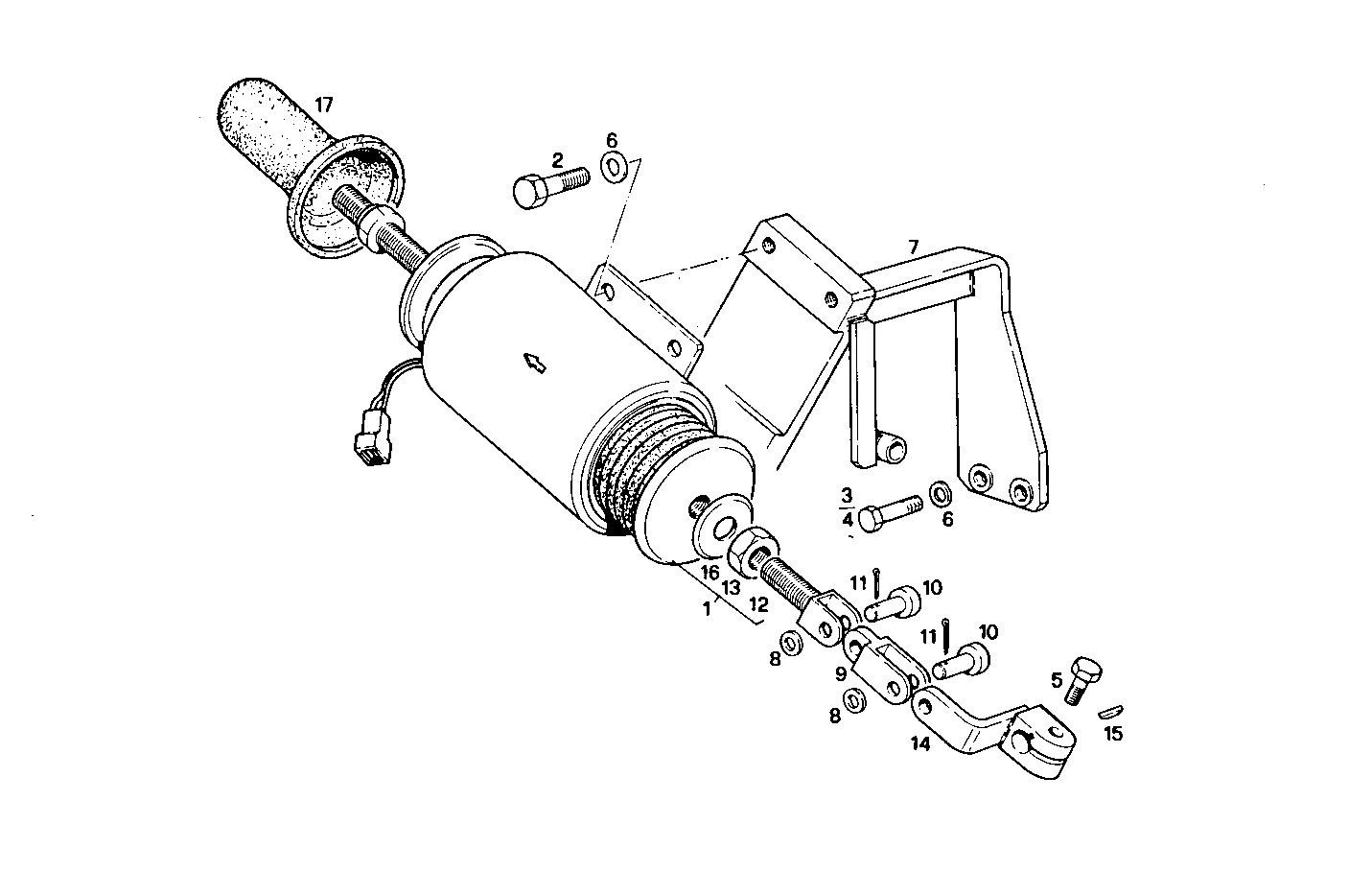

A38440018 STOP SOLENOID - ENERGIZE TO RUN - 24V
| Item | Part number | Description |
|---|---|---|
| 1 | 8112462 | SOLENOID ASSY |
| 2 | 16043624 | SCREW M8X25 |
| 3 | 16689624 | HEXAGON BOLT M6X40 MM (8.8) |
| 4 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
| 5 | 16602124 | SCREW M5X16 MM |
| 6 | 17088474 | WASHER Ø6X12 MM |
| 7 | 8006296 | SUPPORT |
| 8 | 17094504 | WASHER Ø5,3X10 MM |
| 9 | 8108833 | CLEVIS |
| 10 | 17718411 | PIN Ø5 MM |
| 11 | 16852501 | SPLIT PIN Ø1,6X12 MM |
| 12 | 8012882 | CLEVIS |
| 13 | 17037821 | HEXAGON NUT M6X1 |
| 14 | 8110753 | LEVER |
| 15 | 8101048 | KEY 3X5X12,5 |
| 16 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 17 | 8111523 | PROTECTIVE HOOD |
