Catalogue Menu
8210SRC21.31

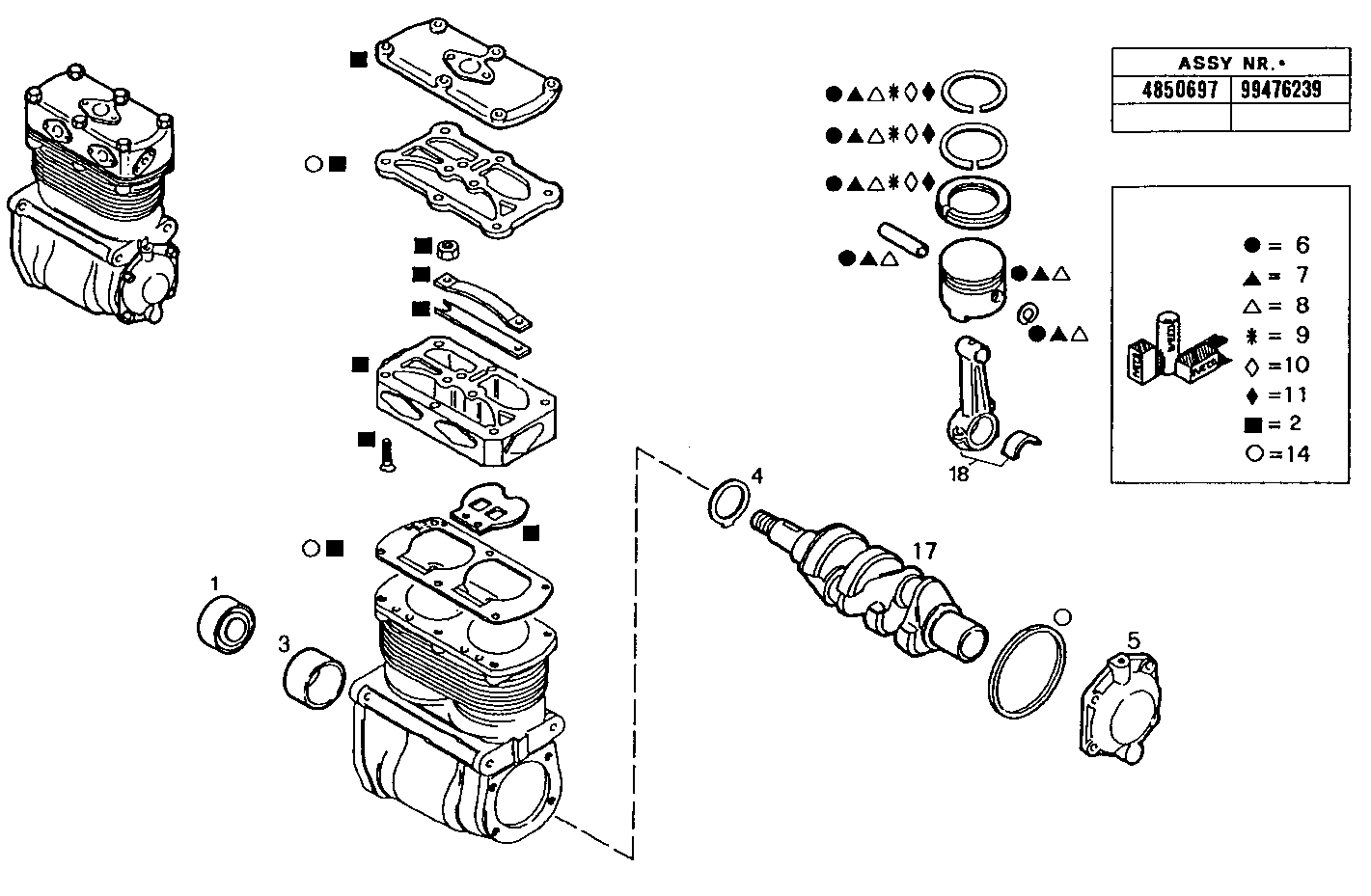

3830.015 AIR COMPRESSOR (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 7980955 | WASHER |
| 2 | 93161842 | KIT-AIR COMPRESSOR |
| 3 | 79098371 | BUSH |
| 4 | 79098372 | RING |
| 5 | 93159347 | COVER |
| 6 | 93161412 | KIT-AIR COMPRESSOR Ø82 MM |
| 7 | 93161413 | KIT-AIR COMPRESSOR Ø82,2 MM |
| 8 | 93161414 | KIT-AIR COMPRESSOR Ø82,5 MM |
| 9 | 93161415 | KIT-AIR COMPRESSOR Ø82 MM |
| 10 | 93161416 | KIT-AIR COMPRESSOR Ø82,2 MM |
| 11 | 93161417 | KIT-AIR COMPRESSOR Ø82,5 MM |
| 14 | 93161411 | KIT-AIR COMPRESSOR |
| 17 | 93190964 | COMPR.CRANKSHAFT |
| 18 | 93190969 | COMPRESS.CONN.ROD ASSY |
